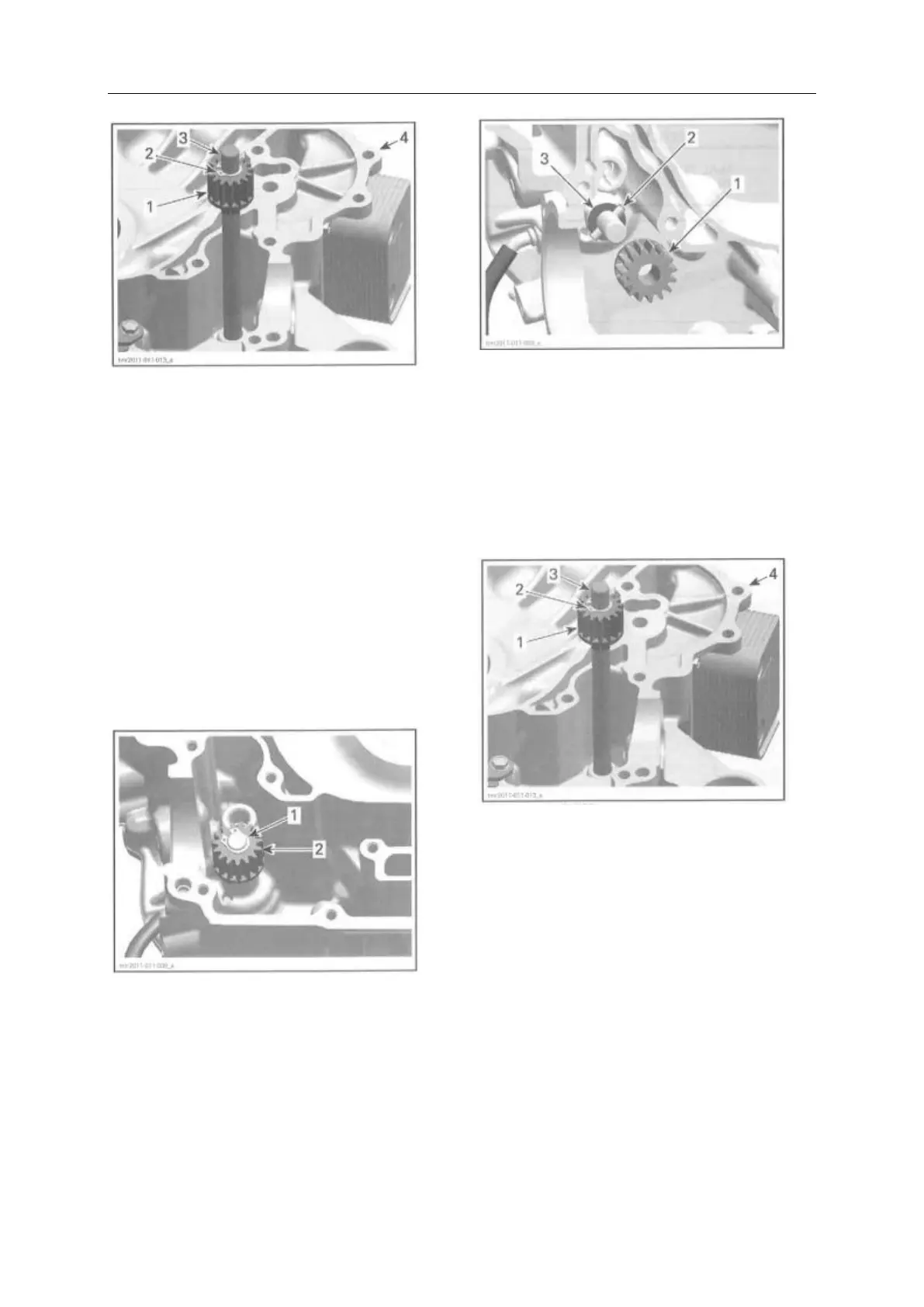

CRANKCASE PTO SIDE
1. Water pump Intermediate drive gear
2. Circlip
3. Water pump intermediate shaft
4. Crankcase PTO side
Water Pump Drive Gear
See BOTTOM subsection,
Water Pump Gears Removal
Water Pump Gear
1. Remove circlip retaining water pump gear and
discard it.
CRANKCASE MAG SIDE
1. Circlip
2. Water pump gear
2. Remove the following parts
- Water pump gear
- Needle pin
- Thrust washer.
CRANKCASE MAG SIDE
1. Water pump gear
2. Needle pin
3. Thrust Washer
Water Pump Intermediate Drive Gear
1. Remove clrclip retaining water pump
intermediate drive gear and discard it.
CRANKCASE PTO SIDE
1. Water pump intermediate drive gear
2. Circlip
3. Water pump intermediate shaft
4. Crankcase PTO side
2. Remove the following parts:
- Water pump intermediate drive gear
- Needle pin. .
Water Pump Drive Gear
See BOTTOM END subsection.
Water Pump Gears Installation
Water Pump Gear
Install the following parts on water pump shaft.
- Thrust washer
