- Needle pin
- Water pump gear.
NOTICE A missing thrust washer will cause a
leaking rotary seal.

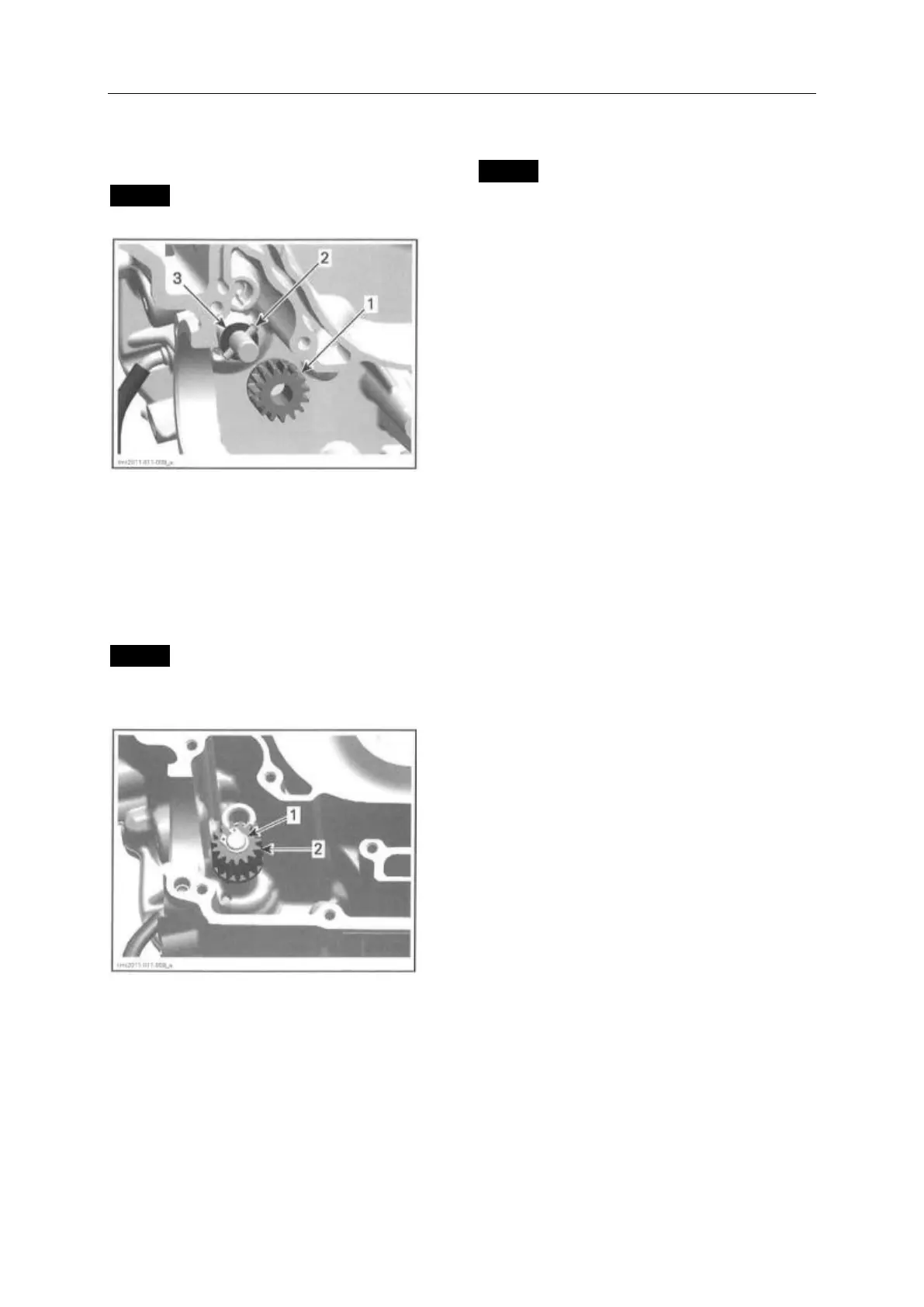

1. Water pump gear
2. Needle pin
3. Thrust washer
NOTE: Ensure water pump gear snaps properly
onto needle pin.
Install NEW circlip to retain water pump gear.
NOTICE Never use the circlip a second time.
Always install a NEW one.
1.Circlip
2. Water pump gear
Water Pump Intermediate Drive Gear
Install the following parts on water pump
intermediate shaft.
- Needle pin
- Water pump intermediate drive gear.
Install NEW circlip to retain water pump
intermediate drive gear.
NOTICE Never use the circlip a second time.
Always install a NEW one.
Water Pump Drive Gear
See BOTTOM END subsection.
