3. ENGINE
3-
PROCEDURES

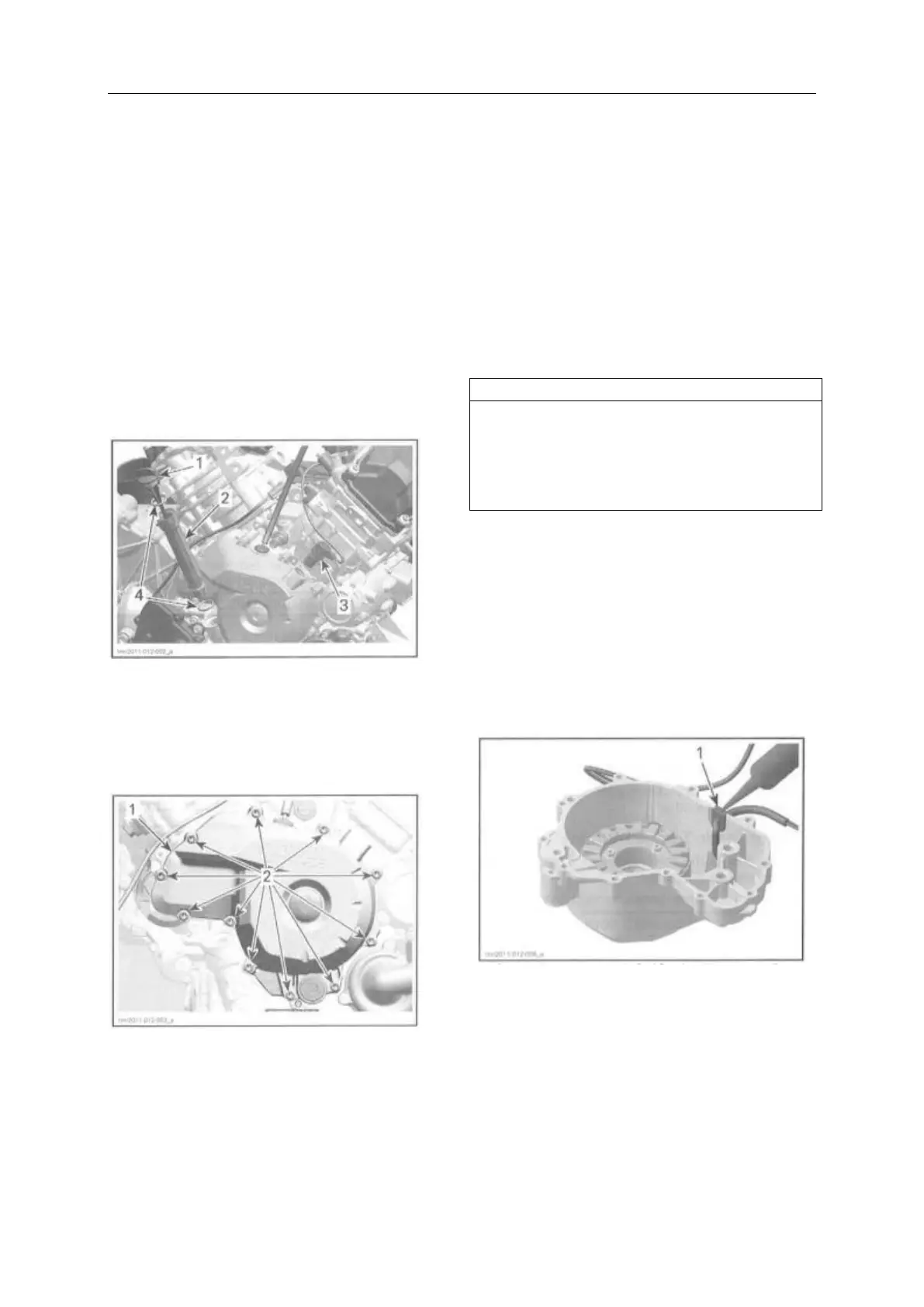

MAGNETO COVER
Magneto Cover Access
Remove fuel tank, refer to FUEL TANK AND
FUEL PUMP
Magneto Cover Removal
Drain engine oil (refer to PERIODIC
MAINTENANCE PROCDURES subsection).
Remove crankshaft position sensor (CPS) and cut
tie raps.
Remove dipstick and oi1 level tube with 0-rings.
1. Dipstick
2. Oil level tube
3. Crank position sensor (CPS)
4. O-rings
Remove magneto cover retaining screws
1. Magneto cover
2. Retaining crews
Pull out magneto cover.
NOTE: If required, remove stator and harness from
magneto cover.
Magneto Cover Inspection and
Cleaning
Check magneto cover for cracks or other damage.
Replace if necessary.
NOTE: Clean all metal components in a
nonferrous metal cleaner. Use LOCTITE CHISEL
(GAS- KET REMOVER) (P/N413 708 500), or
suitable equivalent.
Wear safety glasses and work in a well
ventilated area when working with strong
chemical products. Also wear suitable
nonabsorbent gloves to protect your
hands.
Magneto Cover Installation
For installation, reverse the removal procedure.
However, pay attention to the following.
NOTE: Install a NEW magneto cover gasket.
Apply DREI BOND SEALING COMPOUND
(P/N420 297 906) on stator cable grommet as
shown in next illustration.
1. Stator cable grommet (apply Drei Bond sealing
compound
Tighten screws using the following sequence
