ODES UTV Desertcross 1000cc-3 - STATOR

3. ENGINE
3-
30

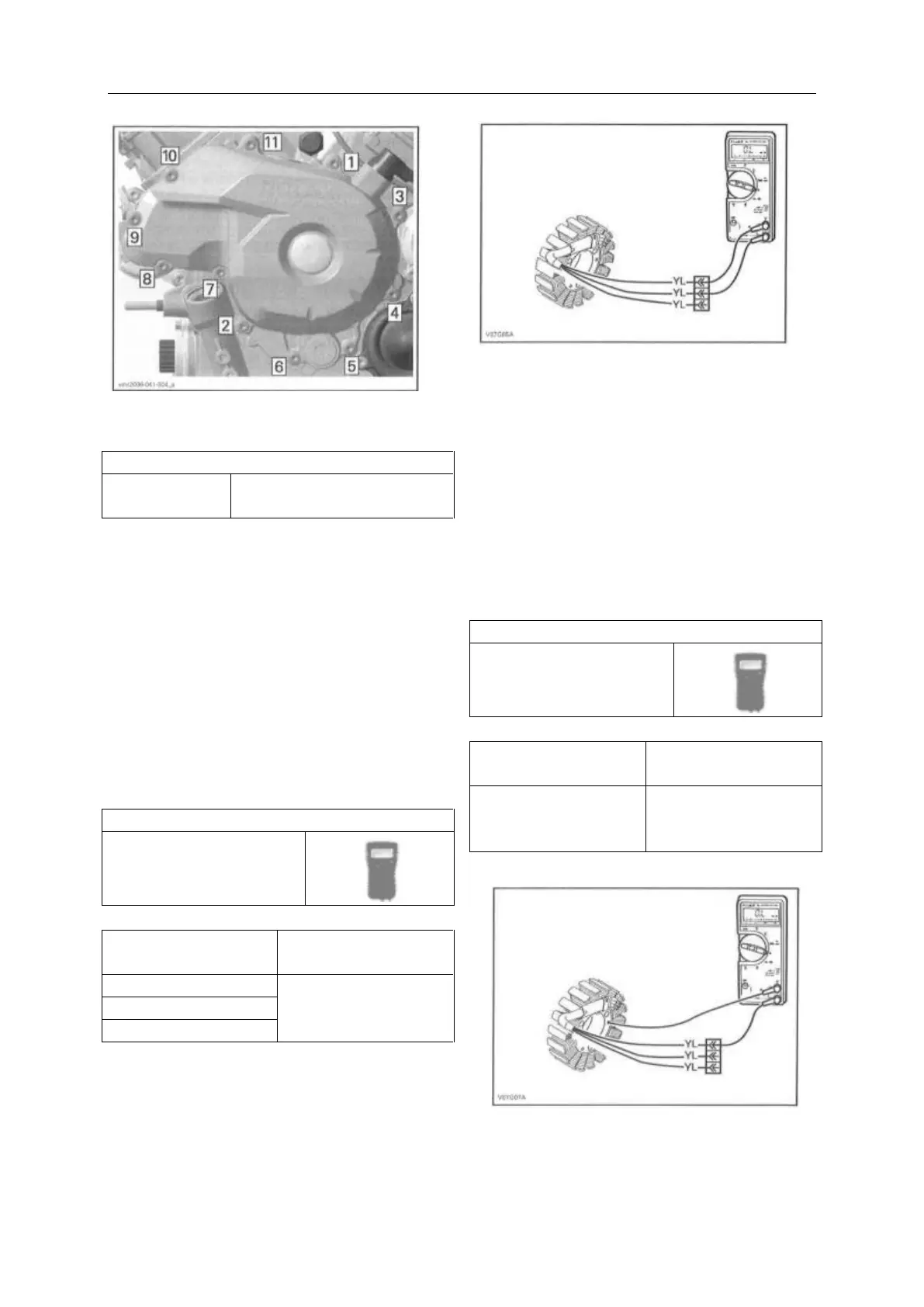

TIGHTENING SEQUENCE
MANGENTO COVER SCREW
Tightening
torque
10N.m±1N.m
（89lbf.in±9lbf.in）
Refill engine with recommended oi1.
STATOR
Stator Connector Access
NOTE: The stator is directly connected to the
voltage regulator/rectifier.
Stator Static Test: Continuity
1. Disconnect the stator connector from the voltage
regulator/rectifier.
2. Check resistance between YELLOW wires.
REQUIED TOOL
FLUKE115
MULTIMETER
(P/N529 035 868)
TERMINAL
RESISTANCE@
20°C(68°F)
1 and2
0.15 - 0.30Ω
1 and3
2 and3
TYPICAL
3. If any reading is out of specification, replace
stator.
4. Re-plug connectors properly.
Stator Static Test: Insulation
1. Disconnect the stator connector from the voltage
regulator/rectifier.
2. Connect multimeter between any YELLOW
wire(on stator connector) and engine ground.
REQUIED TOOL
FLUKE115
MULTIMETER
(P/N529 035 868)
TEST PROBES
RESISTANCE@
20°C(68°F)
Any YELLOW wire
and engine ground
Infinite(open
circuit)
