3. ENGINE
3-
3. If there is a resistance or continuity, the stator
coils and/or the wiring is shorted to ground and
needs to be repaired or replaced.
4. Re-plug connectors properly.
Stator Dynamic Test: AC Voltage
Output
1. Disconnect stator connector at voltage
regulator/rectifier.
2. Start engine.
3. Check AC voltage output as follow:
BACK PROBE TEST
WIRES
(P/N529 036 063)
FLUKE 115
MULTIMETER
(P/N529 035 868)
4. Read voltage as per following table.
5. If voltage is lower than specification, replace
stator.
6. Re-plug connectors properly.

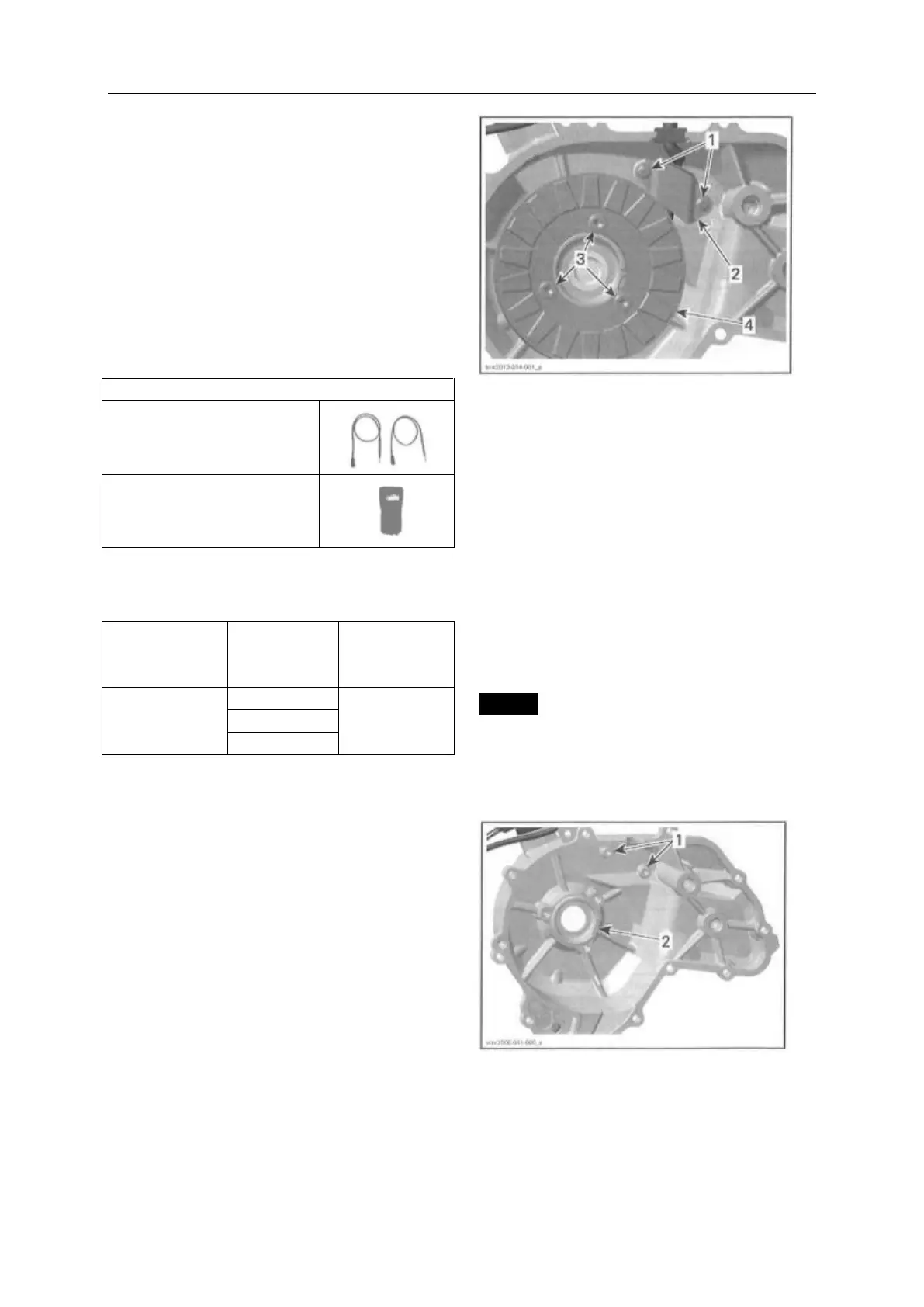

Stator Removal
Remove MAGENTO COVER. See procedure in
this subsection.
Remove screws securing the wire holding strip.
Remove stator retaining screws then the stator.
1. Holding strip screws
2. Wire holding strip
3. Stator retaining screws
4. Stator
Stator Inspection
Check stator windings and insulation for cracks or
other damages. lf damaged replace it.
Check if stator wires are brittle, hard or otherwise
damaged.
Stator Installation
For installation, reverse the removal procedure.
However, pay attention to the following.
NOTICE When installing the stator take care to
route wires properly and install retaining strip.
NOTE: There is only one position for the stator
(notch in the magneto housing cover).
1. Threads for cable holding strip
2. Notch for stator
