ODES UTV Desertcross 1000cc-3 - STARTER DRIVE GEARS

3. ENGINE
3-
35

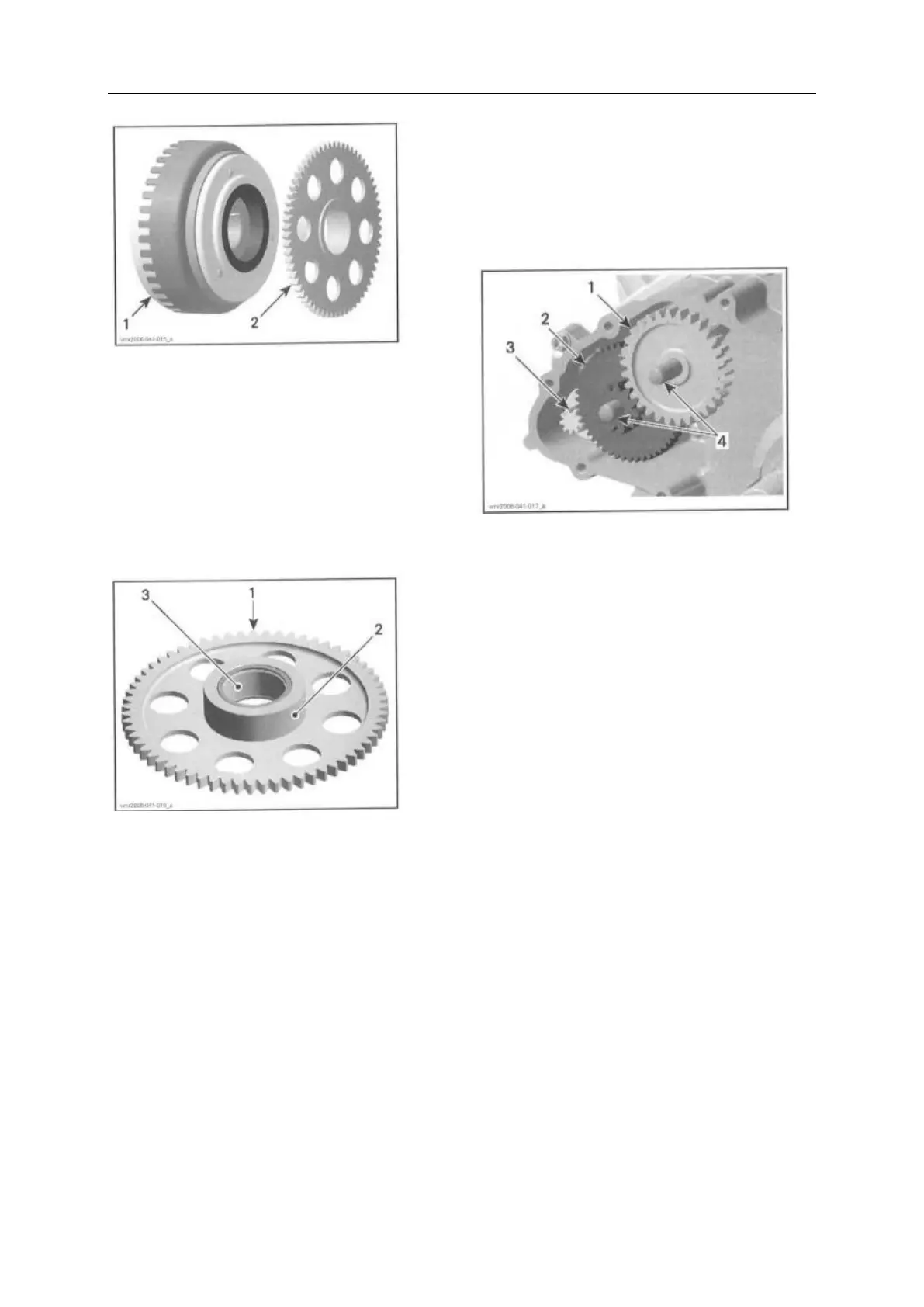

1. Rotor
2. Spfag clutch gear
Sprag Clutch Gear Inspection
Inspect gear, especially teeth and sprag clutch
Collar, for wear and other damage.
Check needle bearing condition. Replace sprag
clutch gear if necessary.
INSPECT
1. Teeth
2. Collar
3. Needle bearing
Sprag Clutch Gear Installation
The installation is the reverse of the removal
Procedure.
NOTE: Apply engine oil on needle bearing and
Collar of sprag clutch gear.
STARTER DRIVE GEARS
Starter Drive Gear Location
The starter drive gears are located on the engine
MAG side behind the magneto cover.
Starter Drive Gear Removal
Remove MAGENTO COVER. See procedure in
this subsection.
Remove location pins, starter double gear and
intermediate gear.
1. Intermediate gear
2. Starter double gear
3. Starter gear
4. Location pins
Starter Drive Gear Inspection
Inspect gears and location pins for wear and dam-
age.
Replace parts as necessary.
Starter Drive Gear Installation
The installation is the reverse of the removal
Procedure. Pay attention to the following details.
Apply LOCTITE 767 (ANTISEIZE
LUBRICANT) (p1N2g3 8oo o7o) on starter gear
before installing the starter double gear.
Apply engine oil on location pins.
