3. ENGINE
3-
52

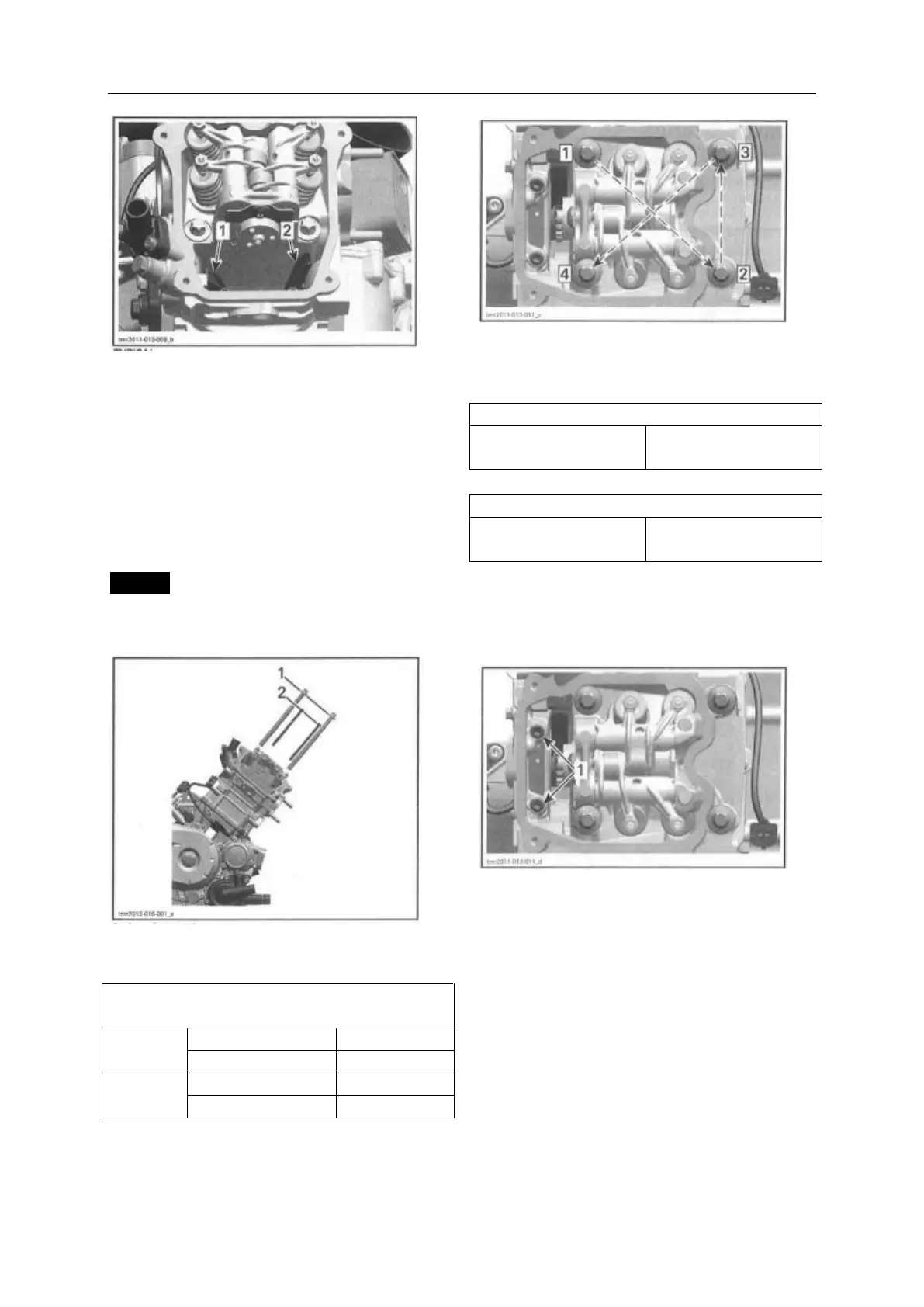

TYPICAL
1. Timing chain guide (tensioner side) mounted in
crankcase
2. Timing chain guide (fixed) between cylinder ,and
cylinder head
Install a NEW cylinder head gasket.
Install cylinder head screws in correct position.
NOTICE Cylinder head screws have different sizes
and lengths.
1. Location no. 1
2. Location no. 2
CYLINDER HEAD SCREW
IDENTIFICATION
800R
engine
Location no. 1
M10×140
Location no. 2
M6×85
1000
engine
Location no. 1
M10×159
Location no. 2
M6×105
Tighten M10 cylinder head screws FIRST as per
following specifications.
TIGHTENCE SEQUENCE-M10 CYLINDER HEAD
SCREWS
M10 CYLINDER HEAD SCREWS
Tightening torque
(step1)
20N·m±1N·m
(15lbf·ft±1 lbf·ft)
M10 CYLINDER HEAD SCREWS
Tightening torque
(step2)
180°＋/－5°
Tighten M6 cylinder head screws as per following
specification.
1. M6 Screws
Check timing chain guide (tensioner side) for
movement.
On cylinder1, install the plenum bracket, refer to
INTAKE MANIFOLD subsection.
