OEG 150 - Buffer Storage Tanks (150-500 L)

35
Buffer storage tanks
150 – 500
7. 1
* if there is one
** if there is one, otherwise freely
available (Rp 1")
L
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Fresh-water, Combined and Buffer Storage Tanks
GB

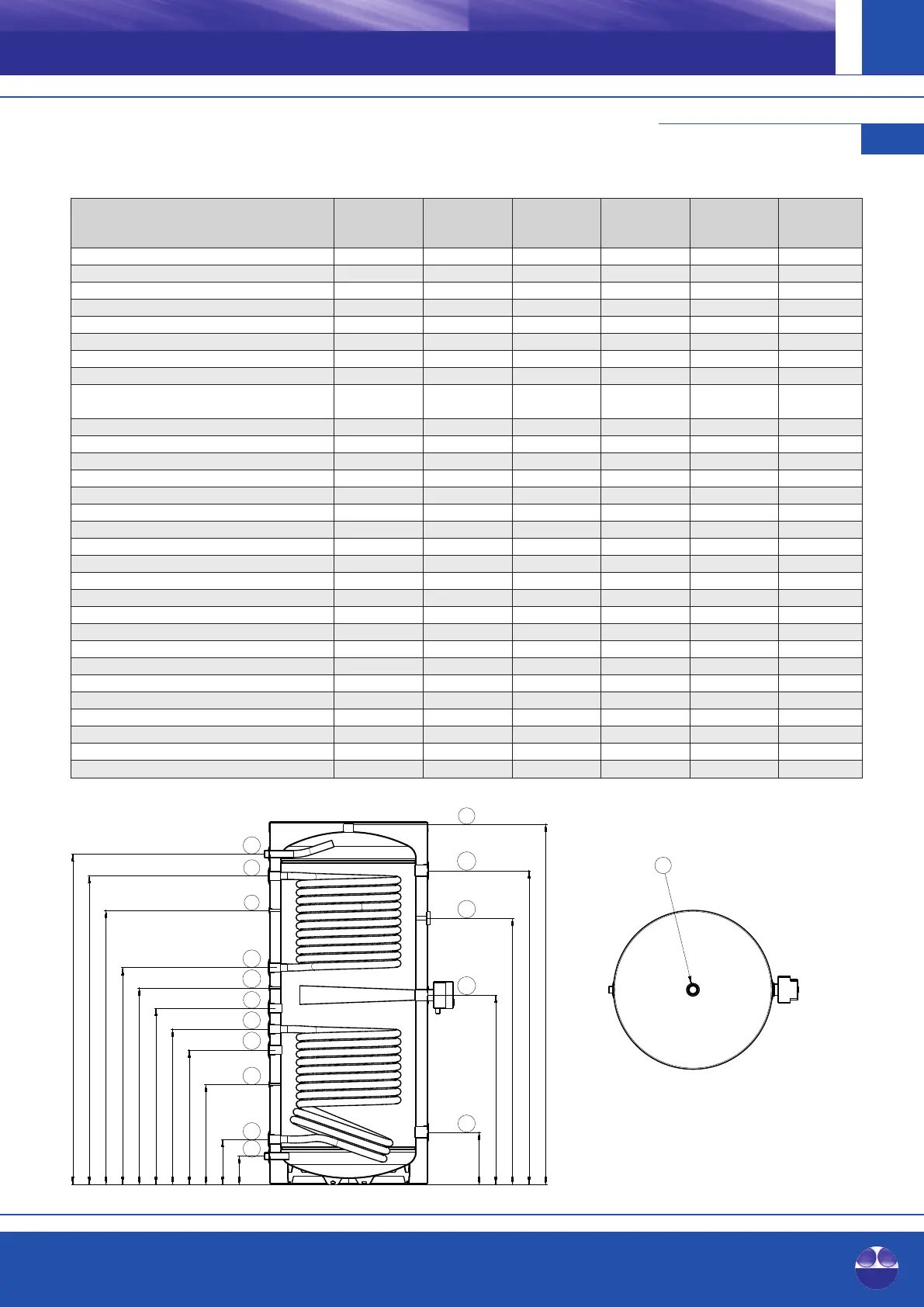

Buffer storage tanks without, with one (-1) or 150 / 150-1 / 200 / 200-1 / 300 / 300-1 / 400 / 400-1 / 500 / 500-1 /
with 2 (-2) smooth-pipe heat exchangers 150-2 200-2 300-2 400-2 500-2
[l] 158 / 157 / 156 206 / 203 / 202 300 / 297 / 296 419 / 415 / 412 516 / 512 / 509
[-] B2 B2 B2 B2 B2
[mm] 1,020 1,265 1,750 1,725 1,770
[mm] 500 500 500 600 650
[mm] 610 610 610 710 760
[mm] 1,170 1,375 1,830 1,865 1,925
[kg] 48 / 60 / 70 60 / 77 / 87 71 / 88 / 100 88 / 119 / 145 96 / 127/ 153
[-] A+ A+ A+ A+ A+
[W] 28 31 36 40 43
[bar] / [°C] 3 / 95 3 / 95 3 / 95 3 / 95 3 / 95
[m²] / [l] 0.77 / 5 1.15 / 7.5 1.15 / 7.5 1.88 / 12.3 1.88 / 12.4
[m²] / [l] 0.63 / 4.2 0.63 / 4.2 0.77 / 5 1.73 / 11.3 1.74 / 11.4
[bar] / [°C] 10 / 130 10 / 130 10 / 130 10 / 130 10 / 130
A [mm] 132 132 132 130 137
B [mm] 207 219 222 210 217
C [mm] 277 415 415 474 481
D [mm] - - - 640 647
E [mm] 468 619 622 740 747
F [mm] - - - 840 847
G [mm] - - - 932 945
H [mm] 542 772 1,217 1,025 1,042
I [mm] 682 878 1,347 1,265 1,317
J [mm] 752 982 1,487 1,465 1,482
K [mm] - - - 1,565 1,587
L [mm] 1,019 / - 1,264 / - 1,749 / - - / 1,695 - / 1,731
M [mm] 792 1,032 1,517 1,485 1,508
N [mm] 682 910 1,423 1,265 1,279
O [mm] 500 689 1,145 895 910
P [mm] 242 242 242 245 252
Real volume according to EN 12897
Fire protection class of insulation according to DIN 4102-1
Total height including insulation
Diameter without insulation
Diameter with insulation
Tilt height
Weight
Energy efficiency class according to EU regulation
no. 812 / 2013
Heat retaining loss according to EN 12897
Storage tank pmax / tmax
Smooth-pipe heat exchanger* bottom surface / volume
Smooth-pipe heat exchanger* top surface / volume
Smooth-pipe heat exchanger* pmax / tmax
Return heat generator (R 1")
Return smooth-pipe heat exchanger ** bottom (Rp 1")
Sensor sleeve (Ø 6 mm)
Freely available (Rp 1")
Flow smooth-pipe heat exchanger** bottom (Rp 1")
Freely available (Rp 1")
Sensor sleeve (Ø 6 mm)
Return smooth-pipe heat exchanger** top (Rp 1")
Sensor sleeve (Ø 6 mm)
Flow smooth-pipe heat exchanger** top (Rp 1")
Flow heat generator (R 1")
Flow heat exchanger (R 1") / ventilation (Rp 1¼")
Freely available (Rp 1½")
Thermometer (Ø 9 mm)
Heating element (Rp 1½")
Freely available (Rp 1½")
