45
Combined storage tanks
500
7.11

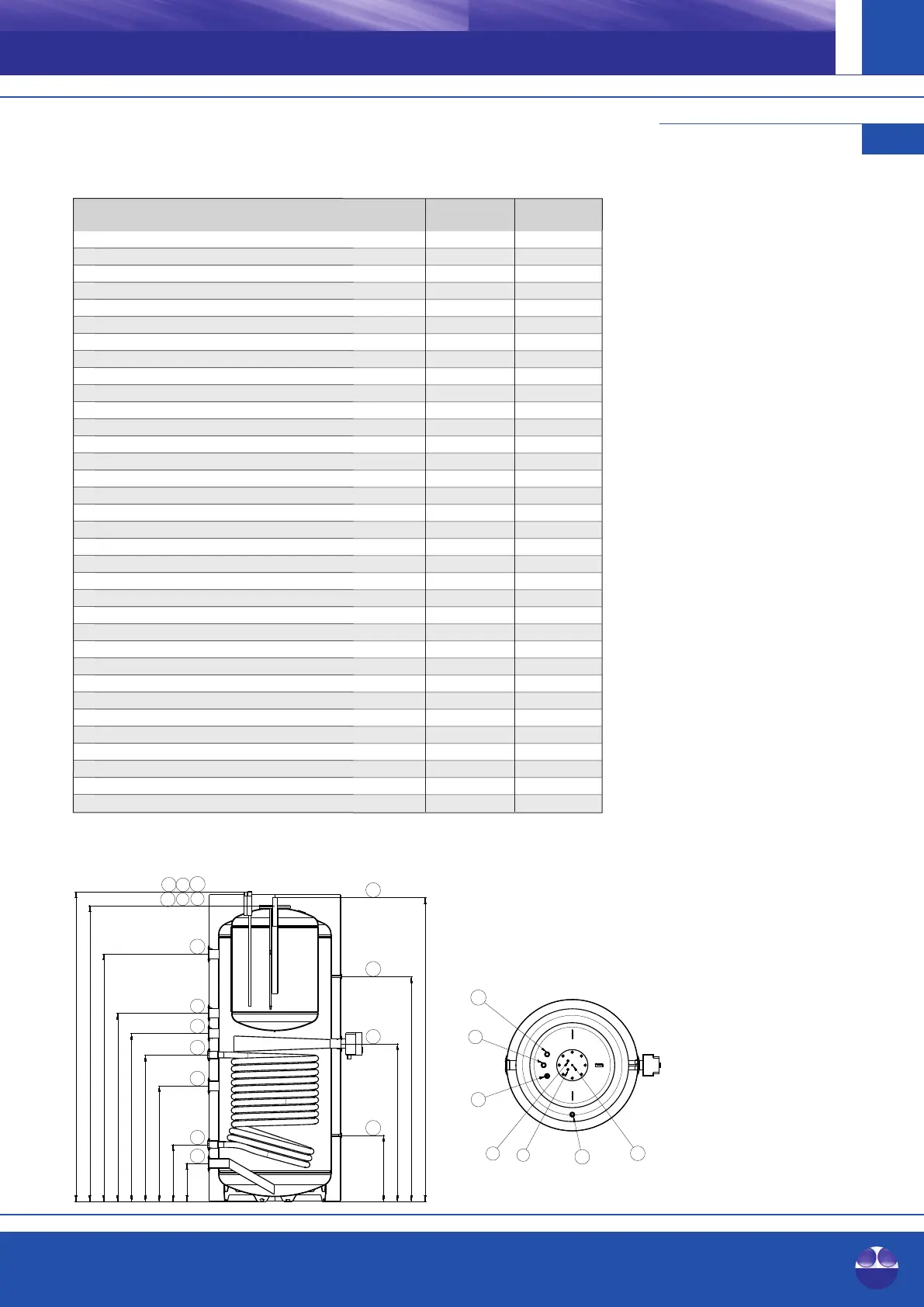

Combined storage tanks 500
Real volume according to EN 12897 [l] 502
Volume DHW tank (part of the real volume) [l] 121
Fire protection class of insulation according to DIN 4102-1 [-] B2
Total height including insulation [mm] 1,790
Diameter without insulation [mm] 650
Diameter with insulation [mm] 760
Tilt height [mm] 1,925
Weight [kg] 165
Energy efficiency class according to EU regulation no. 812/2013 [-] A+
Heat retaining loss according to EN 12897 [W] 43
Output capacity 45°C (storage tanks 65°C, cold water 10°C, no reheating) [l] 236
Performance factor NL following DIN 4708 [-] 3
Buffer tank pmax / tmax [bar] / [°C] 3 / 95
DHW tank pmax / tmax [bar] / [°C] 10 / 95
Smooth-pipe heat exchanger bottom surface / volume [m²] / [l] 2 / 13
Smooth-pipe heat exchanger pmax / tmax [bar] / [°C] 10 / 130
Return heat generator (Rp 1½) A [mm] 221
Return smooth-pipe heat exchanger bottom (Rp 1") B [mm] 329
Freely available (Rp 1½") C [mm] 668
Flow smooth-pipe heat exchanger bottom (Rp 1") D [mm] 846
Freely available (Rp 1½") E [mm] 970
Freely available (Rp 1½") F [mm] 1,088
Flow heat generator (Rp 1½") G [mm] 1,428
Anode connection (M8) H [mm] 1,700
Sensor sleeve DHW tank top (Ø 6 mm) I [mm] 1,700
Sensor sleeve DHW tank bottom (Ø 6 mm) J [mm] 1,700
Cold water connection (R ¾") K [mm] 1,786
Circulation connection (R ¾") L [mm] 1,786
Hot water connection (R ¾") M [mm] 1,786
Ventilation (Rp ½") N [mm] 1,754
Sensor sleeve (Ø 6 mm) O [mm] 1,299
Heating element (Rp 1½") P [mm] 910
Sensor sleeve (Ø 6 mm) Q [mm] 383
K
L
A
B
C
D
E
F
G
H
I
J
M
N
O
P
Q
I
H
J
K
L
M
N
Fresh-water, Combined and Buffer Storage Tanks
