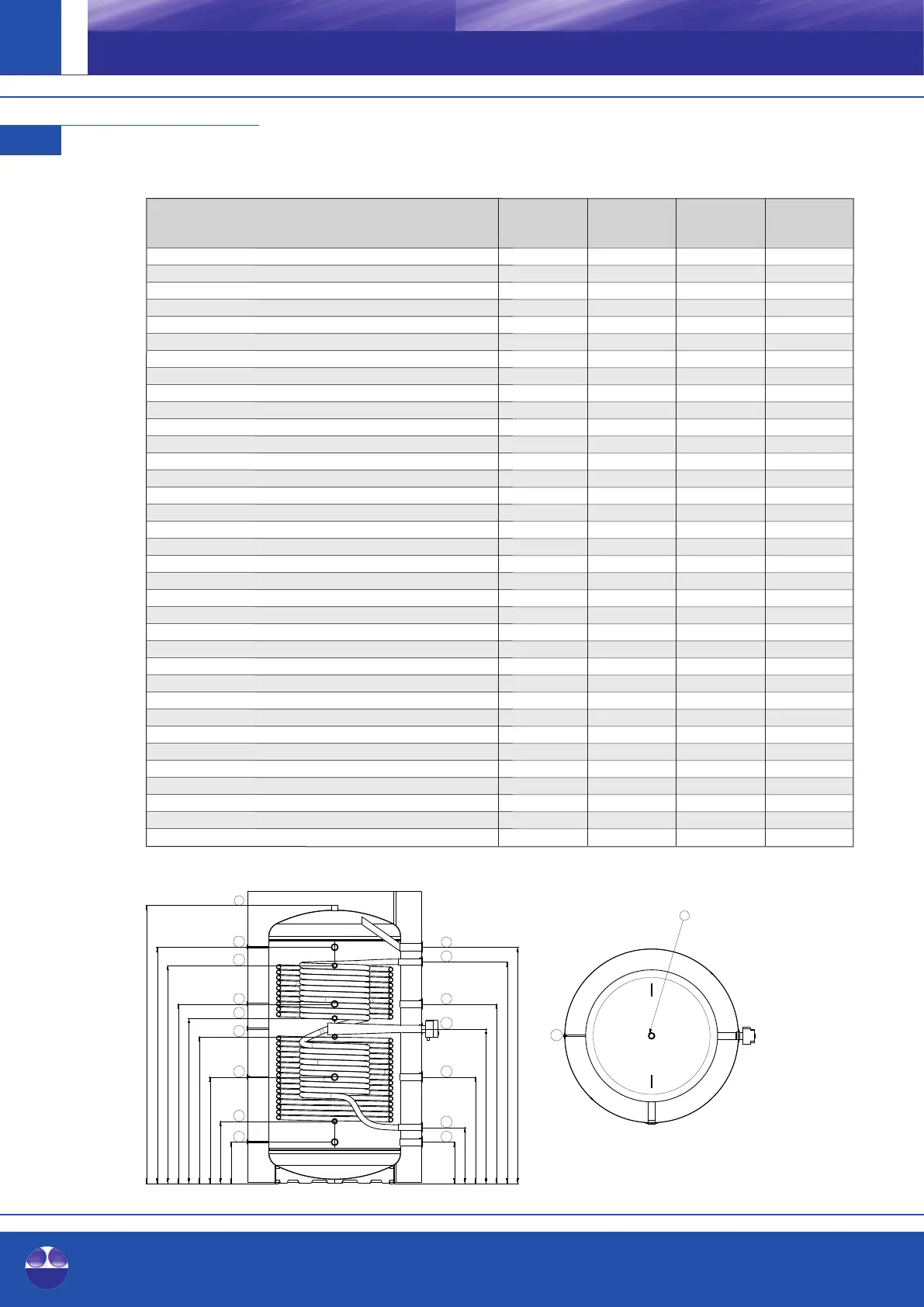

OEG 150 - Fresh-Water Storage Tanks (800-1,500 L)

40
Fresh-water storage tanks
800 – 1,500
7. 6
Fresh-water, Combined and Buffer Storage Tanks
GB
Fresh-water storage tanks without, with one (-1) or 800 / 800-1 / 1,000 / 1,000-1 / 1,500 / 1,500-1
with two (-2) smooth-pipe heat exchangers 800-2 1,000-2 / 1,500-2
Real volume according to EN 12897 [l] 801 / 796 / 792 996 / 990 / 985
1,477 / 1,470 / 1,464
Fire protection class of insulation according to DIN 4102-1 [-] B2 B2 B2
Total height including insulation [mm] 1,900 2,310 2,190
Diameter without insulation [mm] 790 790 1,000
Diameter with insulation [mm] 1,015 1,015 1,315
Tilt height [mm] 1,925 2,280 2,200
Weight [kg] 192 / 232 / 265 265 / 315 / 355 275 / 322 / 365
Energy efficiency class according to EU regulation no. 812/2013 [-] A+ A+ A+
Heat retaining loss according to EN 12897 [W] 51 55 63
Output capacity 45°C (storage tanks 65°C, cold water 10°C, no reheating) [l] 457 571 857
Performance factor NL following DIN 4708 [-] 4.5 6.4 8.4
Storage tank pmax / tmax [bar] / [°C] 3 / 95 3 / 95 3 / 95
DHW heat exchanger surface / volume [m²] / [l] 8 / 34 8 / 34 8 / 34
DHW heat exchanger pmax / tmax [bar] / [°C] 6 / 95 6 / 95 6 / 95
Smooth-pipe heat exchanger* bottom surface / volume [m²] / [l] 2.6 / 17 3.3 / 21.3 4.5 / 29.7
Smooth-pipe heat exchanger* top surface / volume [m²] / [l] 2.2 / 14.2 2.6 / 17 2.8 / 18.6
Smooth-pipe heat exchanger* pmax / tmax [bar] / [°C] 10 / 130 10 / 130 10 / 130
Return heat generator (Rp 1½") A [mm] 255 255 312
Return smooth-pipe heat exchanger** bottom (Rp 1") B [mm] 413 363 470
Freely available (Rp 1½") C [mm] 694 832 804
Flow smooth-pipe heat exchanger** bottom (Rp 1") D [mm] 893 1,063 1,110
Return smooth-pipe heat exchanger** top (Rp 1") E [mm] 1,025 1,293 1,250
Freely available (Rp 1½") F [mm] 1,133 1,409 1,358
Flow smooth-pipe heat exchanger** top (Rp 1") G [mm] 1,425 1,773 1,650
Flow heat generator (Rp 1½) H [mm] 1,572 1,985 1,788
Ventilation (Rp 1¼") I [mm] 1,833 2,246 2,106
Freely available (Rp 1½") J [mm] 1,572 1,985 1,788
Hot water connection (Rp 1¼") K [mm] 1,462 1,875 1,678
Freely available (Rp 1½") L [mm] 1,133 1,409 1,358
Heating element (Rp 1½") M [mm] 963 1,170 1,170
Freely available (Rp 1½") N [mm] 694 832 804
Cold water connection (Rp 1¼") O [mm] 365 498 422
Freely available (Rp 1½") P [mm] 255 255 312
Sensor sleeve (Ø 6 mm) Q [mm] various heights various heights various heights
* if there is one
** if there is one, otherwise freely
available (Rp 1")
