OEG 150 - Buffer Storage Tanks (10,000 L)

Buffer storage tanks
10,000
7. 4
38
Fresh-water, Combined and Buffer Storage Tanks
GB

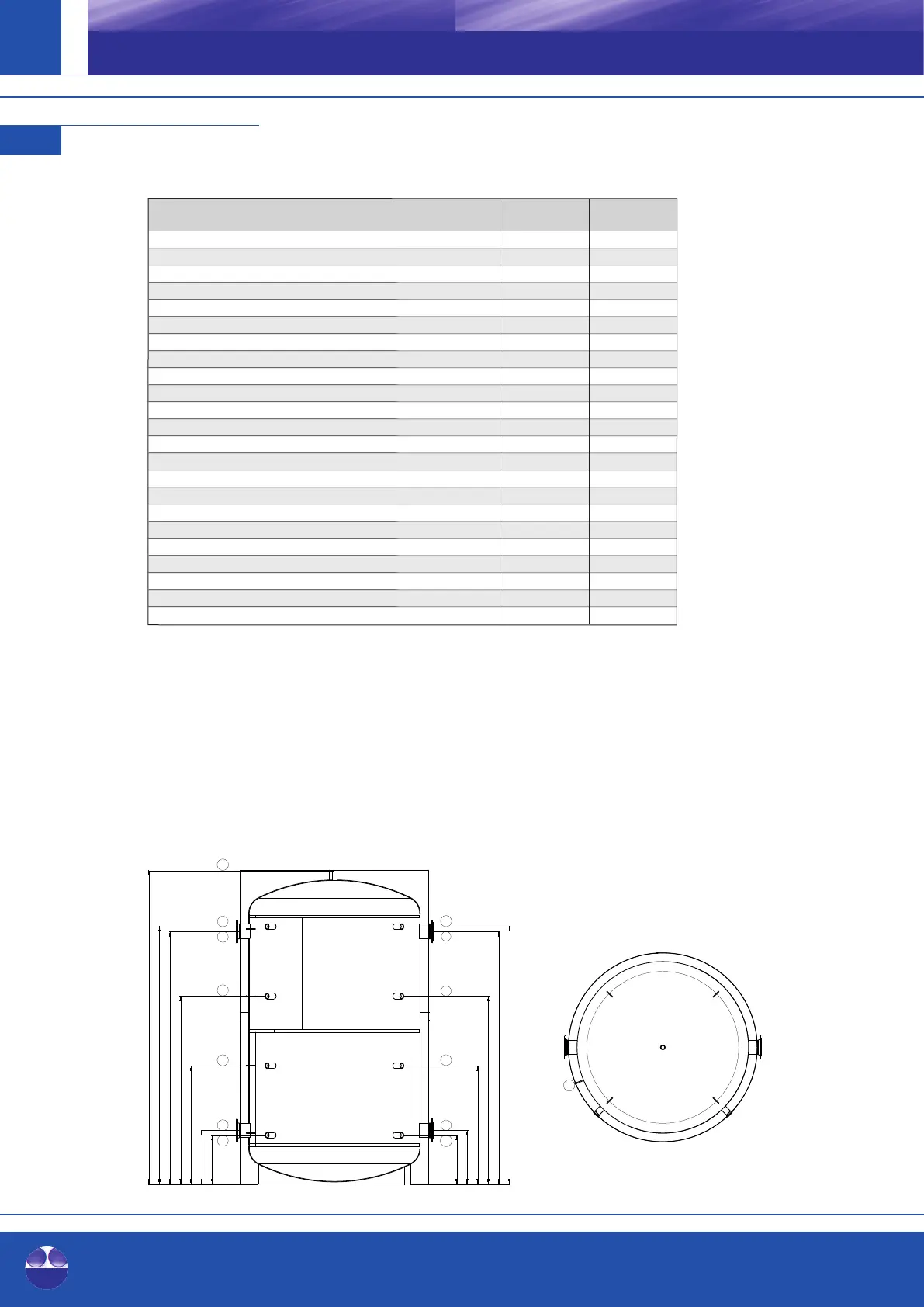

Buffer storage tank without smooth-pipe heat exchanger 10,000
Real volume according to EN 12897 [l] 10,083
Fire protection class of insulation according to DIN 4102-1 [-] B2
Total height including insulation [mm] 3,660
Diameter without insulation [mm] 2,000
Diameter with insulation [mm] 2,200
Tilt height [mm] 3,900
Weight [kg] 1,010
Storage tank pmax / tmax [bar]/[°C] 3/95
Return heat generator (Rp 2") A [mm] 571
Freely available (flange DN150 PN6) B [mm] 626
Freely available (Rp 2") C [mm] 1,381
Freely available (Rp 2") D [mm] 2,191
Freely available (flange DN150 PN6) E [mm] 2,946
Flow heat generator (Rp 2") F [mm] 3,001
Ventilation (Rp 1 ½") G [mm] 3,655
Freely available (Rp 2") H [mm] 3,001
Freely available (flange DN150 PN6) I [mm] 2,946
Freely available (Rp 2") J [mm] 2,191
Freely available (Rp 2") K [mm] 1,381
Freely available (flange DN150 PN6) L [mm] 626
Freely available (Rp 2") M [mm] 571
Sensor sleeves (Ø 6 mm) N [mm] various heights
N
A
B
C
D
E
F
G
H
I
J
K
L
M
* if there is one
** if there is one, otherwise freely
available (Rp 1")
