OEG KSW-E - Page 29

ENG
29
Service settings manual

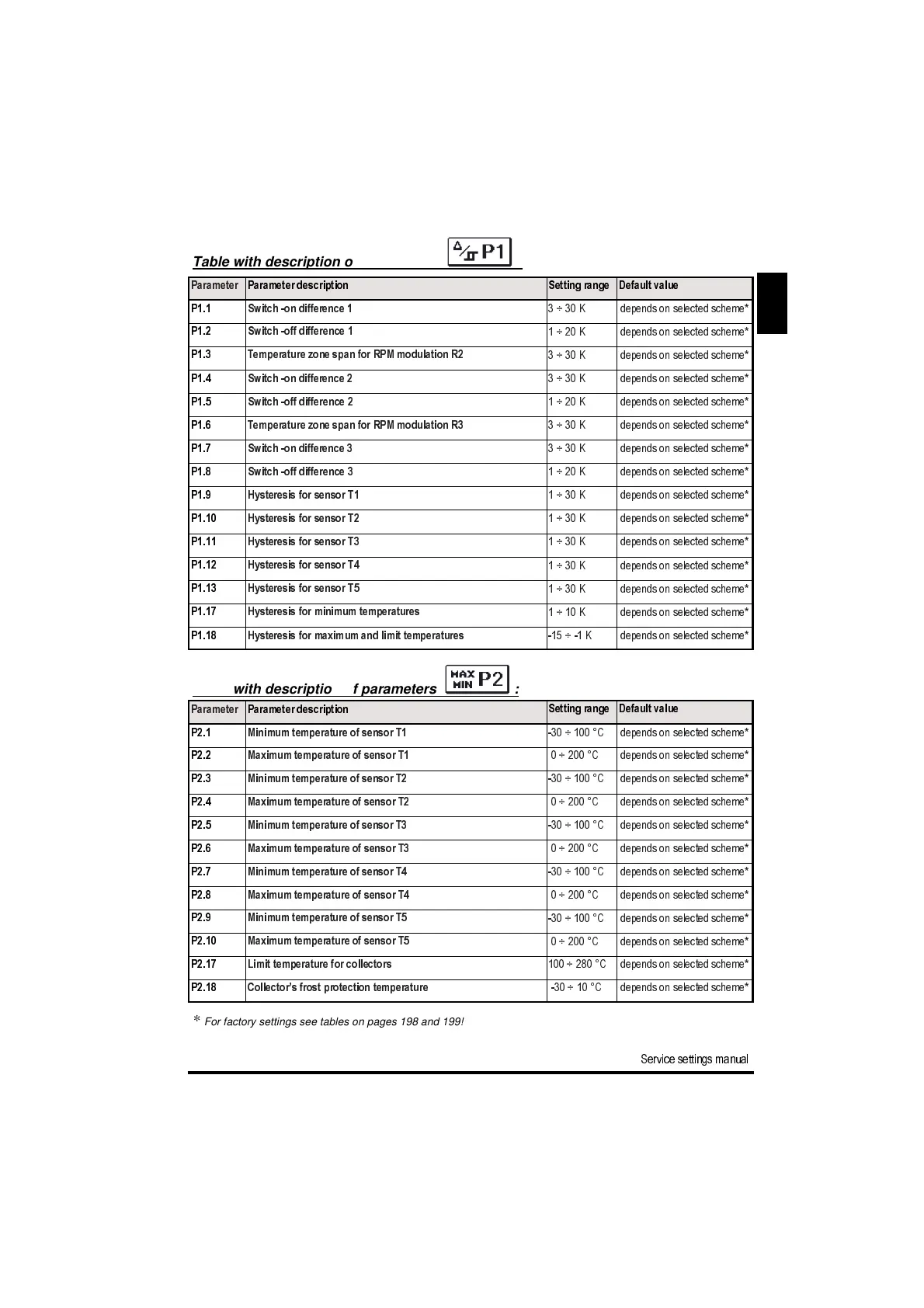

Table with description of parameters :
Parameter Parameter descri ptio n
Setting range Default value
P1.1 Switch -on difference 1
3 ÷ 30 K depends on selected scheme*
P1.2 Switch -off difference 1
1 ÷ 20 K depends on selected scheme*
P1.3 Temperature zone span for RPM modulation R2
3 ÷ 30 K depends on selected scheme*
P1.4 Switch -on difference 2
3 ÷ 30 K depends on selected scheme*
P1.5 Switch -off difference 2
1 ÷ 20 K depends on selected scheme*
P1.6 Temperature zone span for RPM modulation R3
3 ÷ 30 K depends on selected scheme*
P1.7 Switch -on difference 3
3 ÷ 30 K depends on selected scheme*
P1.8 Switch -off difference 3
1 ÷ 20 K depends on selected scheme*
P1.9 Hysteresis for sensor T1
1 ÷ 30 K depends on selected scheme*
P1.10 Hysteresis for sensor T2
1 ÷ 30 K depends on selected scheme*
P1.11 Hysteresis for sensor T3
1 ÷ 30 K depends on selected scheme*
P1.12 Hysteresis for sensor T4
1 ÷ 30 K depends on selected scheme*
P1.13 Hysteresis for sensor T5
1 ÷ 30 K depends on selected scheme*
P1.17 Hysteresis for minimum temperatures
1 ÷ 10 K depends on selected scheme*
P1.18 Hysteresis for maximum and limit temperatures
-15 ÷ -1 K depends on selected scheme*
Table with description of parameters :
Parameter Parameter descri ptio n
Setting range Default value
P2.1 Minimum temperature of sensor T1
-30 ÷ 100 °C depends on selected scheme*
P2.2 Maximum temperature of sensor T1
0 ÷ 200 °C depends on selected scheme*
P2.3 Minimum temperature of sensor T2
-30 ÷ 100 °C depends on selected scheme*
P2.4 Maximum temperature of sensor T2
0 ÷ 200 °C depends on selected scheme*
P2.5 Minimum temperature of sensor T3
-30 ÷ 100 °C depends on selected scheme*
P2.6 Maximum temperature of sensor T3
0 ÷ 200 °C depends on selected scheme*
P2.7 Minimum temperature of sensor T4
-30 ÷ 100 °C depends on selected scheme*
P2.8 Maximum temperature of sensor T4
0 ÷ 200 °C depends on selected scheme*
P2.9 Minimum temperature of sensor T5
-30 ÷ 100 °C depends on selected scheme*
P2.10 Maximum temperature of sensor T5
0 ÷ 200 °C depends on selected scheme*
P2.17 Limit temperature for collectors
100 ÷ 280 °C depends on selected scheme*
P2.18 Collector’s frost protection temperature
-30 ÷ 10 °C depends on selected scheme*
* For factory settings see tables on pages 198 and 199!
