1118-301
PREPARING
THE
PATIENT

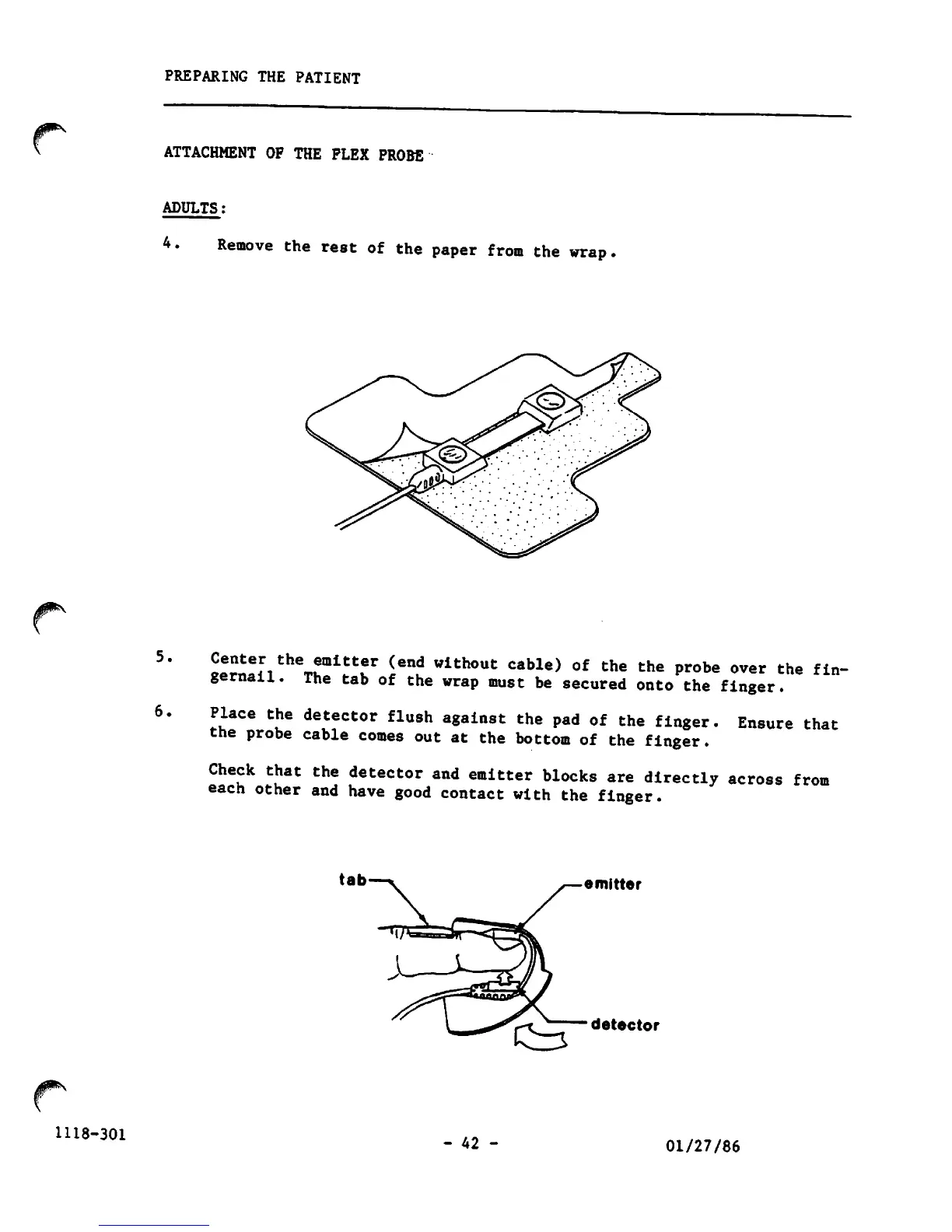

ATTACHMENT OF THE FLEX PROBE
ADULTS:
4.
Remove
the
rest
of
the
paper
from
the
wrap
5.
6.
Center
the
emitter
(end
without
cable)
of
the
the
probe
over
the
fin
gernail.
The
tab
of
the
wrap
must
be
secured
onto
the
finger.
Place
the
detector
flush
against
the
pad
of
the
finger.
Ensure
that
the
probe
cable
comes
out
at
the
bottom
of
the
finger.
Check
that
the
detector
and
emitter
blocks
are
directly
across
from
each
other
and
have
good
contact
with
the
finger.
tab
emitter
detector
-
42
-
01/27/86
