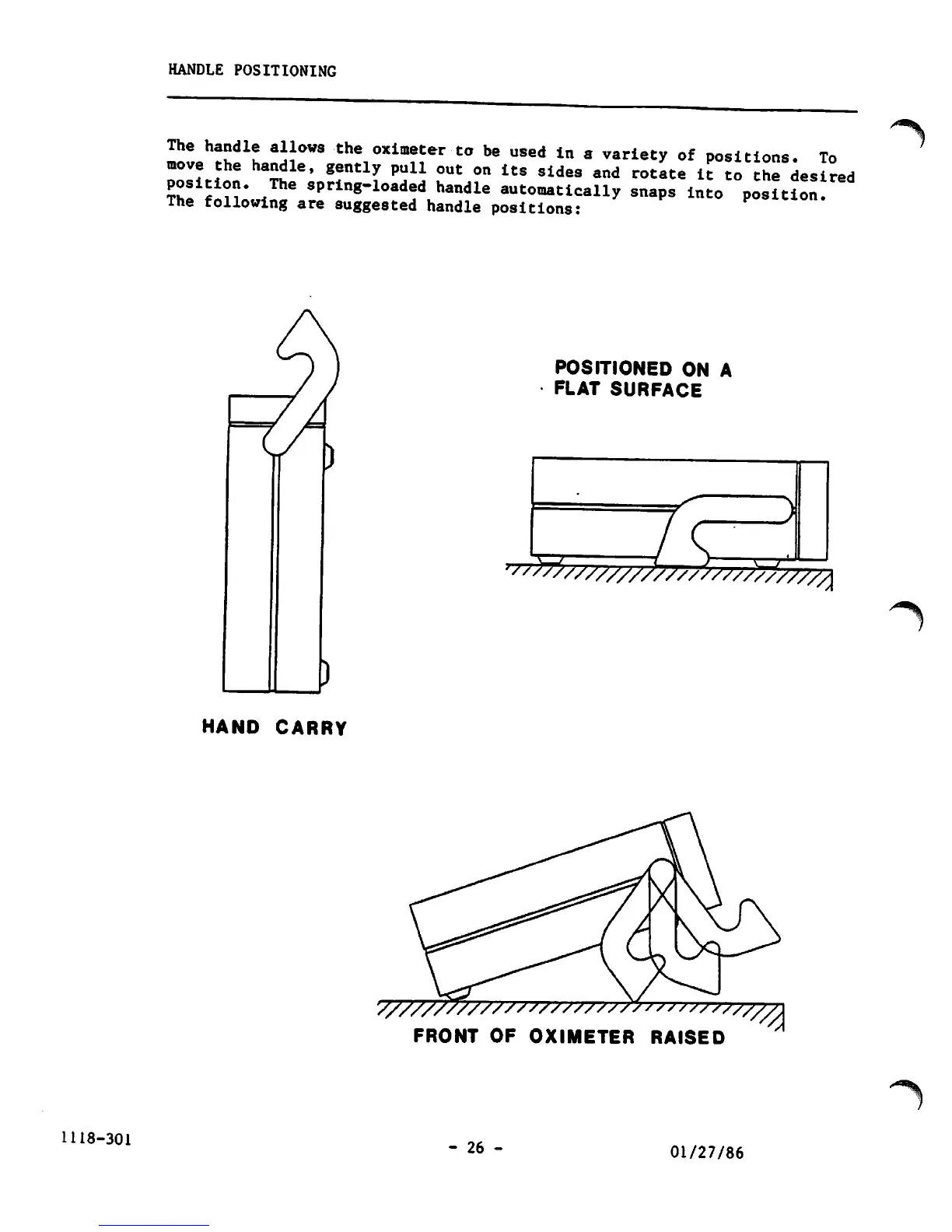

HANDLE POSITIONING
The handle allows the oximeter to be used in a variety of positions. To
move the handle, gently pull out on its sides and rotate it to the desired
position. The spring-loaded handle automatically snaps into position
The following are suggested handle positions:
HAND CARRY
POSITIONED ON A
FLAT SURFACE
' ''tt////////{////h////f7777%
FRONT OF OXIMETER RAISED
- 26 -
01/27/86
