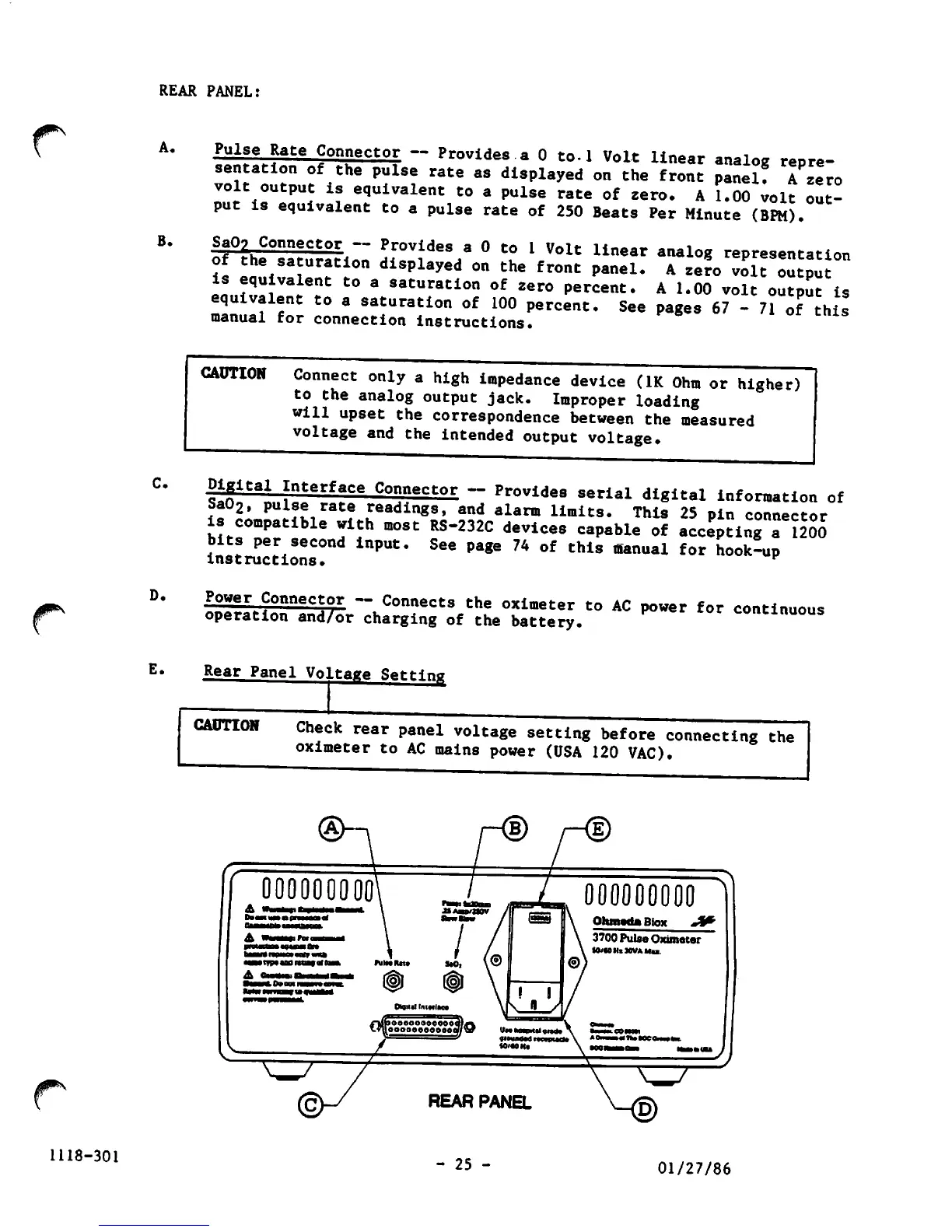

REAR PANEL:
A.
B.
C.
D.
E.
Pulse Rate Connector — Provides a0 to.1 Volt linear analog repre
sentation of the pulse rate as displayed on the front panel! A zero
volt output is equivalent to a pulse rate of zero. A 1.00 volt out
put is equivalent to a pulse rate of 250 Beats Per Minute (BPM).
Sa02 Connector - Provides a0 to 1 Volt linear analog representation
of the saturation displayed on the front panel. A zero volt output
is equivalent to a saturation of zero percent. A 1.00 volt output is
equivalent to a saturation of 100 percent. See pages 67 - 71 of this
manual for connection instructions.
CAUTION
Connect only a high impedance device (IK Ohm or higher)
to the analog output jack. Improper loading
will upset the correspondence between the measured
voltage and the intended output voltage.
Digital Interface Connector - Provides serial digital information of
Sa02, pulse rate readings, and alarm limits. This 25 pin connector
is compatible with most RS-232C devices capable of accepting a U00
bits per second input. See page 74 of this manual for hook-up
instructions. *
Power Connector - Connects the oximeter to AC power for continuous
operation and/or charging of the battery. continuous
Rear Panel Voltage Setting
CAUTION
Check rear panel voltage setting before connecting the
oximeter to AC mains power (USA 120 VAC).
I 000000000
