Ohmeda Biox 3700 - Computer Interface; Digital Interface Overview

1118-301

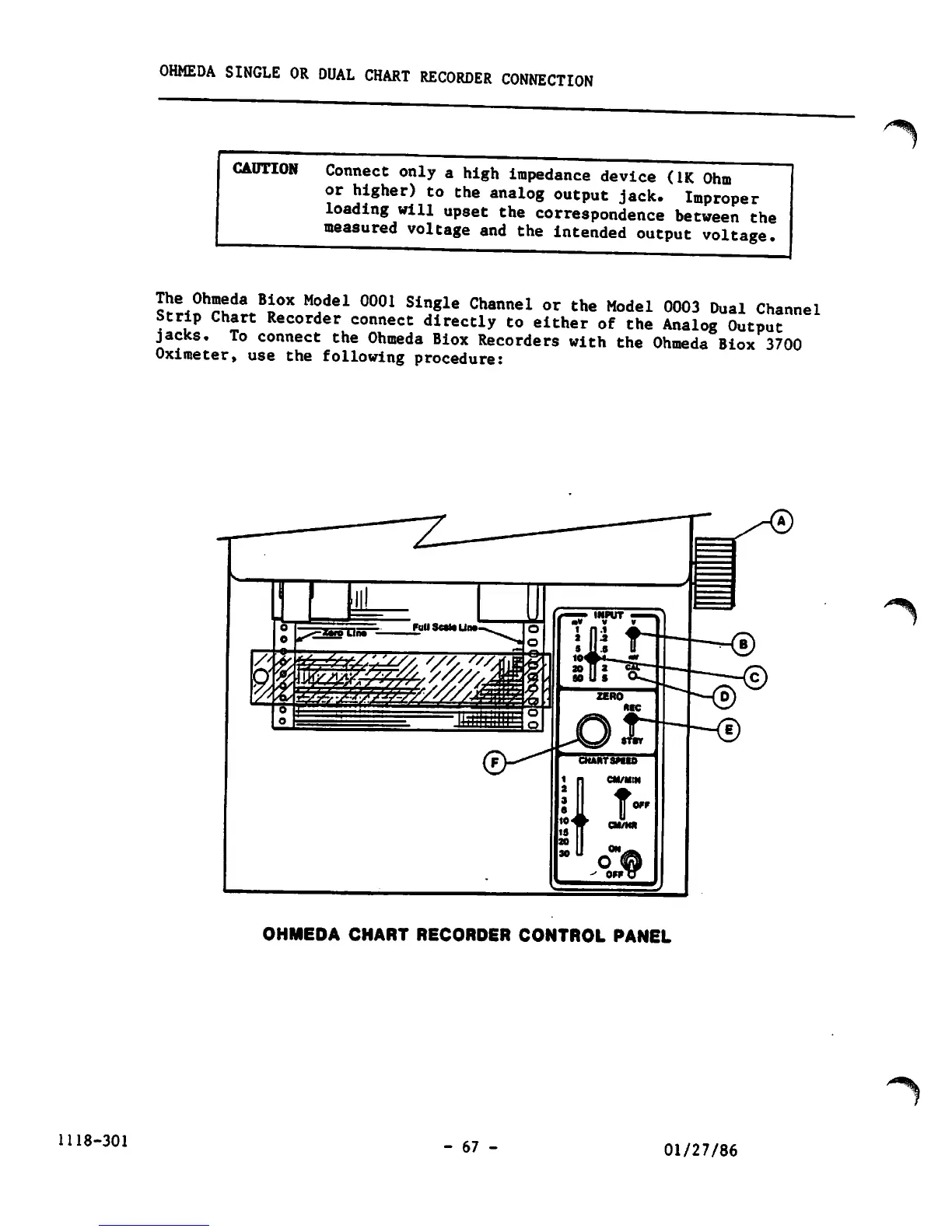

OHMEDA SINGLE OR DUAL CHART RECORDER CONNECTION
CAUTION
Connect only a high impedance device (IK Ohm
or higher) to the analog output jack. Improper
loading will upset the correspondence between the
measured voltage and the intended output voltage.
The Ohmeda Biox Model 0001 Single Channel or the Model 0003 Dual Channel
Strip Chart Recorder connect directly to either of the Analog Output
jacks. To connect the Ohmeda Biox Recorders with the Ohmeda Biox 3700
Oximeter, use the following procedure:
OHMEDA CHART RECORDER CONTROL PANEL
- 67 -
01/27/86
/^k
^%
