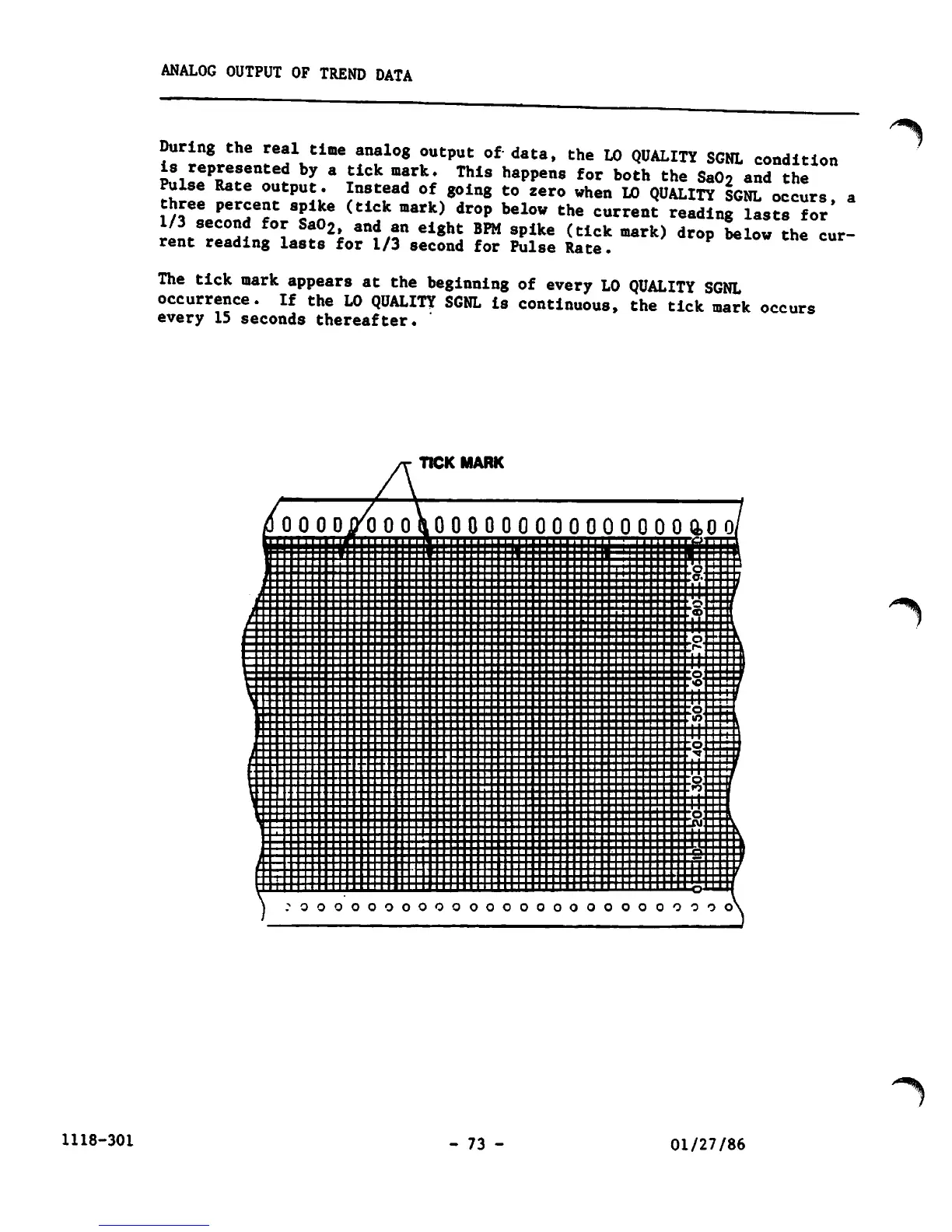

ANALOG OUTPUT OF TREND DATA
During the real time analog output of data, the LO QUALITY SGNL condition
is represented by a tick mark. This happens for both the Sa02 and the
Pulse Rate output. Instead of going to zero when LO QUALITY SGNL occurs a
three percent spike (tick mark) drop below the current reading lasts ToV
1/3 second for Sa02, and an eight BPM spike (tick mark) drop below the cur
rent reading lasts for 1/3 second for Pulse Rate.
The tick mark appears at the beginning of every LO QUALITY SGNL
occurrence. If the LO QUALITY SGNL is continuous, the tick mark occurs
every 15 seconds thereafter.
TICK MARK
OOOOOOOOOOOOOOOOOOOOOOOO
i
- 73 - 01/27/86
**%
