ALARM SILENCE - Once this key is depressed it temporarily silences
ex sts ? T f°r 'I SeC°ndS SVen Wh6n an 3Ctlve alarm condition
exists. If an alarm condition still exists after 30 seconds, the
audible tone will resume.
EXCEPTION: In the case of a "PROBE OFF" or "NO PROBE" alarm the
alarm silence key will silence the audible alarm'until
either the specific alarm condition is remedied or a dif
ferent alarm condition is detected, or a different message
is displayed on the front panel other than Trend.
LOW Sa02 -- To set this alarm, depress and hold the arrow key to raise
°rrrrr, % ?WKSa°2 A1?™ threshold« This threshold changes ?n
SaJETS °i TeXl l°% Sa°2 and l00% Sa°2 as indicated on the
Digital Display. The default level is set at 90% Sa02.
HIGH Sa02 - To set this alarm, depress and hold the arrow key to
raise or lower the High Sa02 Alarm threshold. This threshold changes
in increments of 1 between 70% Sa02 and 100% Sa02 as indicated on the
Digital Display. The default level is set at Off " " (dashes).
LOW PULSE — To set this alarm, depress and hold the arrow key to
raise or lower the Low Pulse Alarm threshold. This threshold changes
;™tS.°V bGt:rn/2 ^ 20° BeatS Per Minute as indicated on
the Digital Display. The default level is set at 50 Beats Per Minute.
HIGH PULSE - To set this alarm, depress and hold the arrow key to
raise or lower the High Pulse Alarm threshold. This threshold changes
emT?n/V betrn 7° ^ 25° BeatS Per Minute as indicated'o
the Digital Display. The default level is set at Off " " (dashes).
VIEWING ANGLE THUMBWHEEL ADJUSTMENT - This control adjusts the view
ing angle (approximately 50 degrees) of the Graphic and Digital Dis
plays simultaneously. This adjustment allows the displays to be seen
from different viewing angles.
wwws®
N

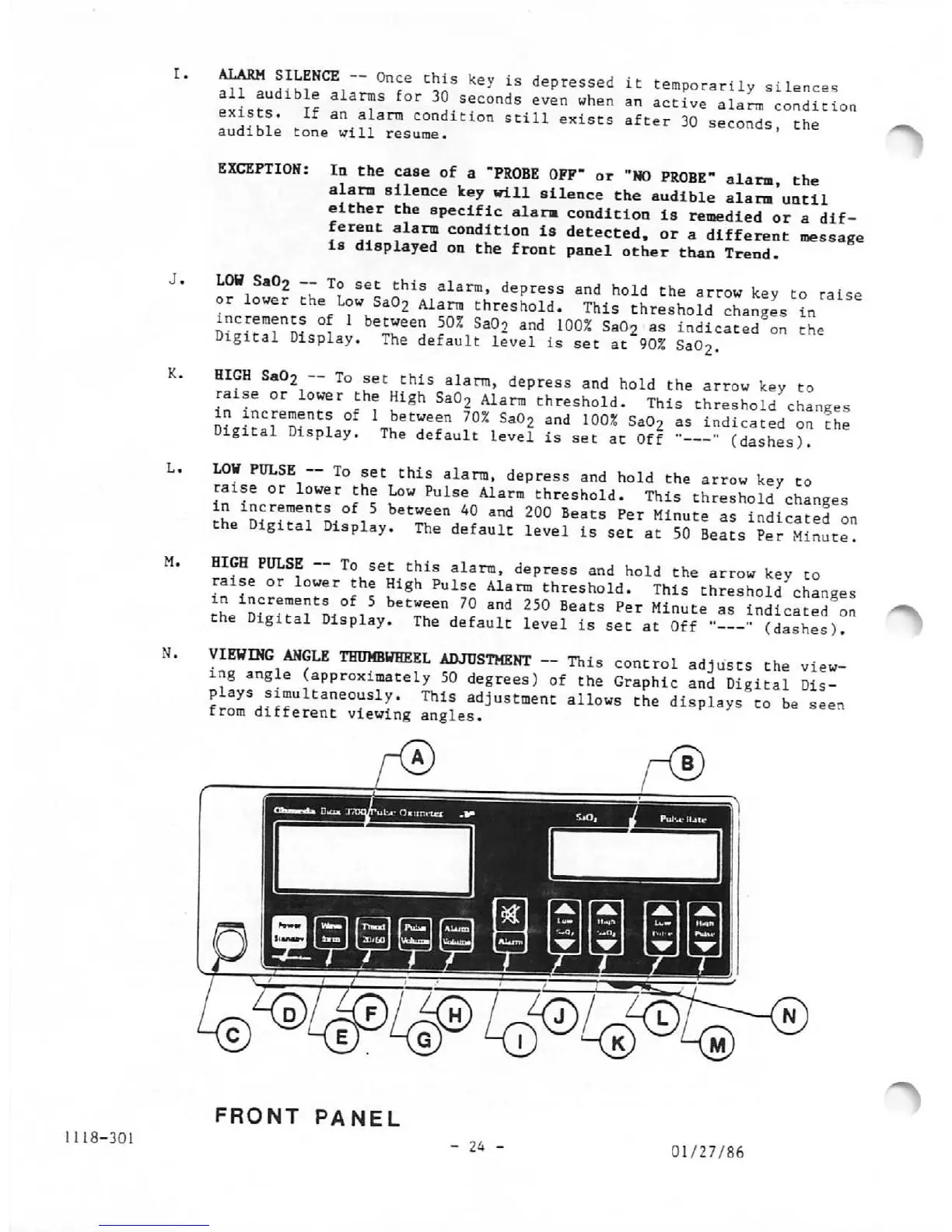

FRONT PANEL
- 24 -
