STRESS AND EXERCISE TESTING
4.
detector
1118-301
probe
cable

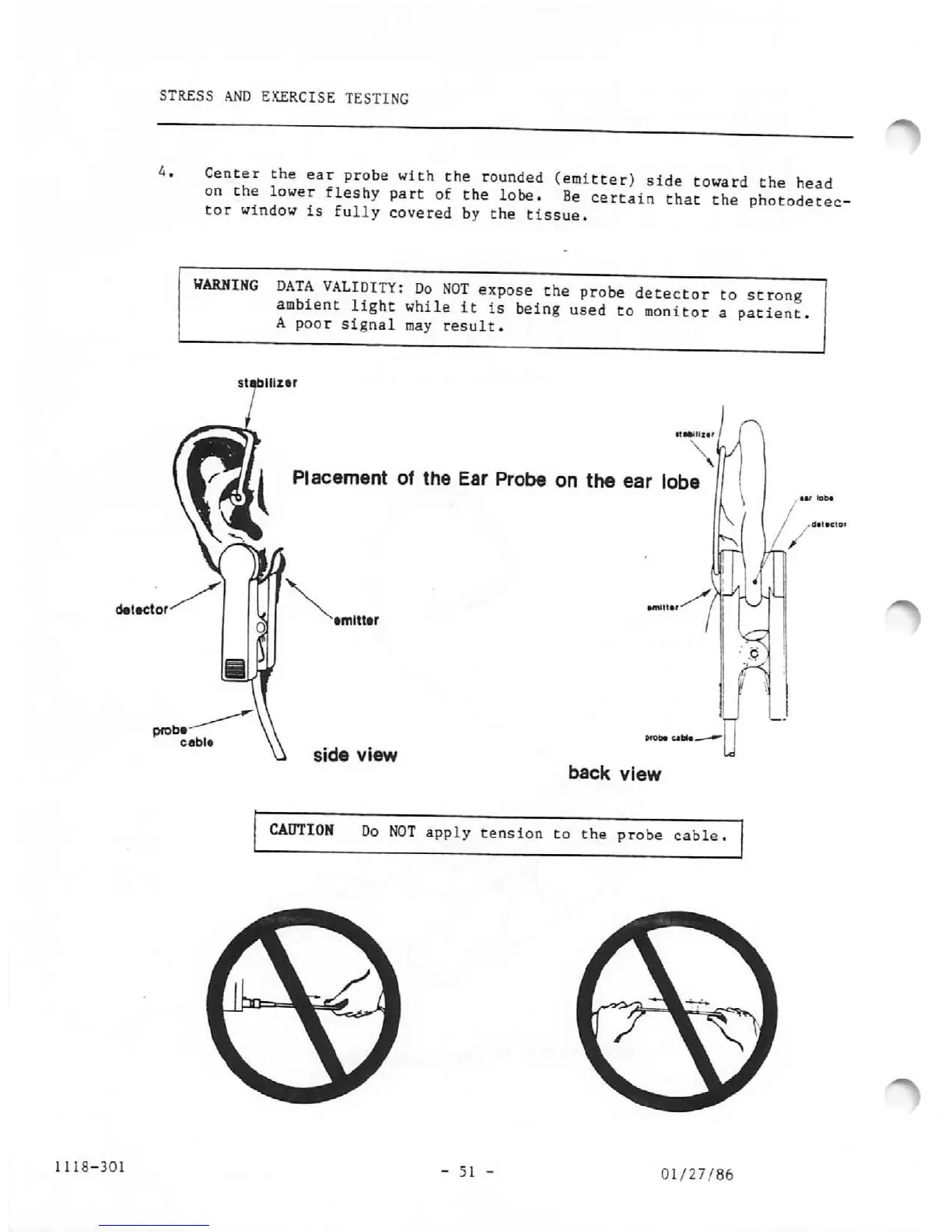

Center the ear probe with the rounded (emitter) side toward the head
on the lower fleshy part of the lobe. Be certain that the photodetec
tor window is fully covered by the tissue.
WARNING DATA VALIDITY: Do NOT expose the probe detector to strong
ambient light while it is being used to monitor a patient.
A poor signal may result.
stabilizer
Placement of the Ear Probe on the ear lobe
emitter
side view
back view
CAUTION Do NOT apply tension to the probe cable
- 51 -
01/27/86
^
