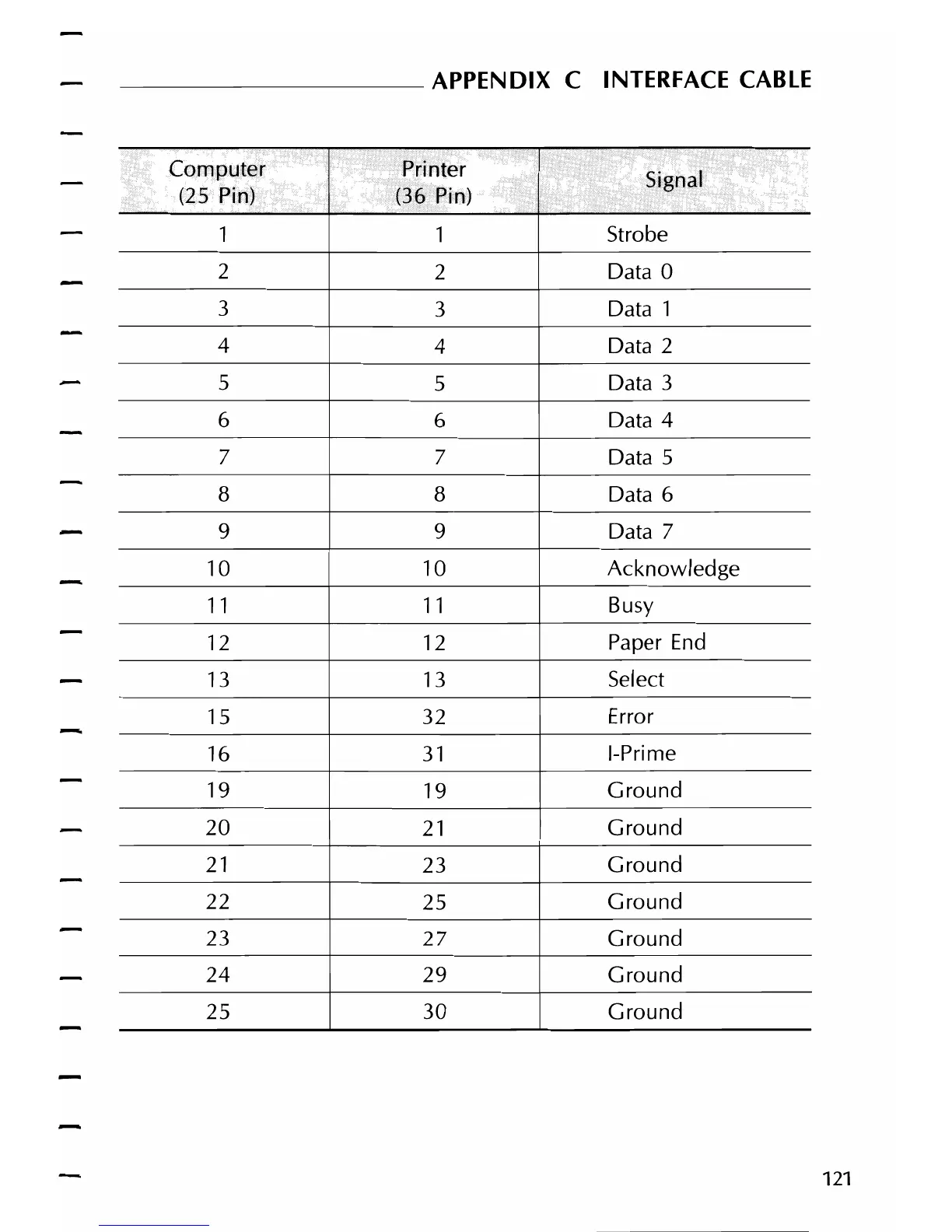

_________ APPENDIX C INTERFACE CABLE
Computer
(25 Pin)
Printer
(36 Pin)
Signal
1
1
Strobe
2
2
Data 0
3
3
Data 1
4
4
Data 2
5
5
Data
3
6
6
Data 4
7
7
Data 5
8
8
Data 6
9 9
Data 7
10
10
Acknowledge
11
11
Busy
12
12
Paper End
13
13
Select
15 32
Error
16 31
I-Prime
19 19
Ground
20
21
Ground
21 23
Ground
22 25
Ground
23
27
Ground
24 29 Ground
25
30
Ground
