C6100 Series User’s Guide
137
Jam 381
OPEN TOP COVER
381: Paper Jam

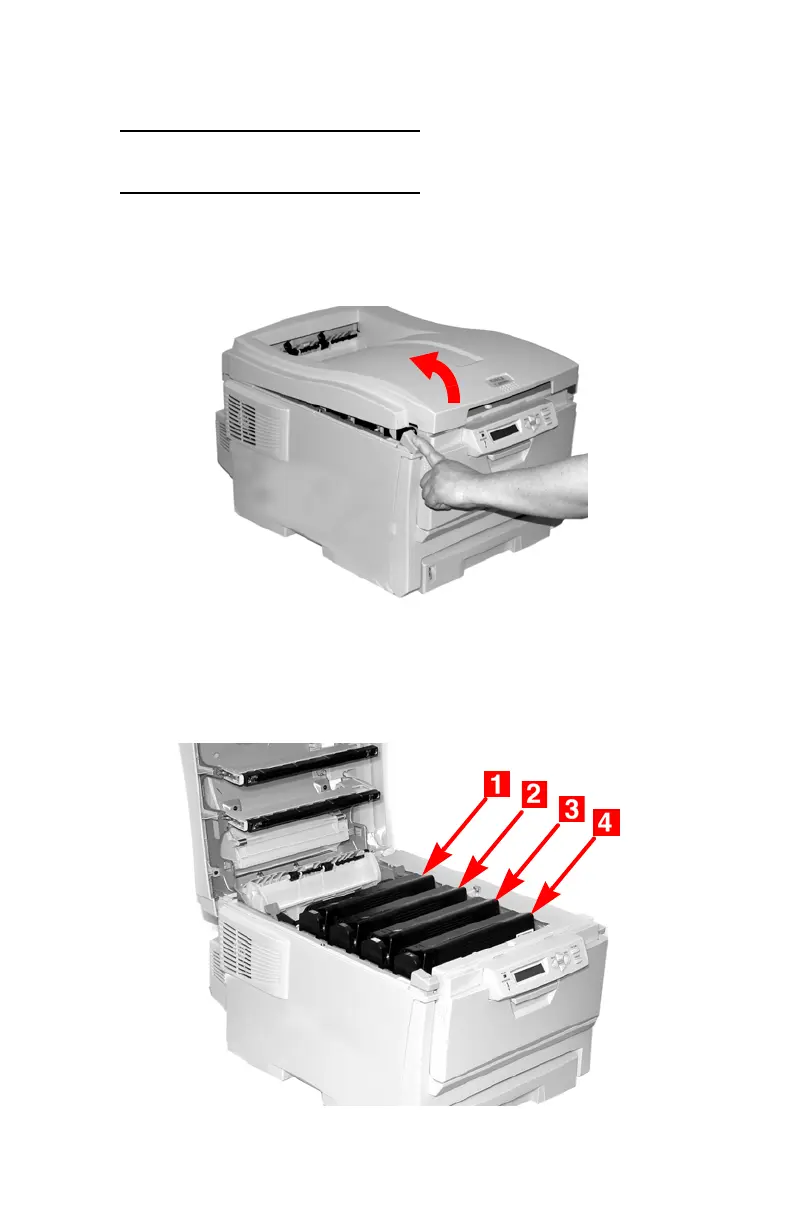

1. Press the cover release. Fully open the printer’s top
cover.
2. Note the positions of the four image drums: Cyan (1),
Magenta (2), Yellow (3), Black (4). It is essential that
they go back in the correct order!
To Next Page
