C6100 Series User’s Guide
93

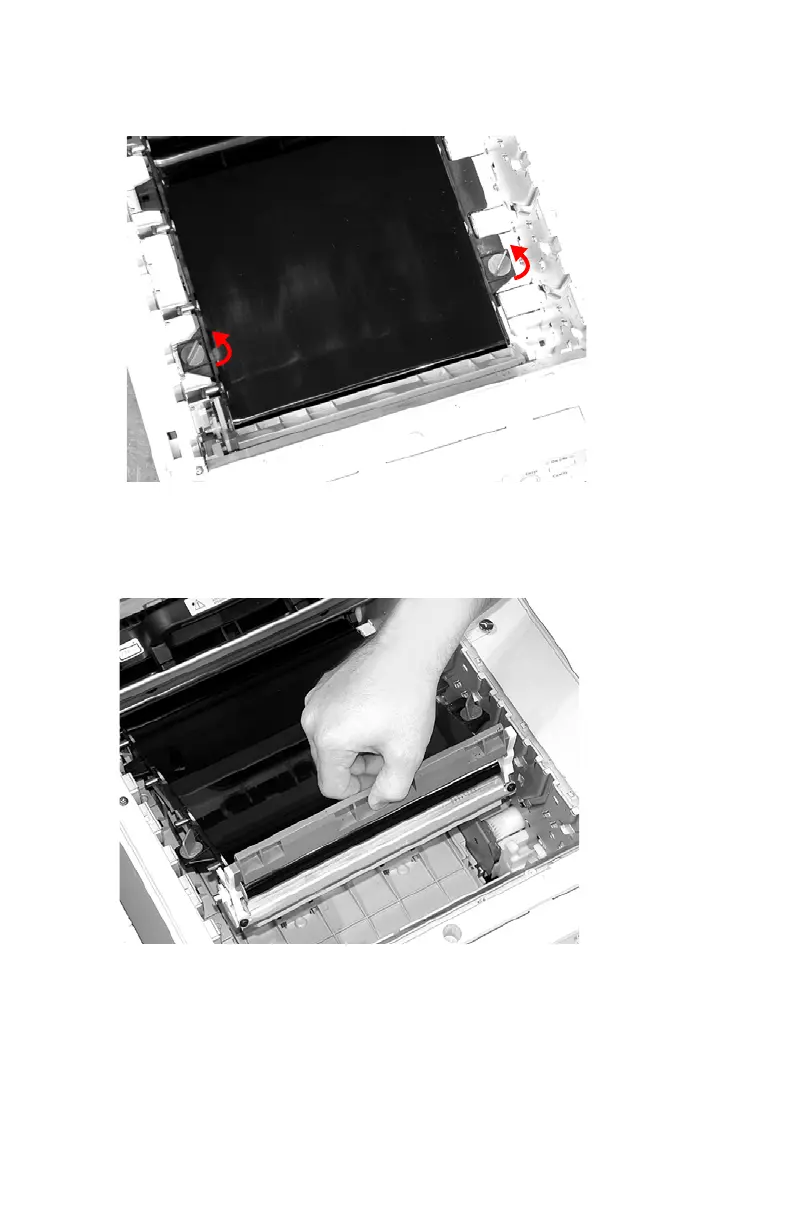

5. Turn the two locks about 45° counterclockwise to release
the belt.
6. Pull up the handle and lift the belt unit out of the printer.
7. Unpack the new belt unit. Hold it with the blue handle
toward the front of the printer.
