C6100 Series User’s Guide
94

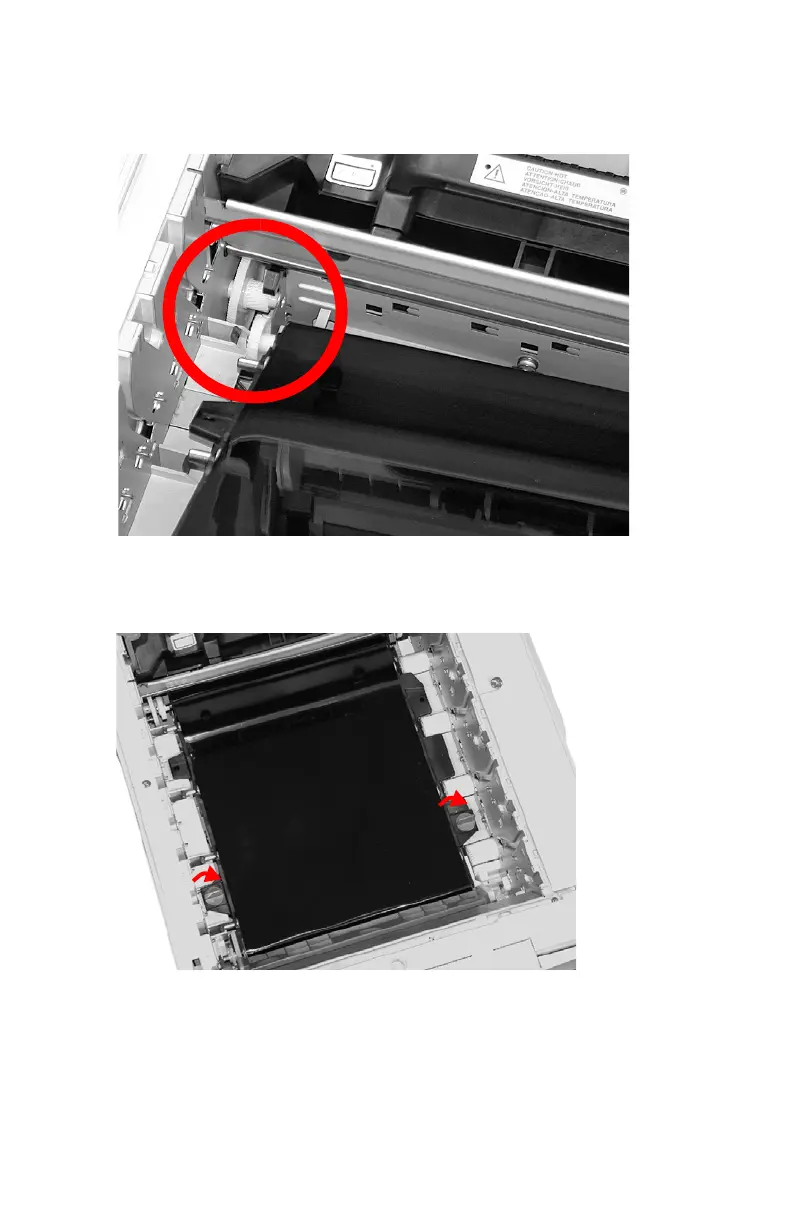

8. Place the drive gear at the back of the belt unit in the
gear at the left rear corner of the printer. Lower the belt
unit into the printer.
9. Turn the two belt locks about 45° clockwise to secure the
belt unit in place.
