Oki Data CONFIDENTIAL
44205401TH Rev.1
126 /
6. Periodic Maintenance

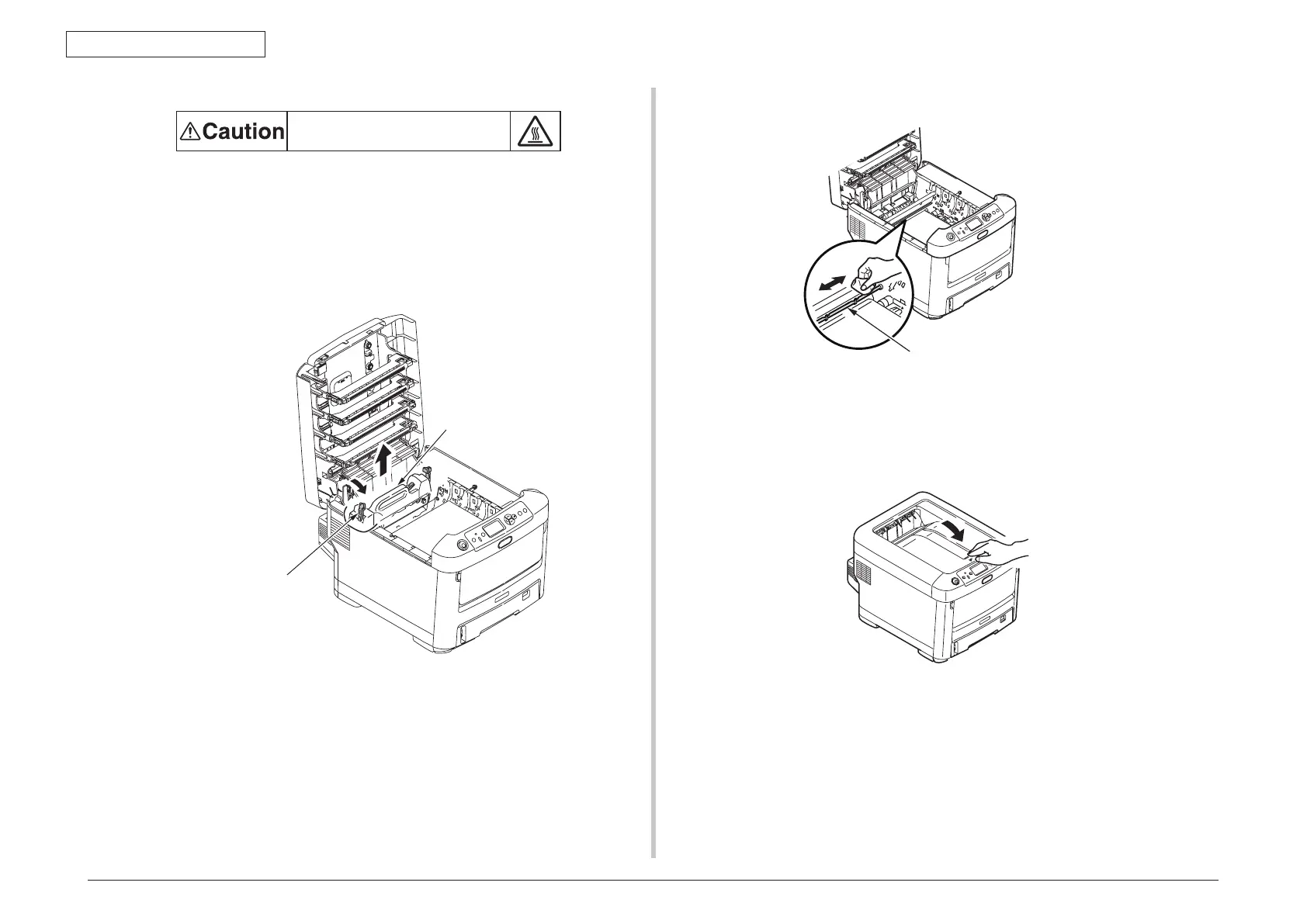

(4) Remove the fuser unit.
Personal injuries may occur.
The fuser unit gets very hot. Be very careful not to touch the fuser
unit with your hands.
If it got hot, stop the work and wait until it cools down. After it has
cooled down, start the following steps.
1. Raise
the fuser
unit lock levers (two levers shown in blue) in the direction shown
by the arrow.
2. Hold the handle of the fuser unit and remove it.
(5) Clean the metal shaft with soft clean cloth or soft tissue paper.
Fuser unit lock levers
(shown in blue)
Handle
(6) Install the fuser unit.
For the detailed procedure, refer to the User's Manual – Setup Guide "Replacing
fuser unit".
(7) Return the f
our image drum cartridges to the printer gently and carefully.
(8) Close the top cover.
To Next Page
