4. Component replacement
4.2.4 Right side cover

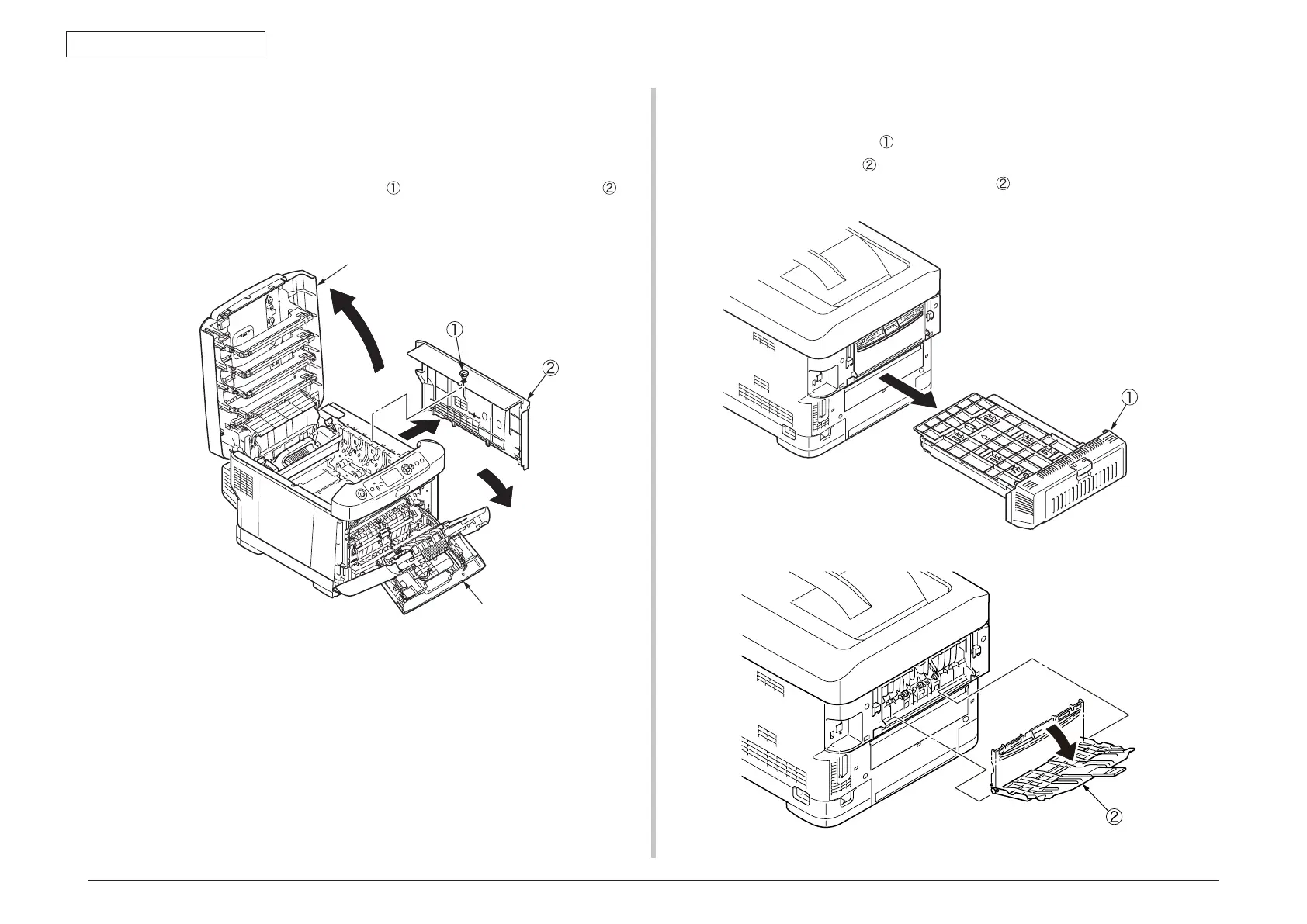

(1) Open the top cover.
(2) Open the feeder unit.
(3) Loose the screw (silver, No:41723901)
and remove the right side cover .
4.2.5 Faceup tray
(1) Draw out the Duplex unit
.
(2) Open the faceup tray
in the direction of arrow, and unlock the left and right
pins while bending. Remove the faceup tray
.
Top cover
Feeder unit
(Loose)
