1. Configuration
1.5 Specification of interface
1.5.1 Specification of USB interface
1.5.1.1 General of USB interface
(1) Spec.
USB (Support Hi speed USB )
(2) Transmission mode
Full speed (Maximum 12Mbps 0.25%)
High speed(Maximum 480Mbps 0.05%)
(3) Power control
Self power device
1.5.1.2 Connector and cable of USB interface
(1) Connector
•
Printer side:
B Receptacle (female)
Up-stream port
(UBR24-4K5C00 (made by ACON)) Equivalent goods

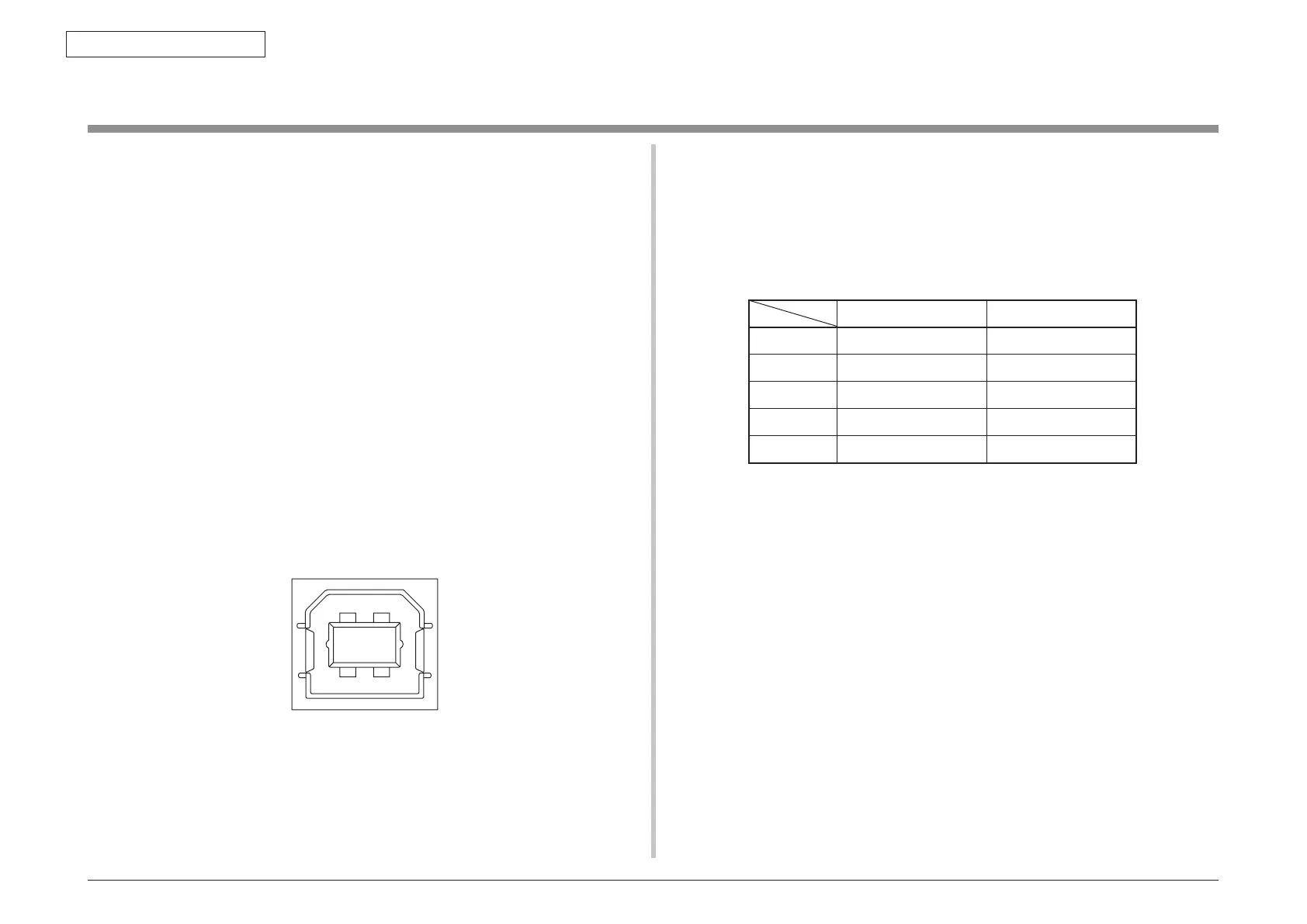

Connector pins array
(2) Cable
T
he length of the cable: the cable of less than 5m with USB 2.0 spec.
(Less than 2m is recommended)
(Please use the shielded wire for the cable.)
1.5.1.3 USB interface signal
Signal name Function
1 Vbus Power (+5V)
2 D- For data transmission
3 D+ For data transmission
4 GND Signal Ground
Shell Shield
• Cab
le side: B plug(male)
2
3 4
1

Oki C711 Specifications

General

Print Technology	LED
Connectivity	USB, Ethernet
Memory	256 MB (max 768 MB)
Printer Type	Workgroup Printer
Media Sizes	A4, A5, B5, Legal, Letter, Executive
Operating System Compatibility	Windows, Linux, Mac OS
Resolution	1200 x 600 dpi
