Oki C711 User Manual

44205401TH Rev.1
75 /
Oki Data CONFIDENTIAL
4. Component replacement
Air
Claw B
Claw B
(Black)
(Silver)
Claw A

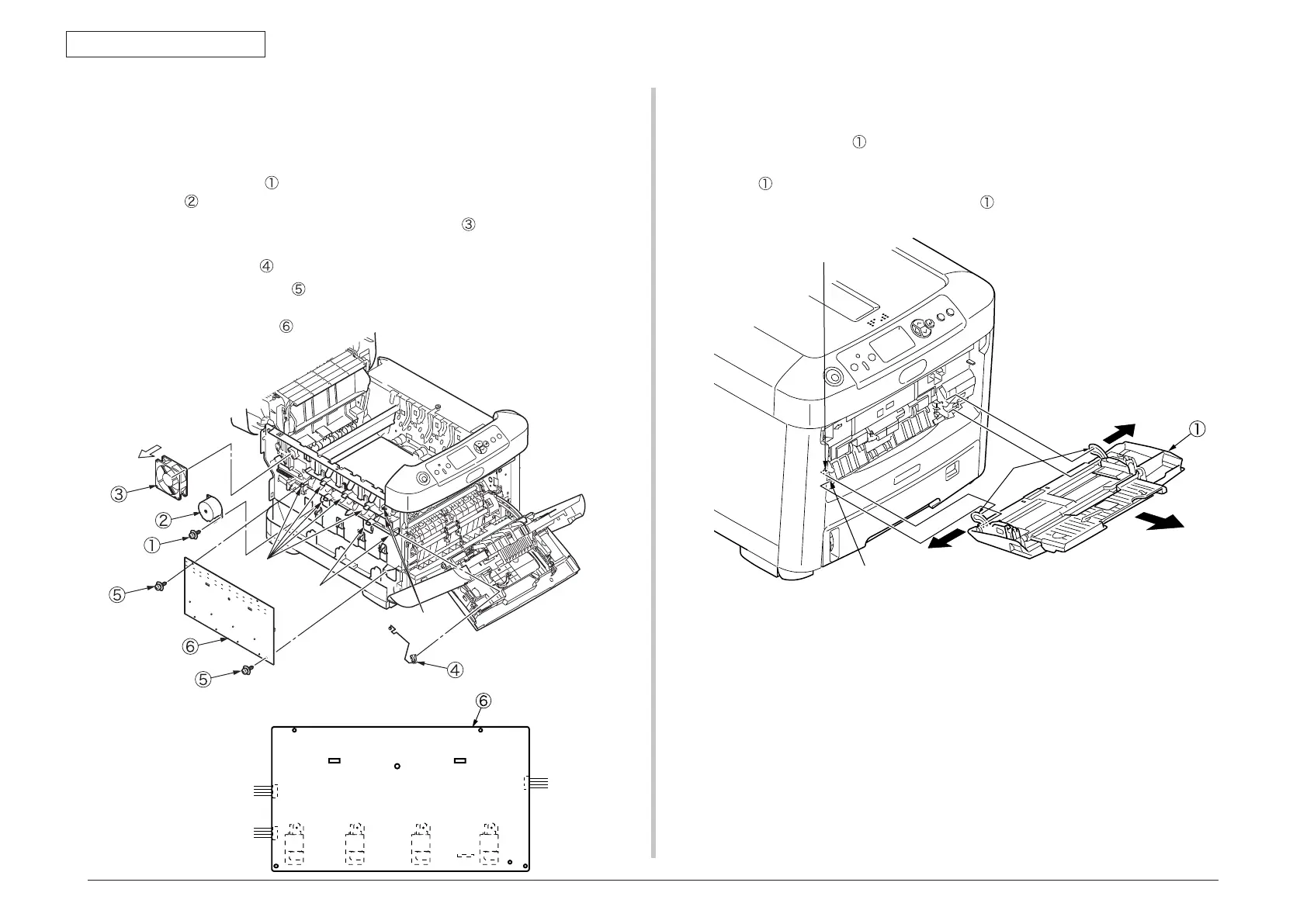

4.2.16 FAN(Fuser) / Belt motor/ High-voltage board/
Cover open switch
(1) Remove the left side cover. (See section 4.2.3)
(2) Remove the screw
(silver, No:42920406) and connector, and remove the belt
motor
.
(3) Remove the connector, and rotate the FAN (Fuser)
clockwisely to remove.
(4) Remove the connector and disengage the claw A (2 places), and remove the
cover open switch
.
(5) Remove the 2 screws
(silver, No:42920406 and black, No:42932708) and
connectors (2 places), and disengage the claw B (7 places). Remove the high-
voltage power supply
.
High-voltage power supply
Belt thermistor
FAN(Fuser)
CN4
CN2
CN3
CN1
TR-KTR-M
Cover open switch
TR-YTR-C
4.2.17 MPT Assy
(1) Open the MPT Assy
.
(2) Remove the stoppers (2 places) while pushing the arms (2 places) on MPT
Assy
outside, pull the supporters (2 places) in the direction of the arrow and
remove them, and remove the MPT Assy
.
Arm
Stopper (2 places)
Supporter (2 places)

Oki C711 Specifications

General

Print Technology	LED
Connectivity	USB, Ethernet
Memory	256 MB (max 768 MB)
Printer Type	Workgroup Printer
Media Sizes	A4, A5, B5, Legal, Letter, Executive
Operating System Compatibility	Windows, Linux, Mac OS
Resolution	1200 x 600 dpi
