44205401TH Rev.1
46 /
Oki Data CONFIDENTIAL
3. Set up
Tab
Tab
Hole in the bottom
Hole in the bottom of the printer
Tab
Hole in the bottom of the printer
3.5.3 Optional part installation and confirmation
(1) Installation of the optional tray unit (second/ third tray)
It is a traditional paper tray for adding paper into printer.
530 pieces of 70kg paper can be set. Using it with a standard paper cassette and a multi-
purpose tray can print 1690 pieces of pages continuously.
(1)-1. Turn the printer power to OFF and pull out the power cord from the outlet.
Turn the power off with following the procedure in chapter 3.5.2 [Turn the power
off.].
Notes! • If you turn off the power without properly shutting down, it may cause
damage to the printer. Please operate the [Shutdown Menu].
• It ma
y cause damage to the printer, if you install the optional tray with
power ON.

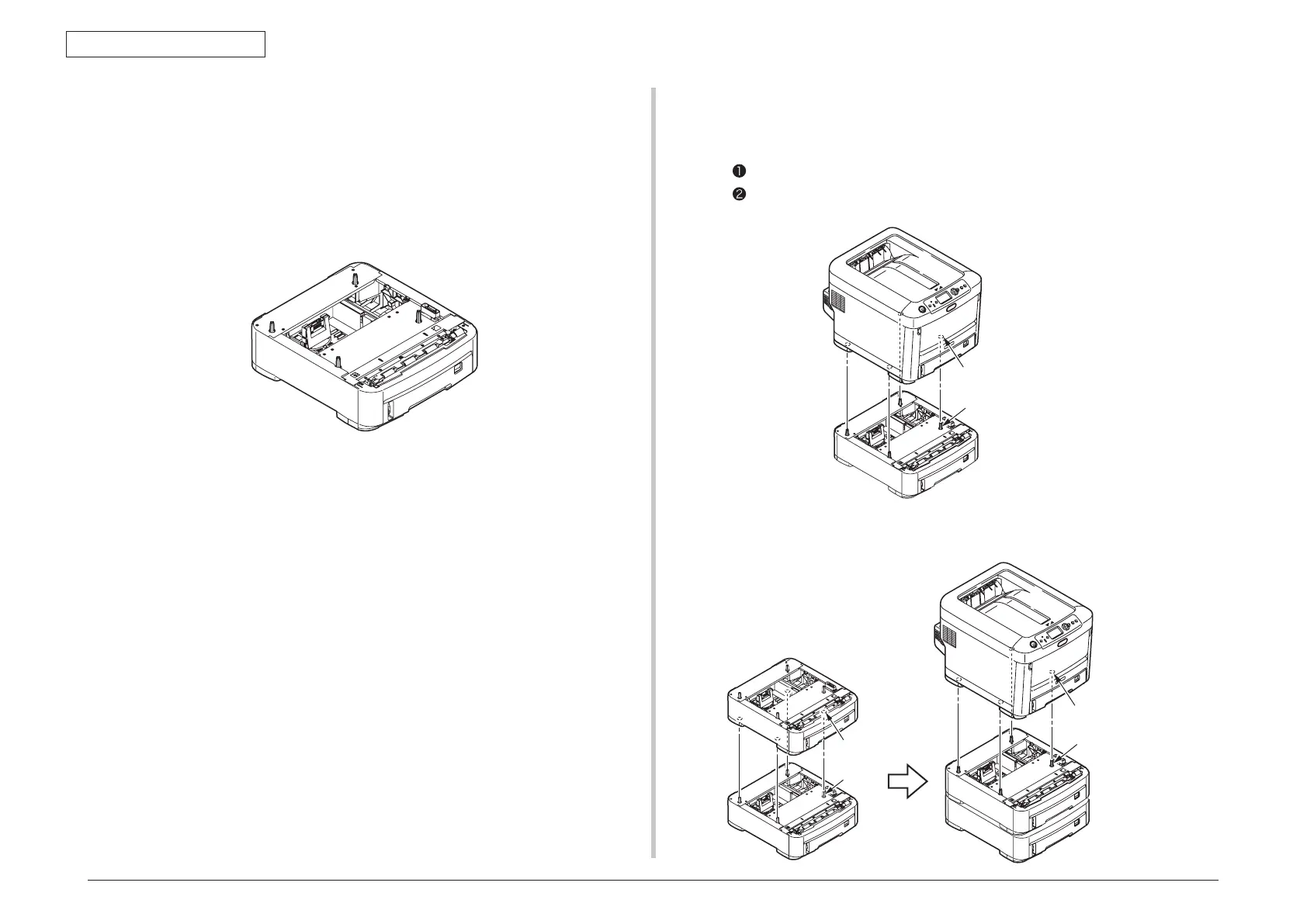

(1)-2. Install the optional tray unit to the printer.
Note! Because the weight of the printer body is approximately 28kg, it needs
more than two adults to lift it up.
Match the tab into the hole in the bottom of the printer.
Put the printer on the optional tray unit slowly.Please remove it following the
steps 1-2 in reverse order.
Note! When you install two optional trays to the printer, set the optional tray
directly on top of the other optional tra
y, and then put them on the printer.
To Next Page
