44205401TH Rev.1

76 /

Oki Data CONFIDENTIAL

4. Component replacement

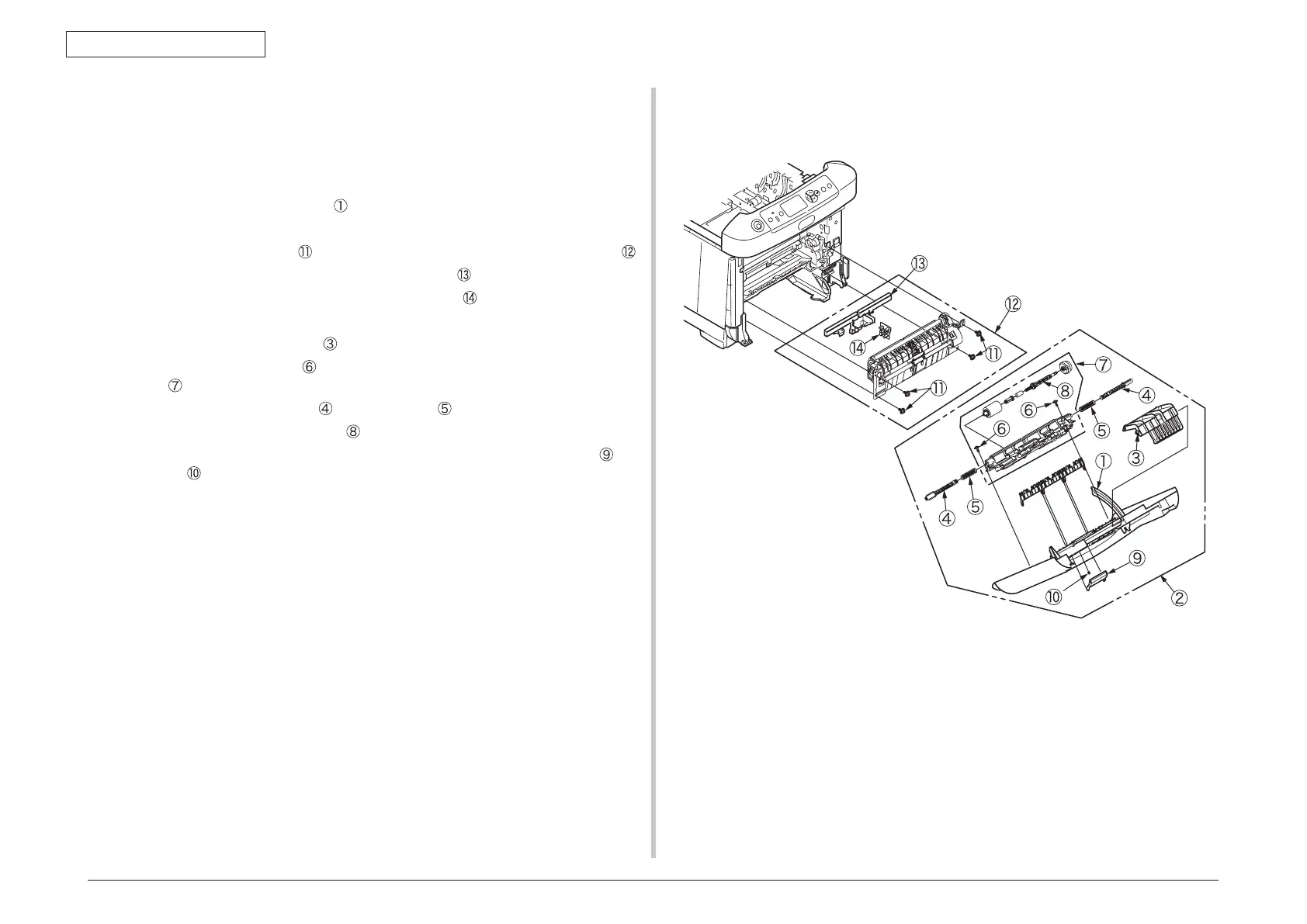

4.2.18 Cover Assy front/ Board-RSF/MPT hopping

roller/ Frame Assy separator/ Feeder Assy regist

(1) Open the top cover.

(2) Remove the plate shield and remove the connector. (See section 4.2.8)

(3) Disengage the claws of stay L

(4) Remove the motor cover. (See section 4.2.14)

(5) Remove the four screws

(silver, No:42920406) and remove the feeder unit .

(6) Disengage the claw, and remove the cover sensor

(7) Remove the connector and remove the Board-RSF

(8) Remove the MPT Assy. (See section 4.2.17)

(9) Rotate until the claw of lever

is disengaged, and remove it.

(10) Remove the two screws

(black, No:42932708), and remove the guide Assy

top

(11) Remove the two lock shafts

and two springs .

(12) Remove the hopping roller shaft

(13) Remove the supporters (2 places), and remove the frame Assy separator

and

spring
