7. Troubleshooting and repair procedure

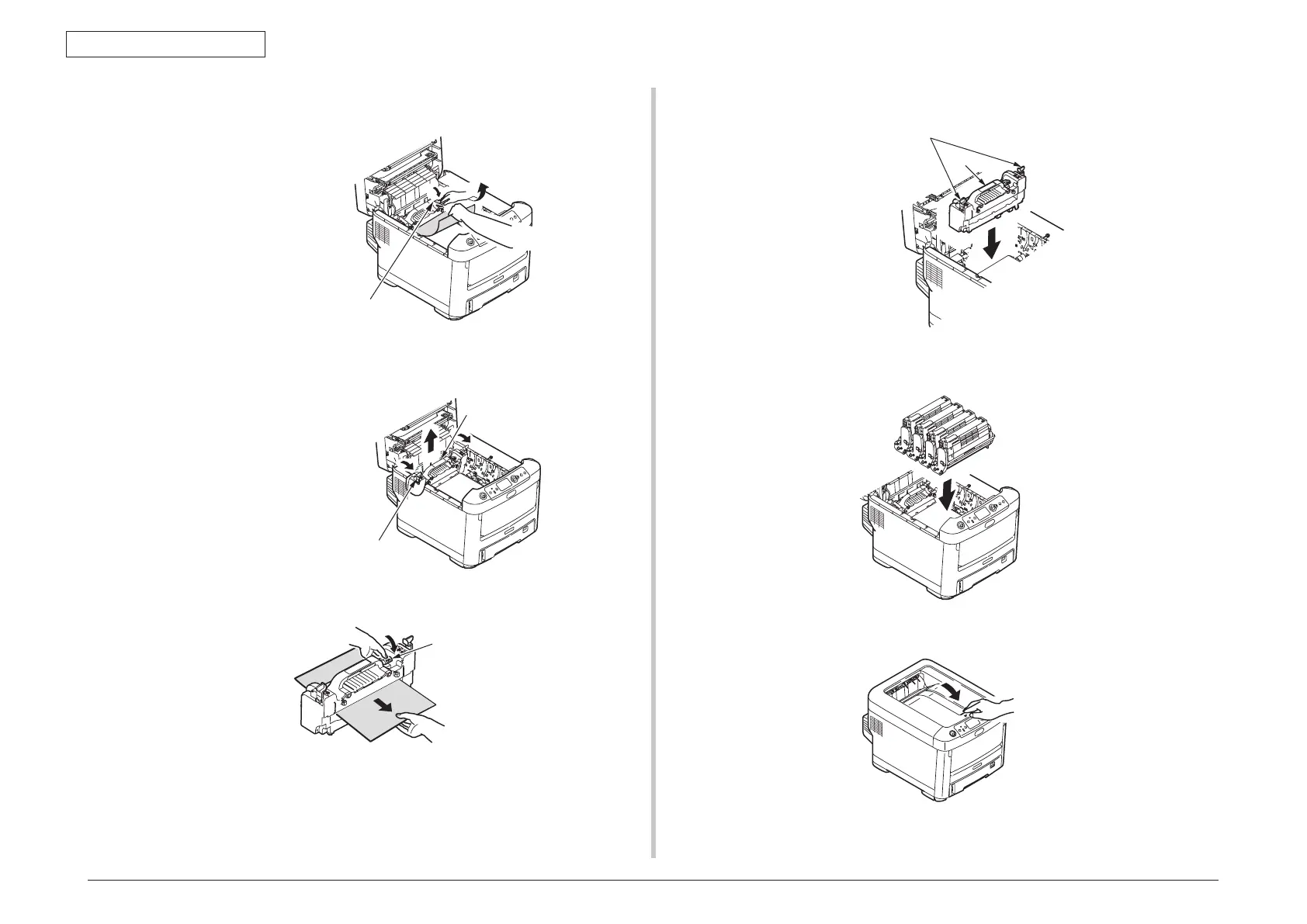

(b) If you do not see the top edge of paper
Pull up the jammed paper slowly while pushing the jam release lever of the fuser
unit.
(c) If paper is jammed in the fuser unit
Pull the lock levers (2 levers) of the fuser unit to remove the fuser unit.
Pull the jammed paper to the front side while pressing the jam release lever.
Set the fuser unit in the printer body and fold backward the lock lever (2
levers).
(6) Set four image dr
ums in the printer.
(7) Close the top cover.
Lock lever of the fuser unit (Blue)
Handle
Lock lever of the fuser unit (Blue)
Handle
Lock lever of the fuser unit (Blue)
