3. Set up
< Ethernet cable connection>
Note! Refer to user’s manual for operation environment.
Prepare for Ethernet cable
Note! The Ethernet cable and Hub is not included in printer.
Provide the Ethernet cable and Hub for special user.
Network interface
connector
Turn the printer and computer OFF.

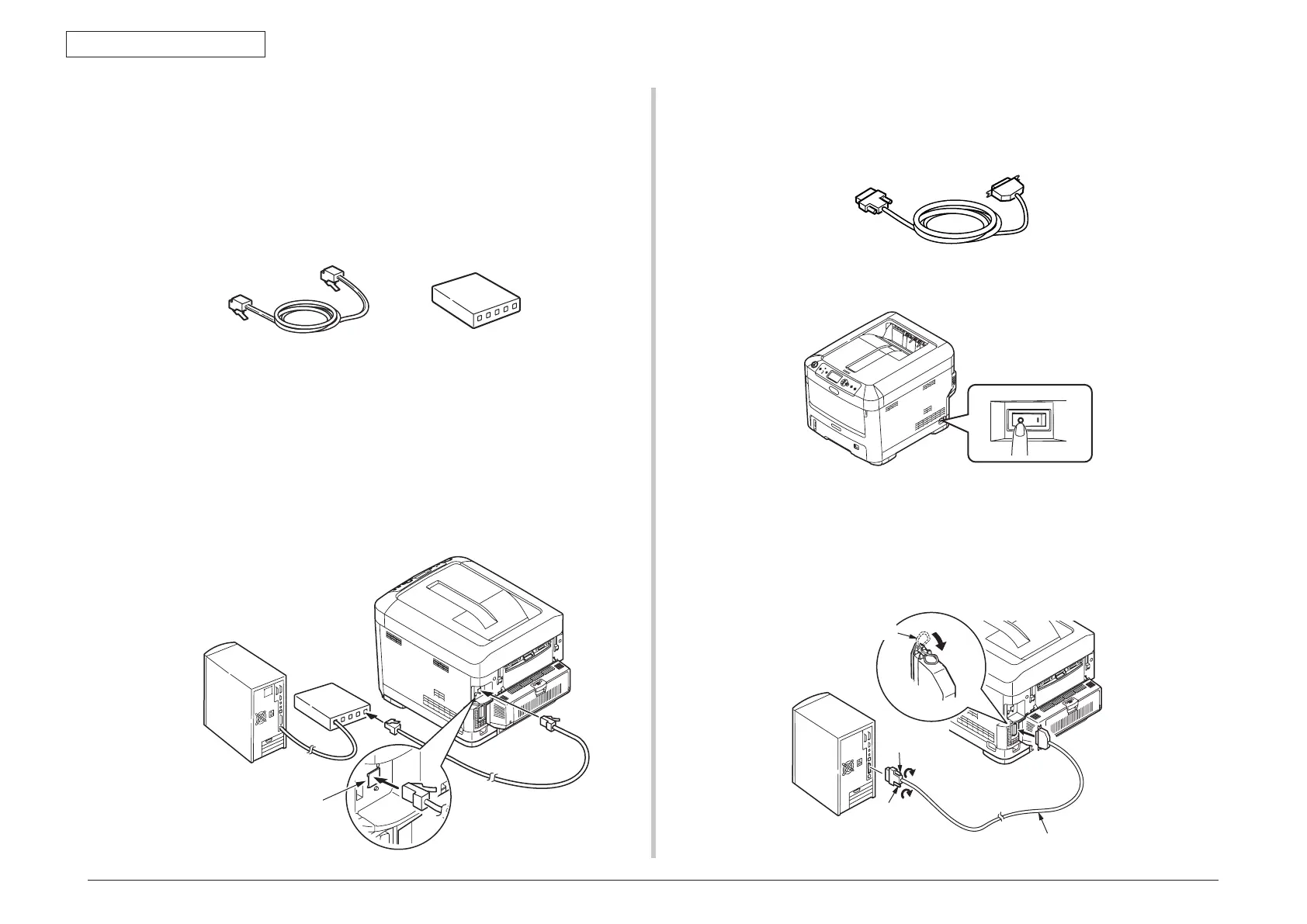

Connect the computer to the printer.
(1) Insert the Ethernet cable into the network interface connector of printer.
(2) Insert the Ethernet cable into Hub.
Memo Refer to user’s manual for setup of printer driver.
<Ethernet cabl> <Hub>
< Parallel connection>
Prepare for Parallel cable
Note! The parallel cable is not included in printer. Provide it for special user.
Turn the printer and computer OFF.
Connect the computer to the printer.
(1) Insert the parallel cable into the parallel interface connector of printer, and Lock
it firmly by metal fittings.
(2) Insert
the parallel cable into the parallel interface connector of computer, and fix
it firmly with screws.
Parallel cable
Screw
Screw
Metal fittings
