Oki C711 - Page 86

44205401TH Rev.1
86 /
Oki Data CONFIDENTIAL

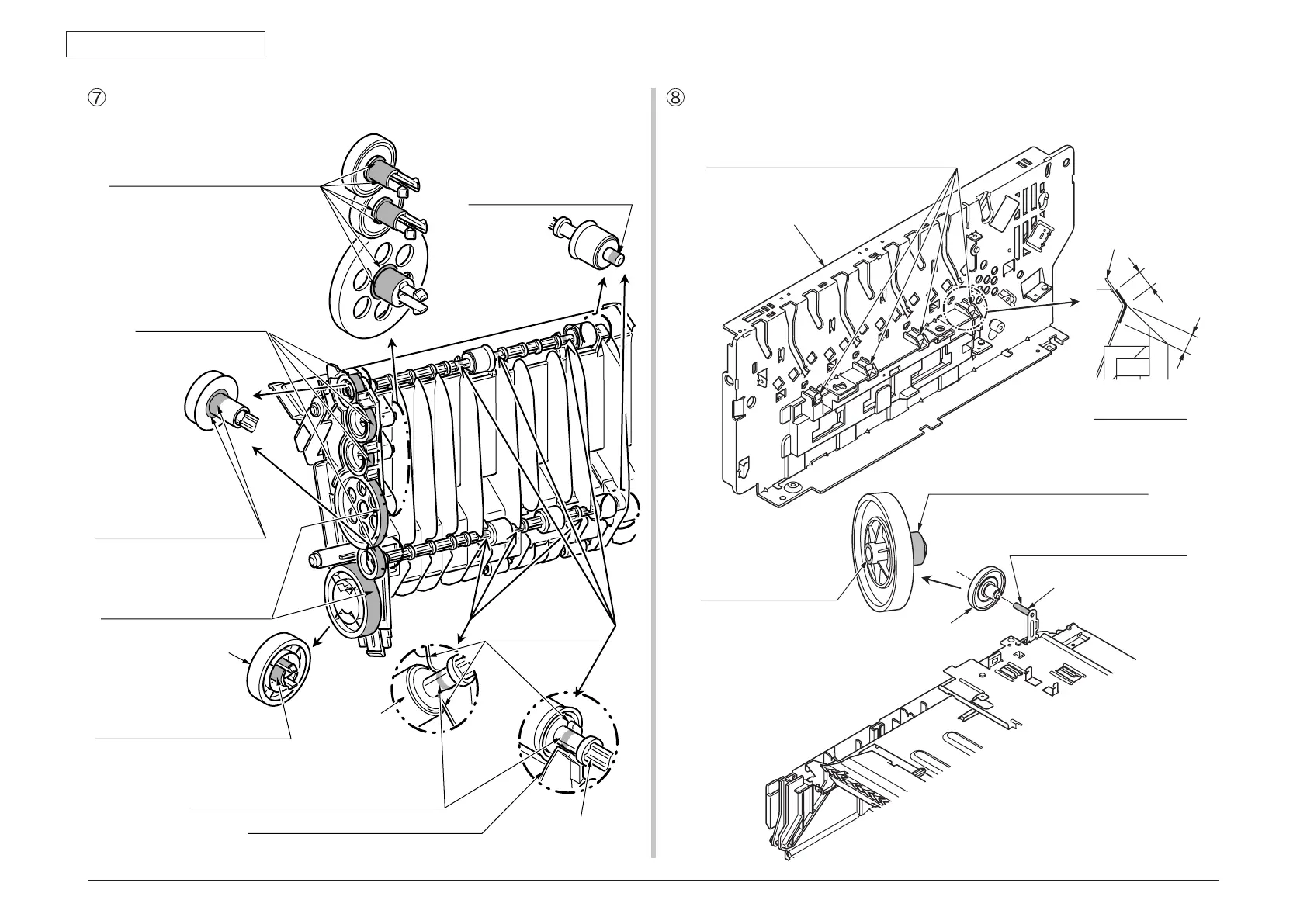

4. Component replacement
44263501PA Guide-Assy. -Eject-U
Shaft-Assy.
-Eject(FU)
Shaft-Assy.-Eject(FD)
Gear-Idle-Exit-Z36
EM-30L Class C
Apply a normal amount of
MOLYKOTE (EM-30L) to surface of
the post (bearing portion)
EM-30L Class C
Apply a normal amount of
MOLYKOTE (EM-30L) to each of
the gear teeth 3 place.
EM-30L Class C
Apply a normal amount of
MOLYKOTE (EM-30L) to
the gear teeth.
EM-30L Class C
Apply a normal amount
of MOLYKOTE (EM-30L)
to surface of the shaft and
flange portions.
Grease prohibition at the
paper running face.
EM-30L Class B
Apply a small amount of MOLYKOTE (EM-30L)
to surface of the shaft.
Grease prohibition at the paper running face.
EM-30L Class C
Apply a normal amount of
MOLYKOTE (EM-30L) to
surface of the shaft.
Grease prohibition at the paper
running face.
EM-30L Class C
Apply a normal amount of MOLYKOTE
(EM-30L) to surface of the post (bearing
portion) and the flange portion.
Grease prohibition at
the paper running face.
Grease prohibition at the paper running face.
-1 44257901PA Printer Unit-PX757
Plate-Contact-TR
3
3
Plate-Driver-PU (Caulking)
Gear-Idle-Belt-Z20Z93
Plate-Assy.-Side-L
EM-30L Class C
Apply a normal amount of MOLYKOTE (EM-30L)
to the tips of terminal.
EM-30L Class C
Apply a normal amount of
MOLYKOTE (EM-30L) to the post.
EM-30L Class C
Apply a normal amount of MOLYKOTE
(EM-30L) to the whole circle of gear teeth.
EM-30L Class C
Apply a normal amount of
MOLYKOTE (EM-30L) to
the end surface.
Application range
of grease
