- 105 -
Replacing Consumables and Maintenance Units
4
4. Maintenance

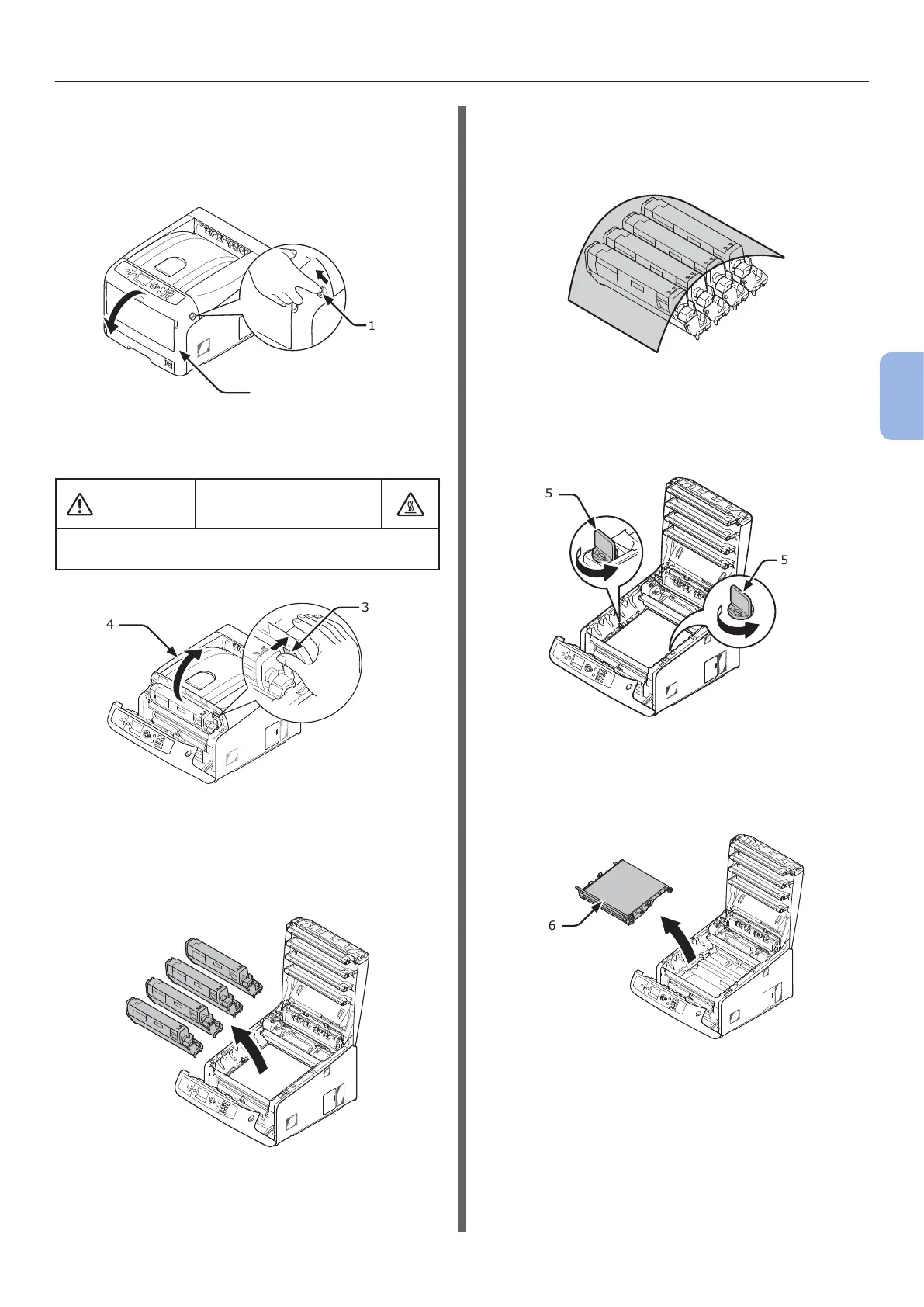

3 Insert your nger into the recess on
the right side of the printer and pull the
front cover open lever (1) to open the
front cover (2) forward.
1
2
4 Press the output tray open button (3)
and open the output tray (4).
CAUTIO
Possible to get
burned.
● The fuser unit is extremely hot. Do not touch
it.
3
4
5 Take all the four image drums out of a
printer, and then place them on a at
surface.
6 Cover the image drums you took out
with paper so that the image drums do
not expose to the light.
7 Turn the blue locks (5) on each side of
the belt unit in direction of the arrow to
unlock.
5
5
8 Remove the belt unit by holding the blue
lever (6).
6
To Next Page
