Oki C834 - Cleaning the Paper Feed Rollers (MP Tray)

- 145 -
7. Maintenance

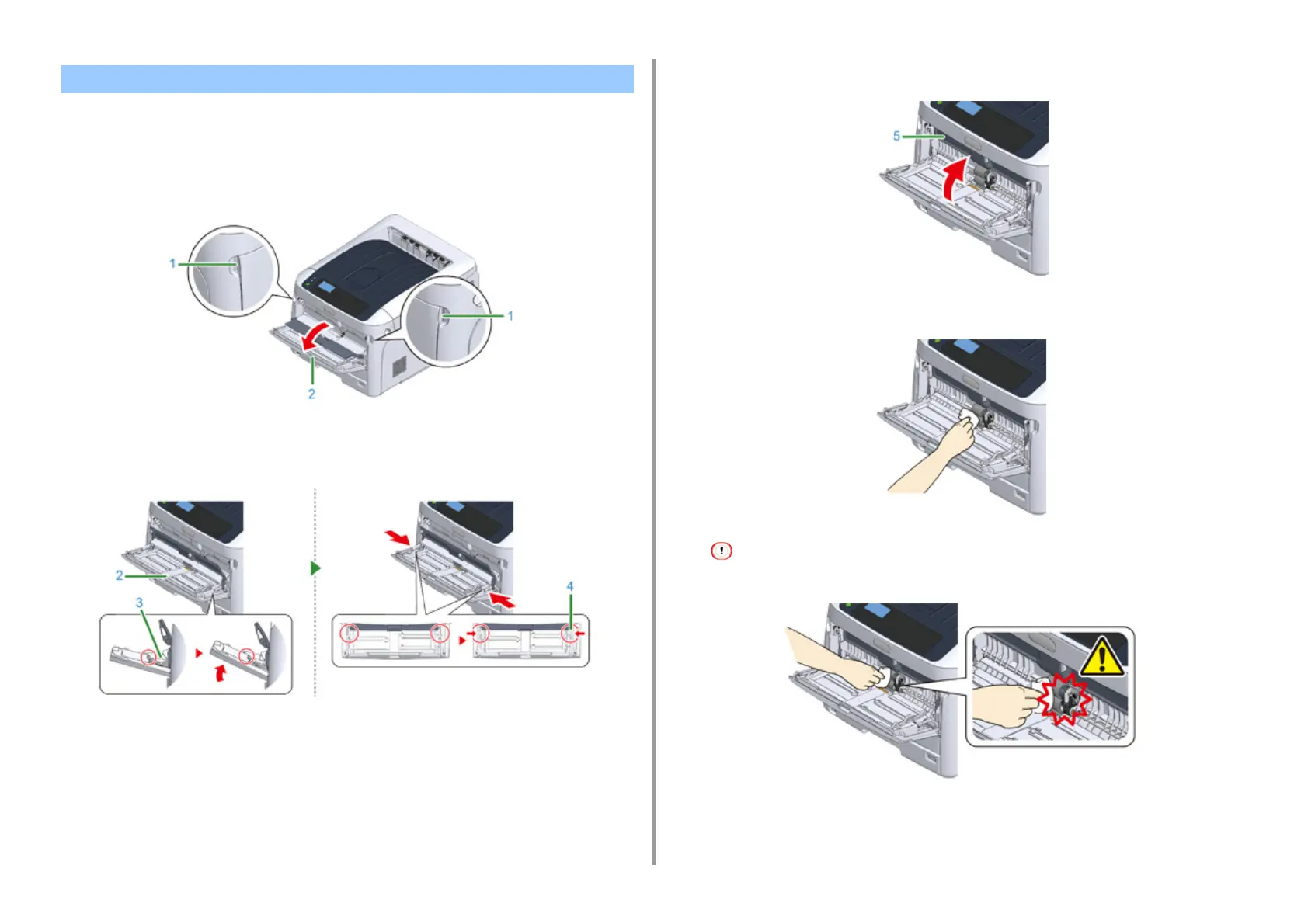

If paper jams occur frequently, clean the paper feed rollers.
1
Open the MP tray (2) forward by inserting your fingers into the front recesses
(1).
2
Slightly lifting the MP tray (2), press the right arm (3) inward, then unlock the
tab (4).
3
In the same manner, slightly lifting the MP tray, press the left arm inward, then
unlock the tab.
4
Open the paper set cover (5) until it touches to the machine body.
5
Wipe paper feed rollers with a wet cloth that has been wrung out well.
• Do not damage the paper end sensor lever when cleaning the rollers.
Cleaning the Paper Feed Rollers (MP Tray)
