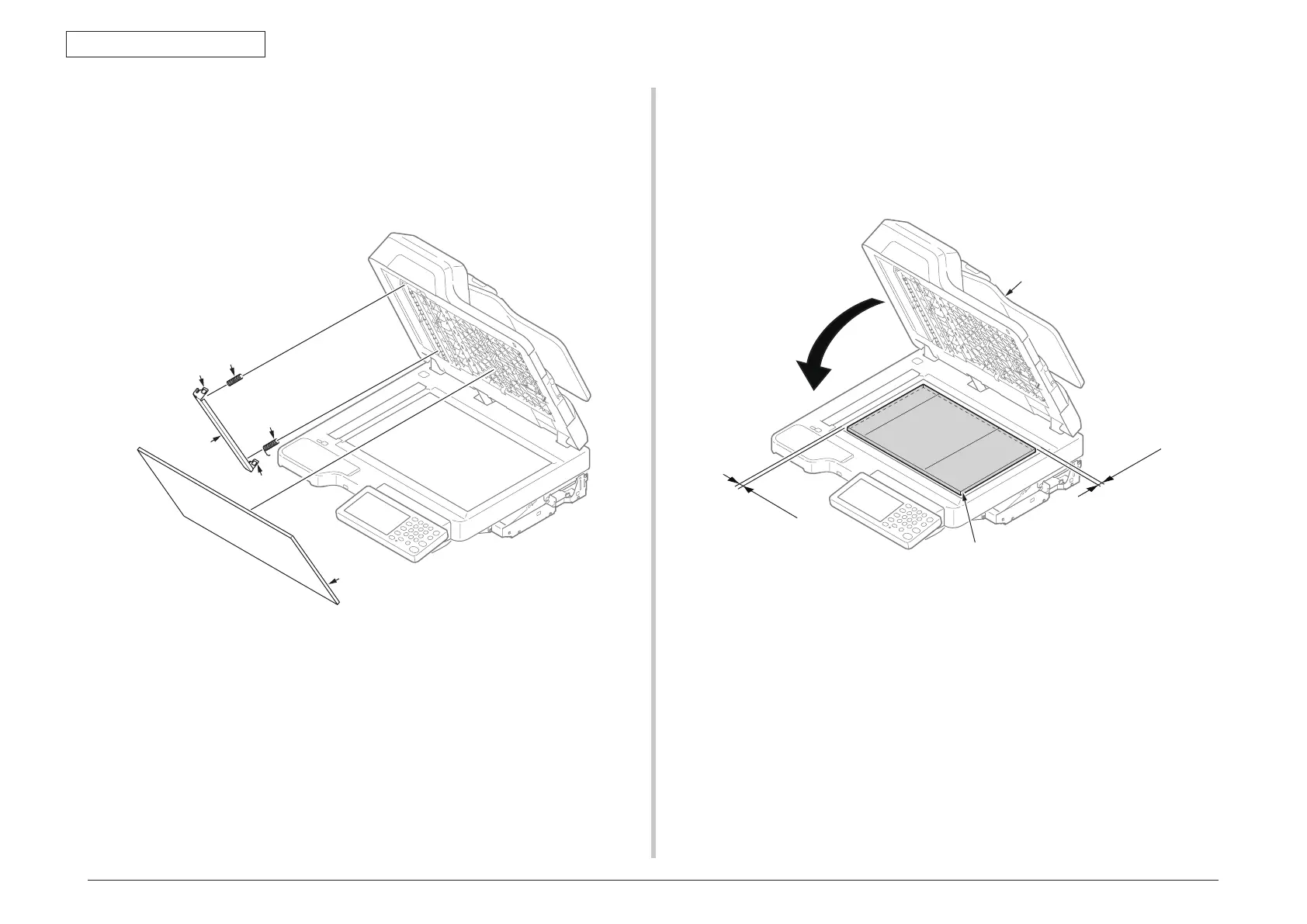

4.2.10.5 Sheet-document/Paper-weight-Assy/Spring-
PW-ADF
(1) Open the ADF-unit.
(2) Remove the sheet-document
①
.
(3) Remove two claws to remove the paper-weight-assy
②
and two spring-PW-ADF
③
.
<Attention of fixing the sheet-document>
(1) Degrease the affix area of ADF-unit.
(2) Remove the release paper.
(3) Set the sheet-document
①
(see the figure below).
(4) Close the ADF-unit.
Claw
Claw
①
②
③
③
ADF-unit
0
.5
mm
0.
5m
m
