45850101TH Rev.1

4-20

Oki Data CONFIDENTIAL

4. REPLACEMENT OF PARTS

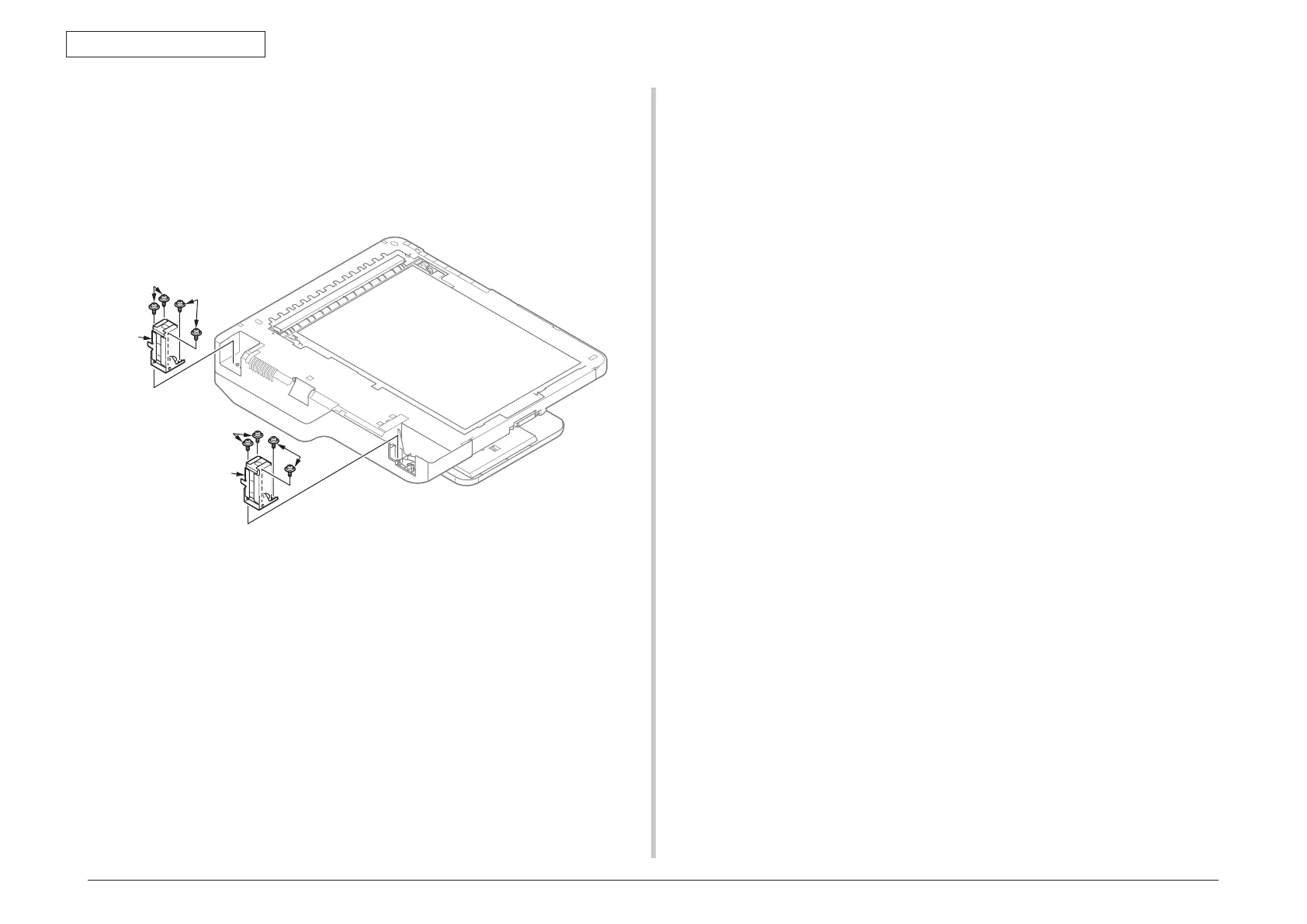

4.2.10.6 Hinge-Assy-L / Hinge-Assy-R

(1) Remove the ADF-unit and turn over it. (See the section 4.2.10.4)

(2) Remove the three screws (black, No:42932708)

①

and remove the hinge-

Assy-L

②

(3) Remove the three screws (black, No:42932708)

③

and remove the hinge-Assy-R

④

②

③

④

①
