45850101TH Rev.1
4-21
Guide-Assy-
Exit(Lower)
Portion A

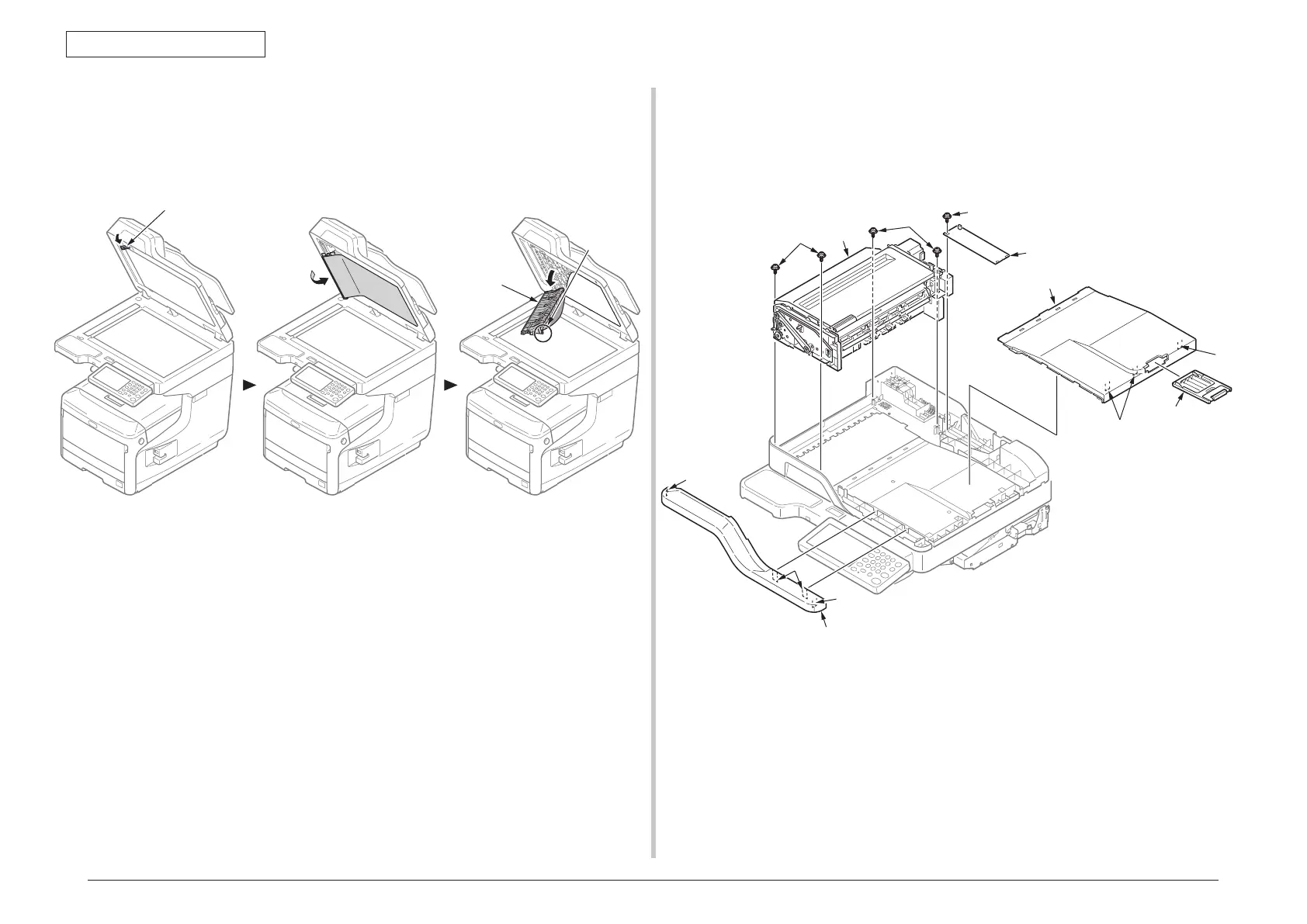

4.2.10.7 ADF-Assy
(1) Open the ADF-unit, and open the Guide-Assy-Exit(Lower) by to rotate the lock
lever. Subsequently, bent the post of the Guide-Assy-Exit(Lower) at portion A, and
release the Guide-Assy-Exit(Lower).
(2) Remove the four claws and remove the Cover-front(Upper)
①
.
(3) Remove a screw (silver, No:42920406)
②
and remove the ADF board
③
.
(4) Remove the four screws (black, No:42932706)
④
and remove the ADF-assy
⑤
.
(5) Remove the three claws and Remove the Cover-stacker(ADF)
⑥
and remove the
Guide-assy-exit(Sub)
⑦
.
Claw
Claw
Claw
Claw
③
④
④
⑤
⑥
⑦
To Next Page
