Installing additional memory > 118

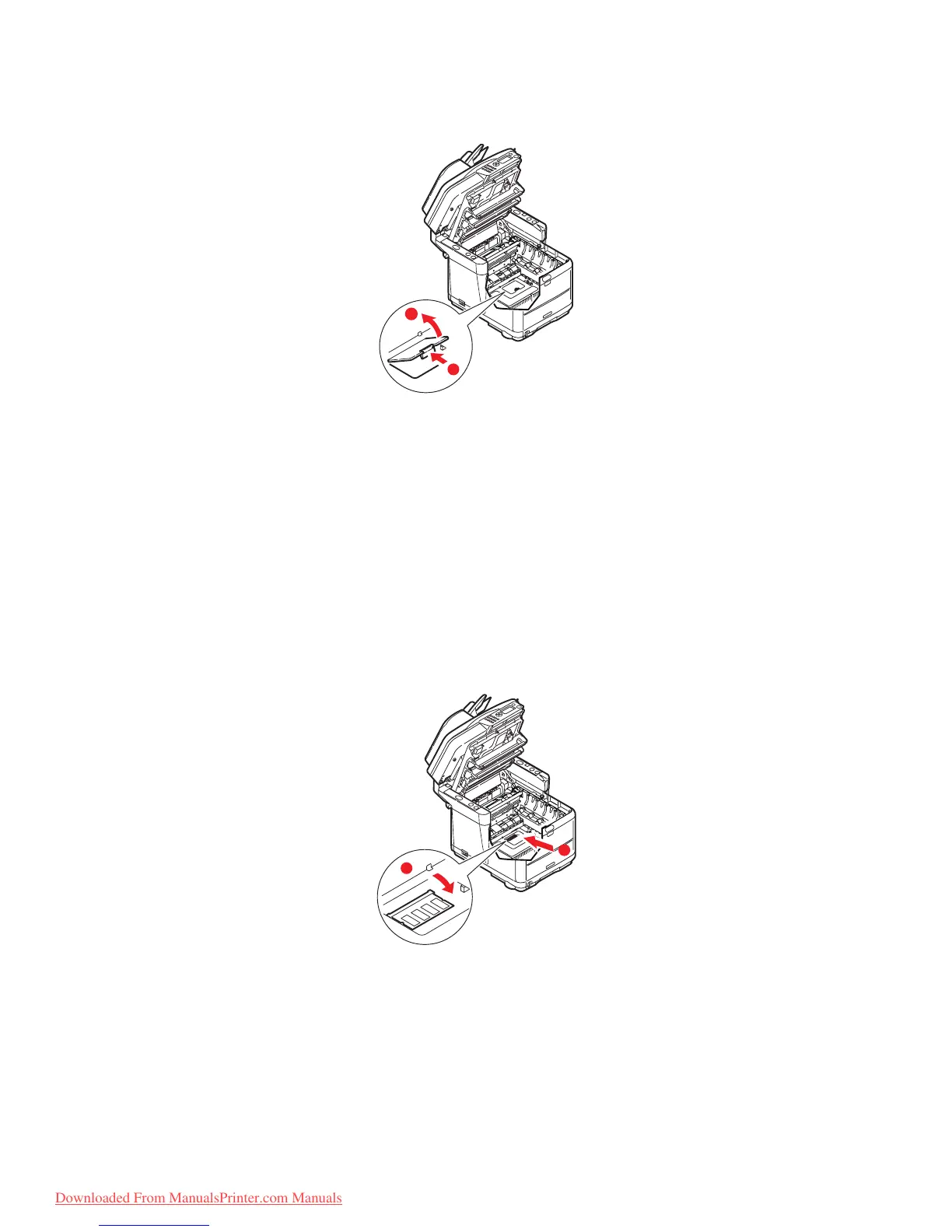

9. Identify the RAM expansion slot in the printer. Unclip the plastic cover to open this
slot.
10. As the RAM expansion slot already contains a memory board (64Mb), this board will
have to be removed before you can install the new one. To remove it proceed as
follows:
(a) Identify the locking clips at each end of the RAM expansion slot.
(b) Push the clips outward and back into the printer. The board will pop out slightly.
(c) Grip the board firmly by its short edges and pull it out of the slot.
(d) Place the removed memory board in the antistatic bag which originally
contained the new memory board.
11. Hold the new memory board by its short edges, so that the edge connector faces in
towards the RAM expansion slot, and the small cutout is closer to the bottom of the
printer.
12. Gently push the board into the RAM expansion slot until it latches in and will not go
any further.
13. Close the RAM expansion slot.
14. Replace the belt and image drum units.
15. Close the printer top cover and press down firmly so that the cover latches closed.
16. Gently lower the scanner on to its supports.
17. Reconnect the AC power cable and switch the MFP on.
