3. Basic Operations

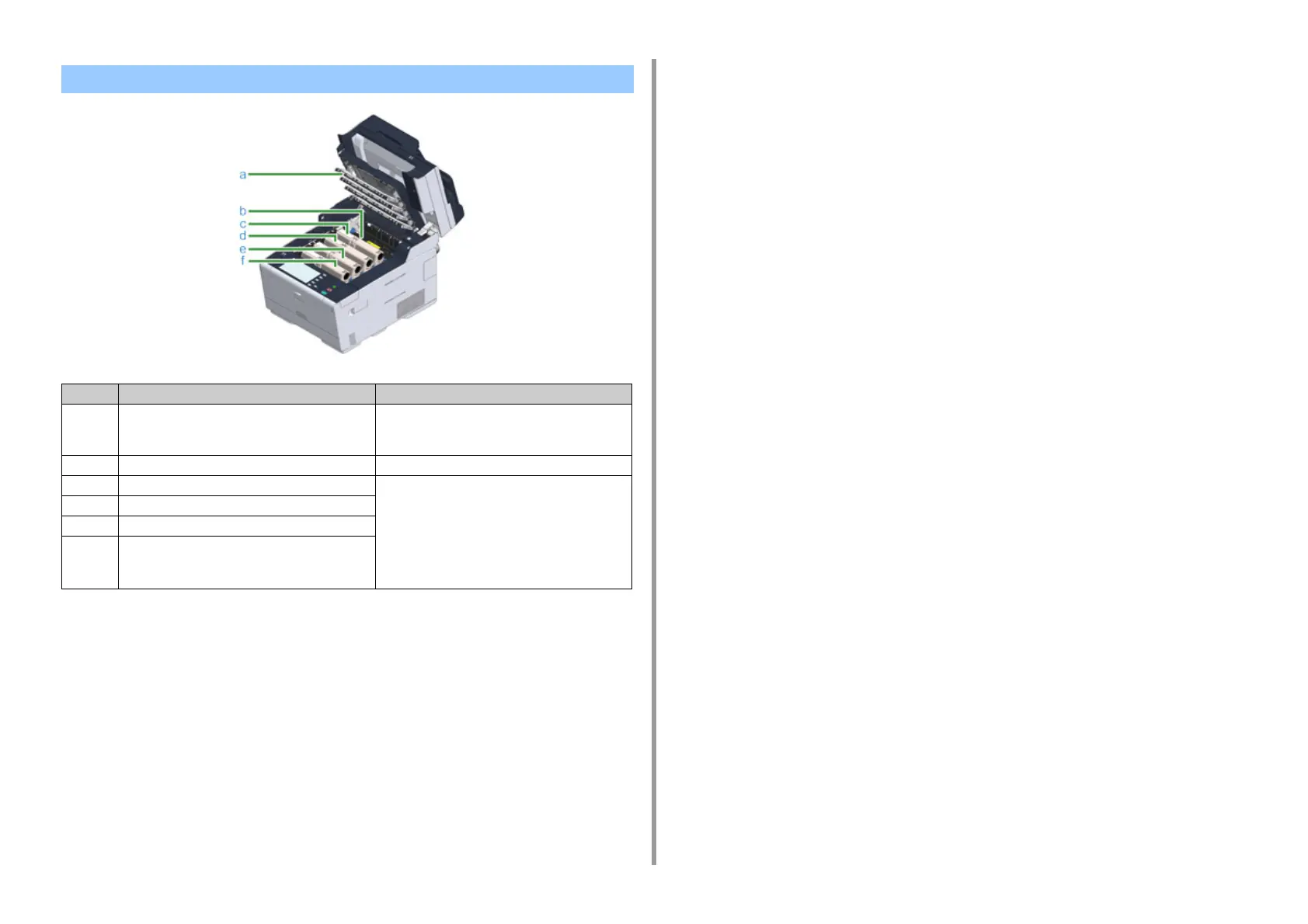

Inside of the machine
Symbol Name Description
a LED head LED which exposes printing part to light. If printouts
have vertical stripes or blurs around letters, clean
the LED head.
b Fuser unit Fix toner on paper.
c Toner cartridge / Image drum (Y: yellow) Toner cartridges contain toner which is used for
printing.
Image drum shapes letters and images.
Toner cartridges and image drums are
consumables.
When the message on the LCD panel prompting you
to change, please replace them accordingly.
d Toner cartridge / Image drum (M: magenta)
e Toner cartridge / Image drum (C: cyan)
f Toner cartridge / Image drum (K: black)
