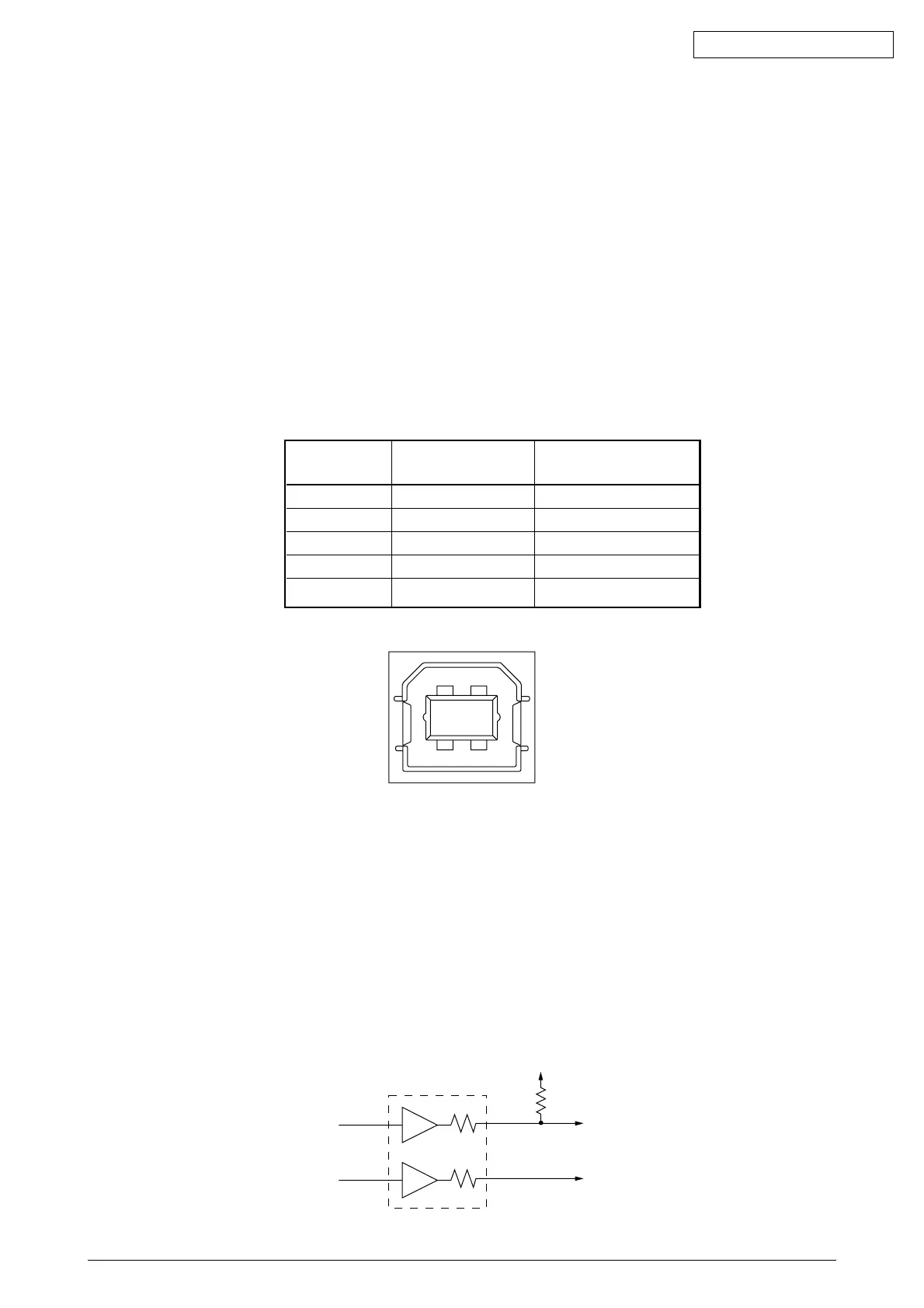

2.1.5 Universal Serial Bus (USB) (at USB Ver.)

Universal Serial Bus Specification Revision 1.0 compliance.

1) Connector

• Printer Side : “B” Receptacle (Upstream Input to the USB Device)

• Cable Side : Series “B” Plug

2) Cable

• Cable Length : Approx 1.8m (A cable must be met USB Spec Rev 1.1 for normal

operation)

Note:

Cable is not supplied.

3) Table of USB I / F signals

Contact Signal Name Typical Wiring

Number Assignment

1 Vbus Red

2 D - White

3 D + Green

4 GND Black

Shell Shield Drain Wire

4) Connector pin arrangement

5) Mode & Class of Device

• Full - speed Driver

• Self - powered Device

6) Data Signaling Rate

• Full - speed function - 12Mb/s ± 0.25%(2500ppm)

7) Receive Buffer

• 2044K Bytes

8) Interface circuit

3.3 V

1.5 k

Ω

Rs = 22

Ω

TxD+

Full-speed

Buffer

TxD-

Other manuals for Oki MICROLINE 320 Turbo

Questions and Answers:

Need help?

Do you have a question about the Oki MICROLINE 320 Turbo and is the answer not in the manual?

General

Color	No
Built-in barcodes	Code 39
Maximum resolution	288 x 144 DPI
Maximum number of copies	6 copies
Media thickness	0.36 - 0.43 mm
Dimensions (WxDxH)	399 x 355 x 117 mm
Networking features	OkiLAN 6120e 10/100 Base-T
Connectivity technology	Wired
Compatible operating systems	Windows Vista, XP, 2000/ME, 98 & NT 40; UNIX, MS-DOS, Novell
Page description languages	Epson FX
Sound pressure level (printing)	52 dB
Mean time between failures (MTBF)	10000 h
Power consumption (typical)	100 W
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
