Oki MICROLINE 320 Turbo Maintenance Manual

42089201TH Rev.4 68 /
Oki Data CONFIDENTIAL
A

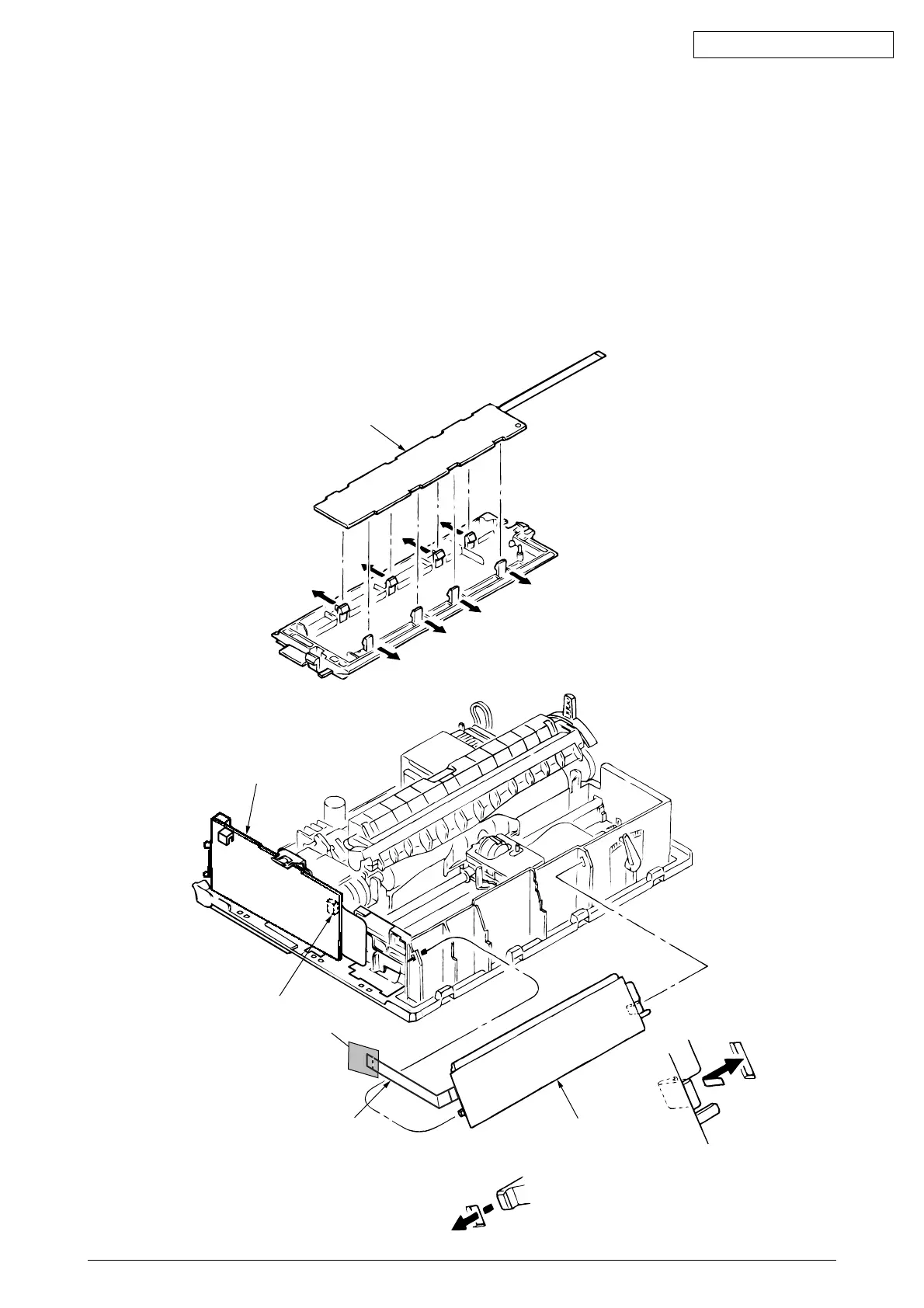

3.3.14 Operation Panel PCB (LEOP)
(1) Remove the upper cover (see 3.3.4 (1) – (5)).
(2) Disconnect the cable 1 from connector 3 of Driver board 2.
(3) Disengage claws on both sides from the frame, and remove the operation panel 4.
(4) Open claws (8 places) and remove the operation panel PCB 5 from the operation panel
4.
(5) To install, follow the removal steps in the reverse order.
Notes on installation
(1) Make sure that there is not any dust or oil on the connector contact section A. If it is
found, wipe it off by alcohol.
5
2
3
1
4

Oki MICROLINE 320 Turbo Specifications

General

Color	No
Built-in barcodes	Code 39
Maximum resolution	288 x 144 DPI
Maximum number of copies	6 copies
Media thickness	0.36 - 0.43 mm
Dimensions (WxDxH)	399 x 355 x 117 mm
Networking features	OkiLAN 6120e 10/100 Base-T
Connectivity technology	Wired
Compatible operating systems	Windows Vista, XP, 2000/ME, 98 & NT 40; UNIX, MS-DOS, Novell
Page description languages	Epson FX
Sound pressure level (printing)	52 dB
Mean time between failures (MTBF)	10000 h
Power consumption (typical)	100 W
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
