Oki MICROLINE 320 Turbo Maintenance Manual

42089201TH Rev.4 64 /
Oki Data CONFIDENTIAL

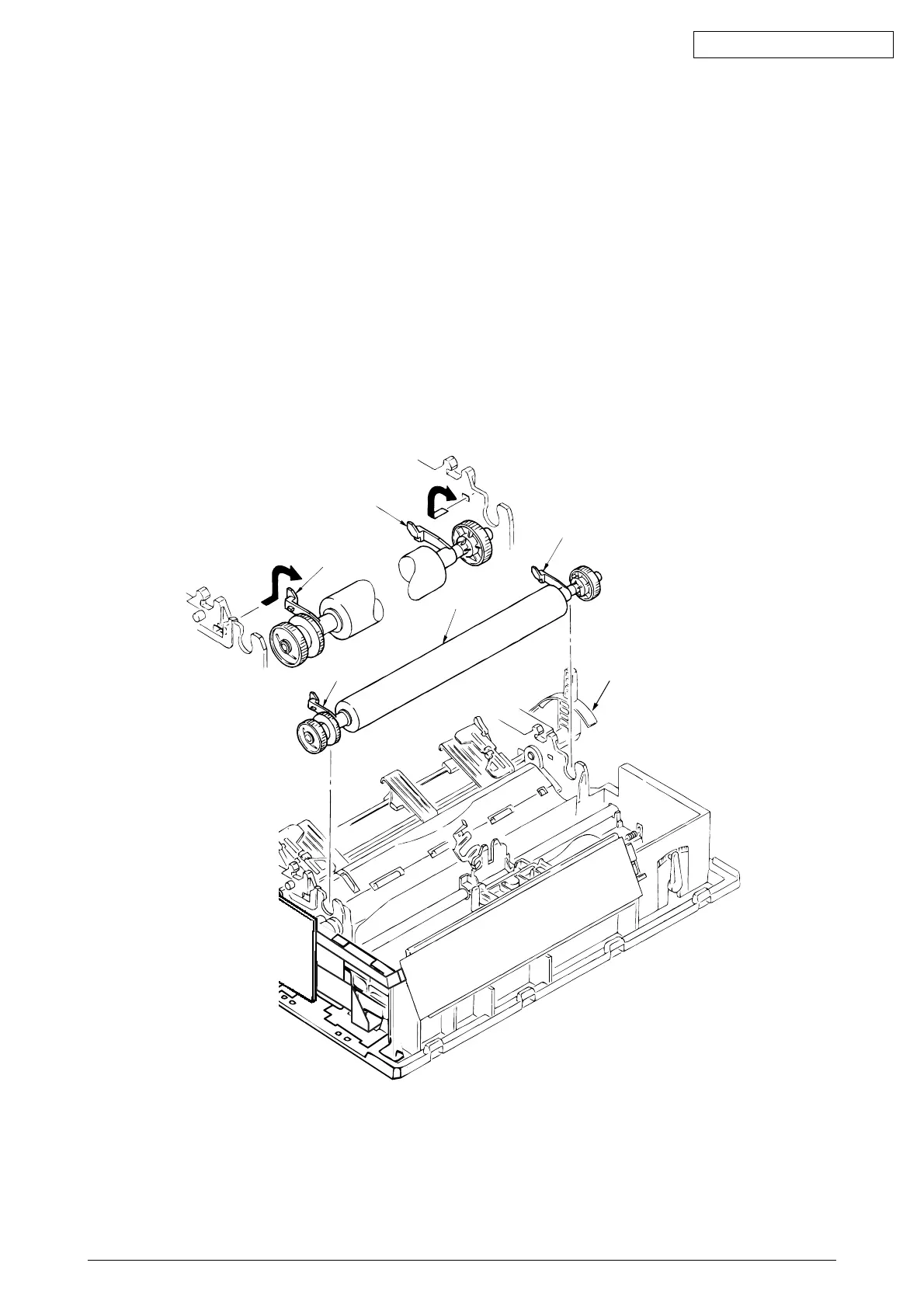

3.3.11 Platen Assy
(1) Remove the printhead (see 3.3.1).
(2) Remove the ribbon protector (see 3.3.2).
(3) Remove the pull-up roller Assy (see 3.3.3).
(4) Remove the upper cover (see 3.3.1 (1) – (5)).
(5) Turn the change lever 1 to the bottom position.
(6) Push in the lock levers 2 on both sides to unlock from the frame, then rotate them upward
by 90°.
(7) Remove the platen Assy 4 from base frame.
(8) To install, follow the removal steps in the reverse order.
1
2
2
2
2
4

Oki MICROLINE 320 Turbo Specifications

General

Color	No
Built-in barcodes	Code 39
Maximum resolution	288 x 144 DPI
Maximum number of copies	6 copies
Media thickness	0.36 - 0.43 mm
Dimensions (WxDxH)	399 x 355 x 117 mm
Networking features	OkiLAN 6120e 10/100 Base-T
Connectivity technology	Wired
Compatible operating systems	Windows Vista, XP, 2000/ME, 98 & NT 40; UNIX, MS-DOS, Novell
Page description languages	Epson FX
Sound pressure level (printing)	52 dB
Mean time between failures (MTBF)	10000 h
Power consumption (typical)	100 W
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
