2.1.8 Operation Panel

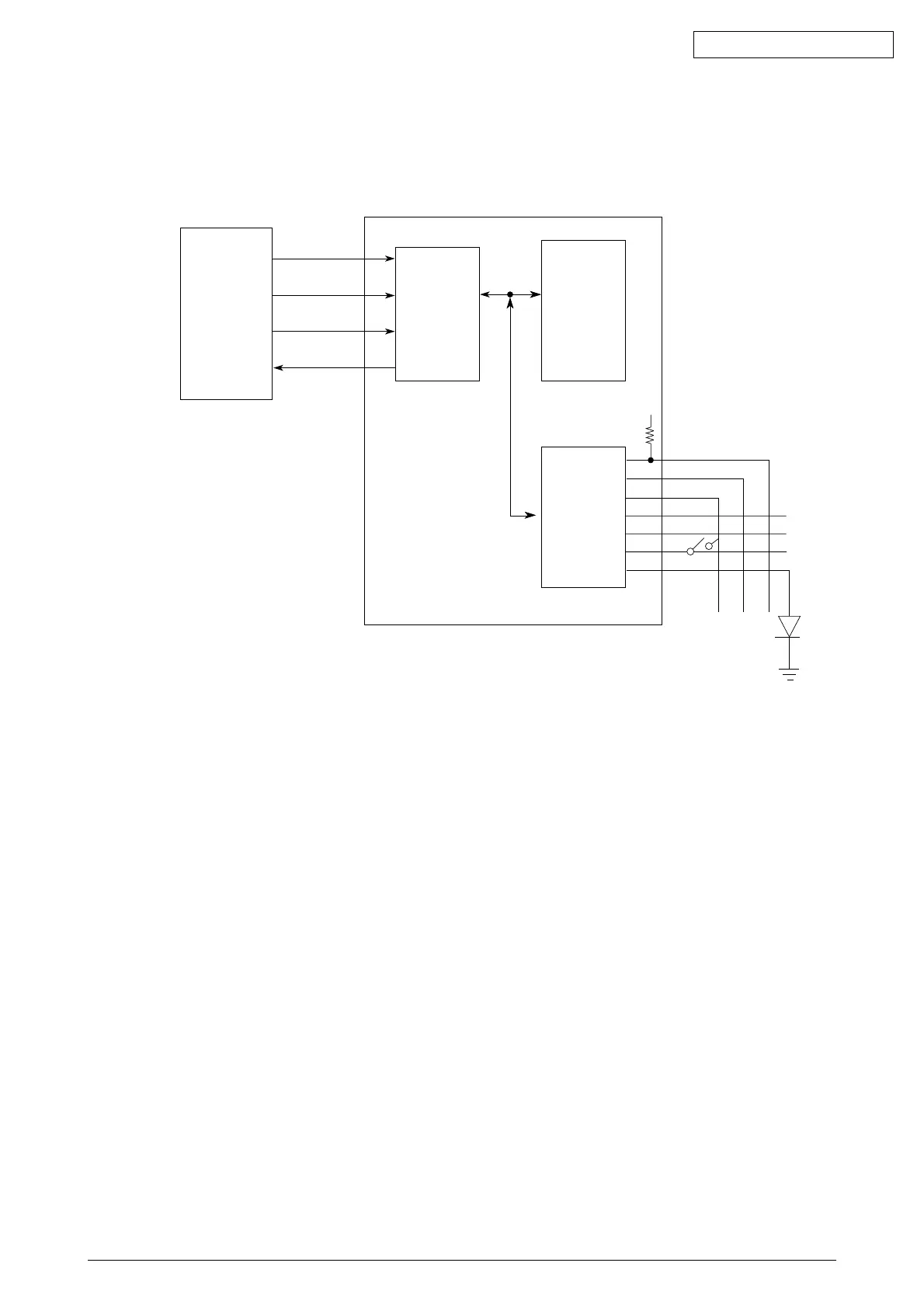

The clock synchronization OPCLK of LSI is used to input the switch data and output the LED

data through the operation panel control LSI (IC1: BU6152S).

LSI

OPTXD

OPCLK

OPCLR-N

OPRXD

OPTD

OPCK

NPA2

OPRD

Command

and Data

latch

LED driver

Switch

controller

+5V

A 2-byte (15 bits + 1 even parity bit) command (OPTXD) is transmitted to the LSI (BU6152S)

in synchronization with the OPCLK signal. The LSI decodes this command and when it is found

to be legal, returns a 2-byte command response back to the LSI which includes data on Switch

information, LED status, receive command ACK/NAK and 1 odd parity bit.

Any transmission errors found cause the command to be reissued after the transmission of the

OPCLR-N signal.
