Oki MICROLINE 320 Turbo Maintenance Manual

42089201TH Rev.4 60 /
Oki Data CONFIDENTIAL
D

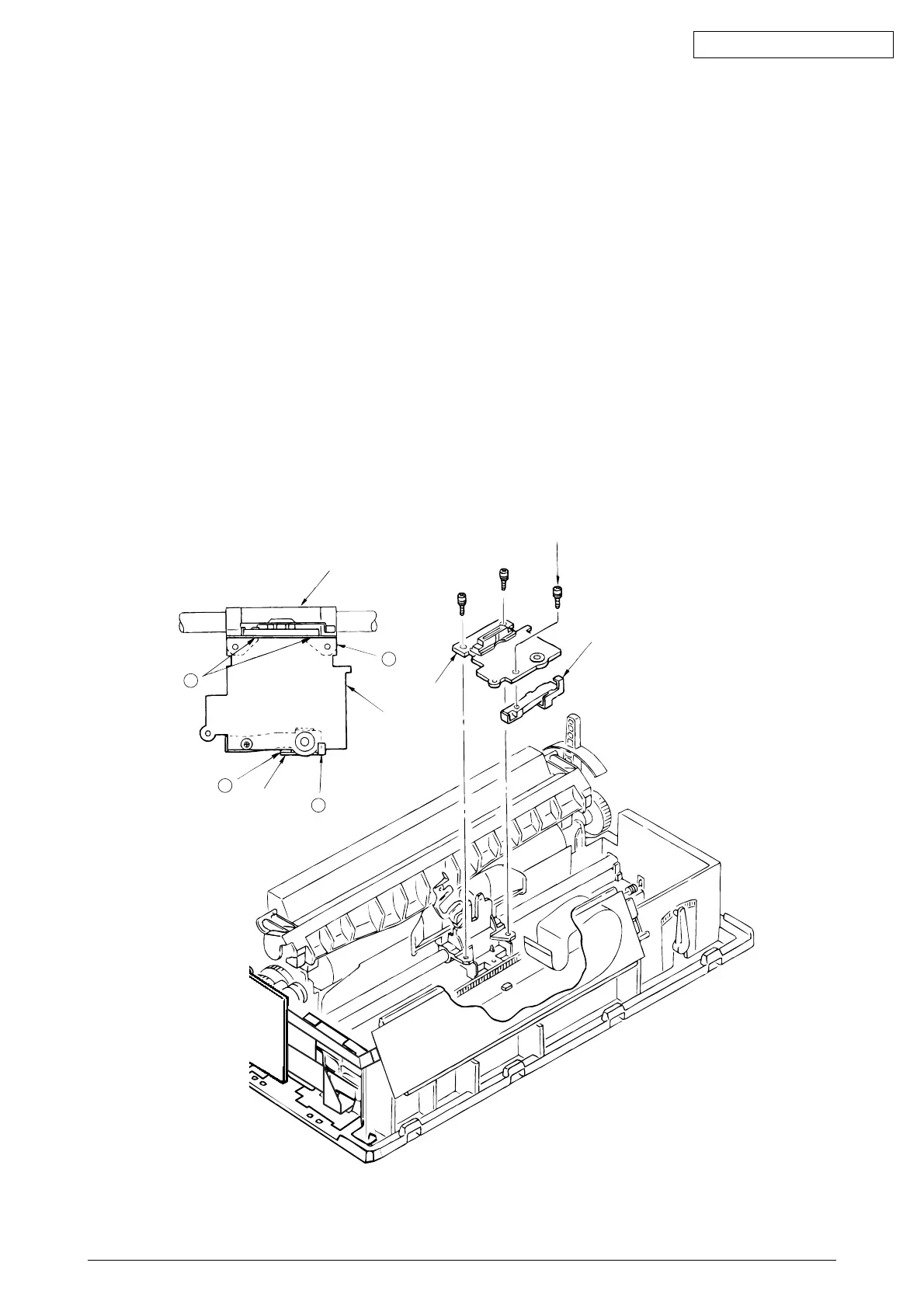

3.3.7 Space Motor, Guide Roller Assy
(1) Remove the printhead (see 3.3.1).
(2) Remove the upper cover (see 3.3.4 (1) – (5)).
(3) Remove the gear case Assy (see 3.3.5).
(4) Remove the PC connector (see 3.3.6).
(5) Remove screw 2, then the guide roller Assy 3 from the space motor 1.
(6) To install, follow the removal steps in the reverse order.
Notes on installation:
(1) Do not touch the terminals of space motor 1. Also, take care to avoid dust or foreign
matters.
(2) When installing the guide roller Assy 3, push portions A and B against the space motor
1.
(3) When installing the space motor 1, align the face C with carriage frame 4 and push portion
D against the frame.
(4) After installation, check and adjust the gap between platen and printhead (see 4-1).
C
1
B
A
3
2
4
1
3

Oki MICROLINE 320 Turbo Specifications

General

Color	No
Built-in barcodes	Code 39
Maximum resolution	288 x 144 DPI
Maximum number of copies	6 copies
Media thickness	0.36 - 0.43 mm
Dimensions (WxDxH)	399 x 355 x 117 mm
Networking features	OkiLAN 6120e 10/100 Base-T
Connectivity technology	Wired
Compatible operating systems	Windows Vista, XP, 2000/ME, 98 & NT 40; UNIX, MS-DOS, Novell
Page description languages	Epson FX
Sound pressure level (printing)	52 dB
Mean time between failures (MTBF)	10000 h
Power consumption (typical)	100 W
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
