Oki MICROLINE 320 Turbo Maintenance Manual

42089201TH Rev.4 52 /
Oki Data CONFIDENTIAL
A
B
C
D
Control/Power
supply board
Upper cover assy
Transformer assy
Operation panel board
Printhead
Printer unit
Driver board
3.3 Disassembly/Reassembly Procedure
This section explains the assembly replacement procedures according to the following disas-
sembly system.
[Parts Layout]

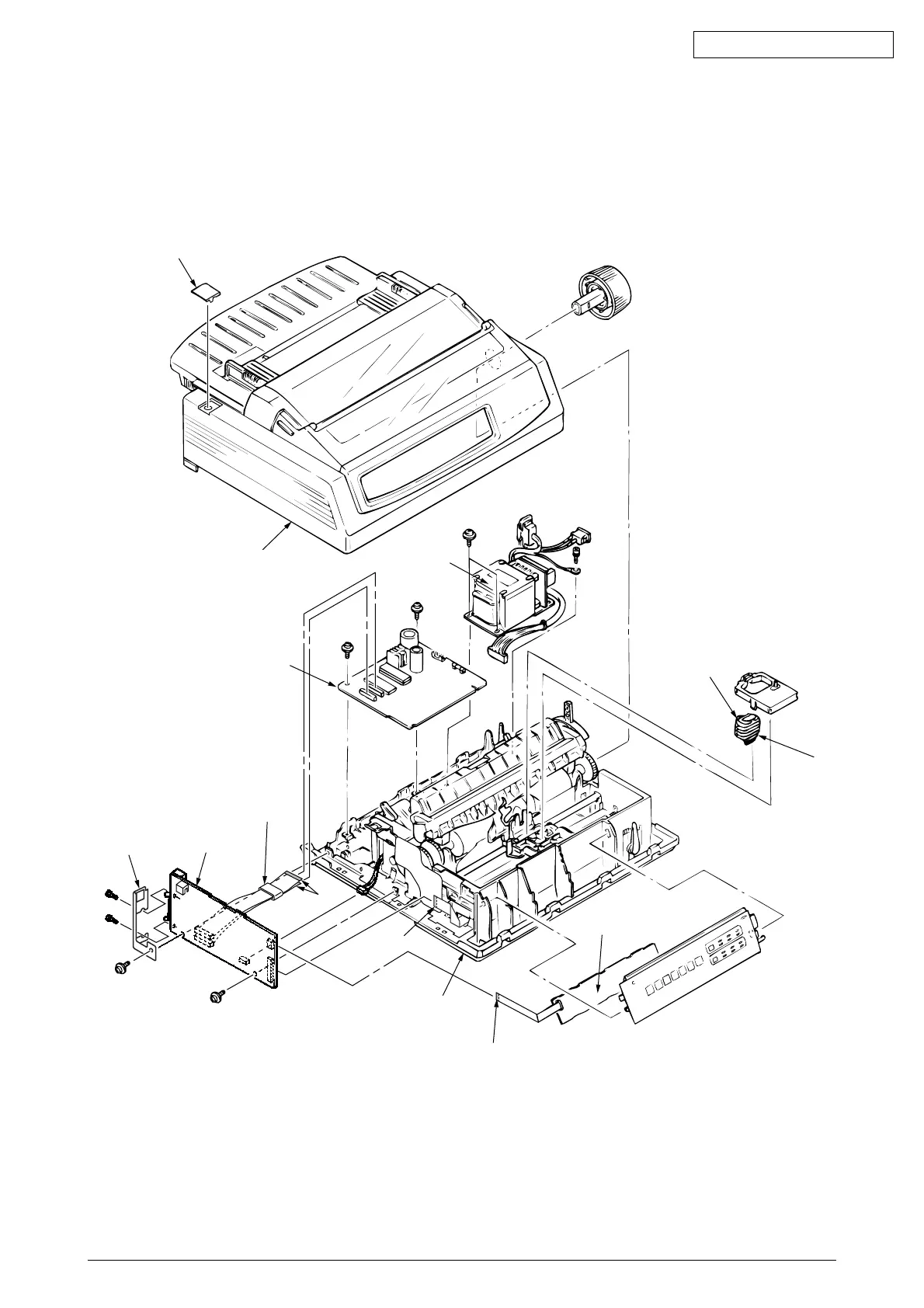

Figure 3-1 Printer unit
CSF connector cover(at USB Ver.)
(at USB Ver.)
(at USB Ver.)

Oki MICROLINE 320 Turbo Specifications

General

Color	No
Built-in barcodes	Code 39
Maximum resolution	288 x 144 DPI
Maximum number of copies	6 copies
Media thickness	0.36 - 0.43 mm
Dimensions (WxDxH)	399 x 355 x 117 mm
Networking features	OkiLAN 6120e 10/100 Base-T
Connectivity technology	Wired
Compatible operating systems	Windows Vista, XP, 2000/ME, 98 & NT 40; UNIX, MS-DOS, Novell
Page description languages	Epson FX
Sound pressure level (printing)	52 dB
Mean time between failures (MTBF)	10000 h
Power consumption (typical)	100 W
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
