Oki MICROLINE 320 Turbo Maintenance Manual

42089201TH Rev.4 57 /
Oki Data CONFIDENTIAL
1
3
4
5
2
A

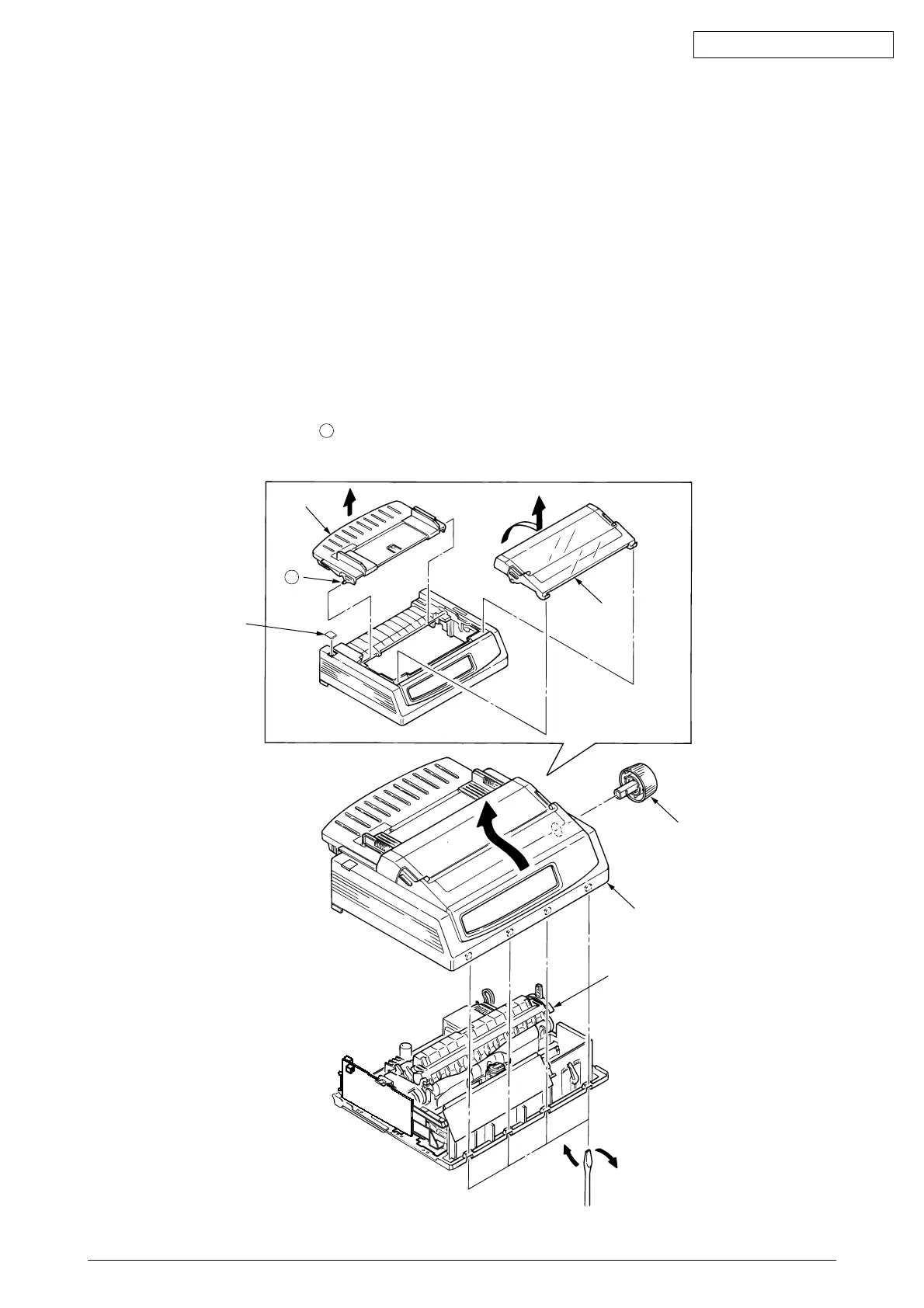

3.3.4 Upper Cover Assy, Access Cover Assy and Sheet Guide Assy
(1) Pull off the platen knob 1.
(2) Turn the change lever 2 toward the bottom position.
(3) Insert a flat-blade screwdriver into grooves (5 places) (4 places for narrow type) of frame
and twist to disengage claws of upper cover 3.
(4) Raise the front side of upper cover Assy 3 and shift toward the rear to disengage claws
(6 places) (5 places for narrow type) of frame.
(5) Raise the upper cover Assy 3 to remove.
(6) Open the access cover Assy 4 toward the front to remove.
(7) Lift up the sheet guide Assy 5 to remove.
(8) To install, follow the removal steps in the reverse order.
Remark on assembly:
Match the posts A at the both sides of the Sheet Guide 5 with the arrow marks on
the upper cover. Push the Guide into the Cover.
(at USB Ver.)

Oki MICROLINE 320 Turbo Specifications

General

Color	No
Built-in barcodes	Code 39
Maximum resolution	288 x 144 DPI
Maximum number of copies	6 copies
Media thickness	0.36 - 0.43 mm
Dimensions (WxDxH)	399 x 355 x 117 mm
Networking features	OkiLAN 6120e 10/100 Base-T
Connectivity technology	Wired
Compatible operating systems	Windows Vista, XP, 2000/ME, 98 & NT 40; UNIX, MS-DOS, Novell
Page description languages	Epson FX
Sound pressure level (printing)	52 dB
Mean time between failures (MTBF)	10000 h
Power consumption (typical)	100 W
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
