2.2.4 Ribbon Drive (See Figure 2-6.)
The ribbon driver mechanism moves the ribbon in synchronization with the space motor operation.
The ribbon drive mechanism consist of the following items:
(a) Ribbon drive gear assembly
(b) Ribbon gear (space motor)
(c) Ribbon cartridge
(1) Ribbon cartridge
An endless ribbon with a single direction feed is used. Ink is supplied from an ink tank,
which is built in to the ribbon cartridge.
(2) Ribbon feed operation
When the space motor is activated, the ribbon gear rotates. The rotation is transmitted
via the ribbon drive gear assembly to the drive gear in the ribbon cartridge, thus moving
the ribbon.
The feed direction of the ribbon is maintained by switching the rotational direction of the
gears in the ribbon drive gear assembly. This ensures ribbon movement when bidirectional
printing is used.
Ribbon cartridge
Drive gear
Ink tank

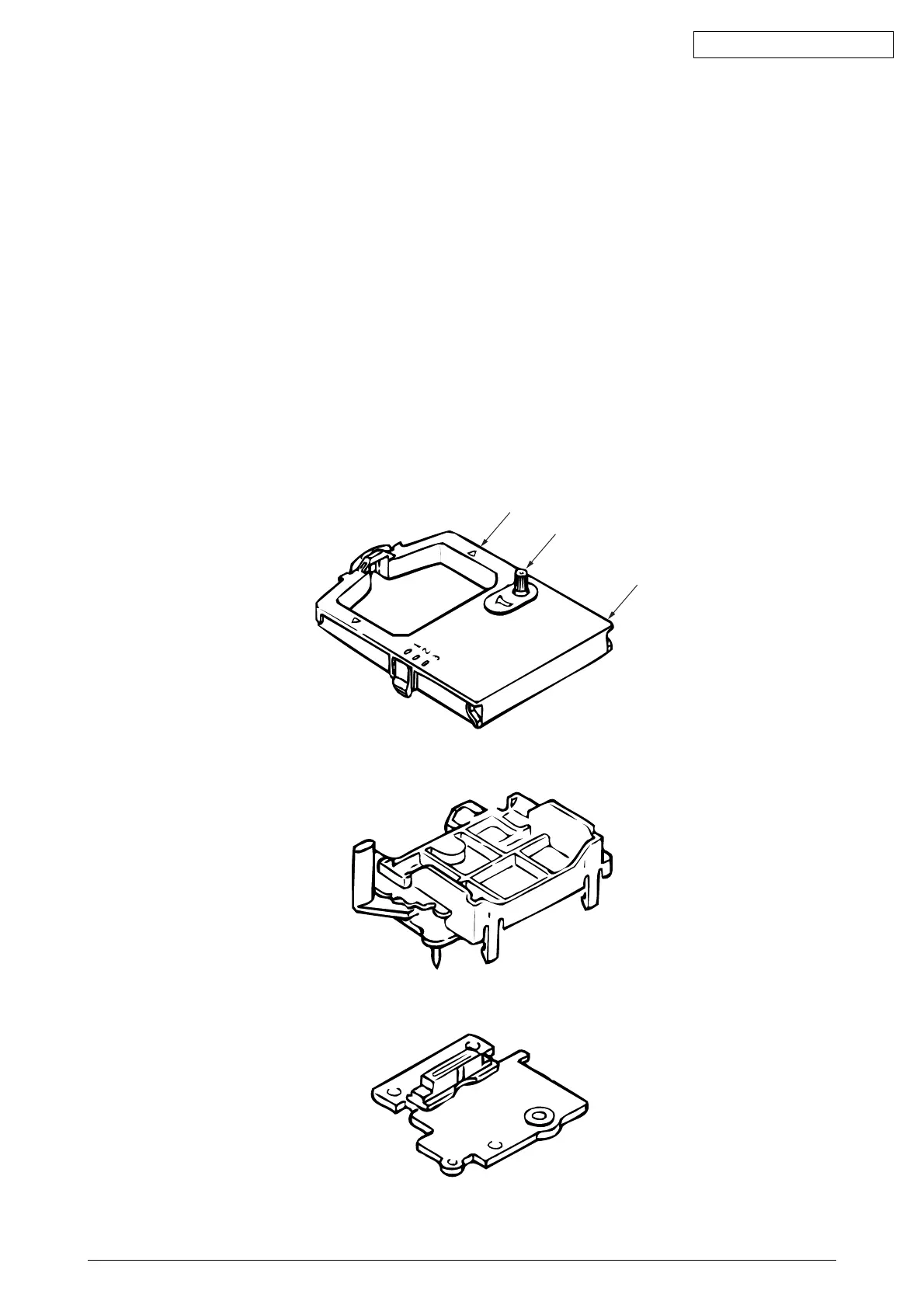

Figure 2-6

Oki MICROLINE 320 Turbo Specifications

General

Color	No
Built-in barcodes	Code 39
Maximum resolution	288 x 144 DPI
Maximum number of copies	6 copies
Media thickness	0.36 - 0.43 mm
Dimensions (WxDxH)	399 x 355 x 117 mm
Networking features	OkiLAN 6120e 10/100 Base-T
Connectivity technology	Wired
Compatible operating systems	Windows Vista, XP, 2000/ME, 98 & NT 40; UNIX, MS-DOS, Novell
Page description languages	Epson FX
Sound pressure level (printing)	52 dB
Mean time between failures (MTBF)	10000 h
Power consumption (typical)	100 W
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
