Oki MICROLINE 320 Turbo Maintenance Manual

42089201TH Rev.4 19 /
Oki Data CONFIDENTIAL
2.1.6 Print Control
Print data is transmitted as parallel data (HEAD1~HEAD9) from LSI to print head. LSI generates
print timing and drive time.

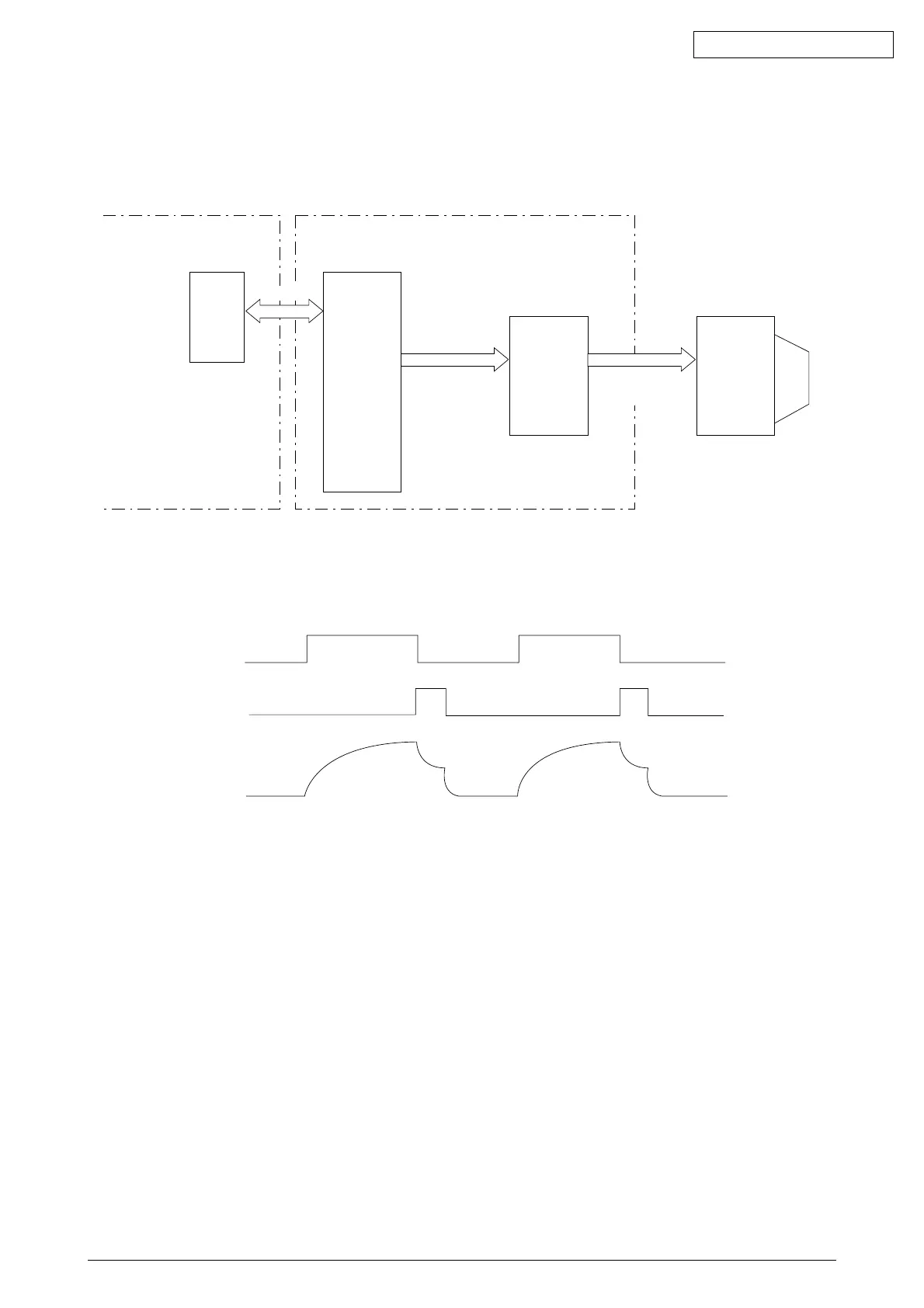

HEAD DRIVE TIMING CHART
DT1
DT2
HEAD
DRIVE CURRENT
Print Data
MPU LSI
DRIVER
HEAD1-N~
HEAD9-N
Print Data
Print Head
Control/Power Supply Board
A/D bus
HEAD1~
HEAD9
Driver Board

Oki MICROLINE 320 Turbo Specifications

General

Color	No
Built-in barcodes	Code 39
Maximum resolution	288 x 144 DPI
Maximum number of copies	6 copies
Media thickness	0.36 - 0.43 mm
Dimensions (WxDxH)	399 x 355 x 117 mm
Networking features	OkiLAN 6120e 10/100 Base-T
Connectivity technology	Wired
Compatible operating systems	Windows Vista, XP, 2000/ME, 98 & NT 40; UNIX, MS-DOS, Novell
Page description languages	Epson FX
Sound pressure level (printing)	52 dB
Mean time between failures (MTBF)	10000 h
Power consumption (typical)	100 W
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
