Oki MICROLINE 320 Turbo Maintenance Manual

42089201TH Rev.4 81 /
Oki Data CONFIDENTIAL
ItemNo. Specification Drawing Adjustment method
4–2
1±0.5 Confirm followings.
(1) When the change
lever is set at
Friction position,
the gap between
the platen and the
paper pan at the
rear side shall be
1±0.5mm.
(2) When the change
lever is set at
Rear or Bottom
position, the gap
between the pla-
ten and the paper
pan at the front
side shall be
1±0.5 mm.
4–3 Confirm followings.
(1) When the change
lever is set at
Friction position,
all the pressure
rollers shall be
pressed to the
platen.
(2) When the change
lever is set at
Rear or Bottom
position, the gap
between the pla-
ten and the pres-
sure roller at the
rear side shall be
3mm. The front
pressure rollers
shall be pressed
to the platen.

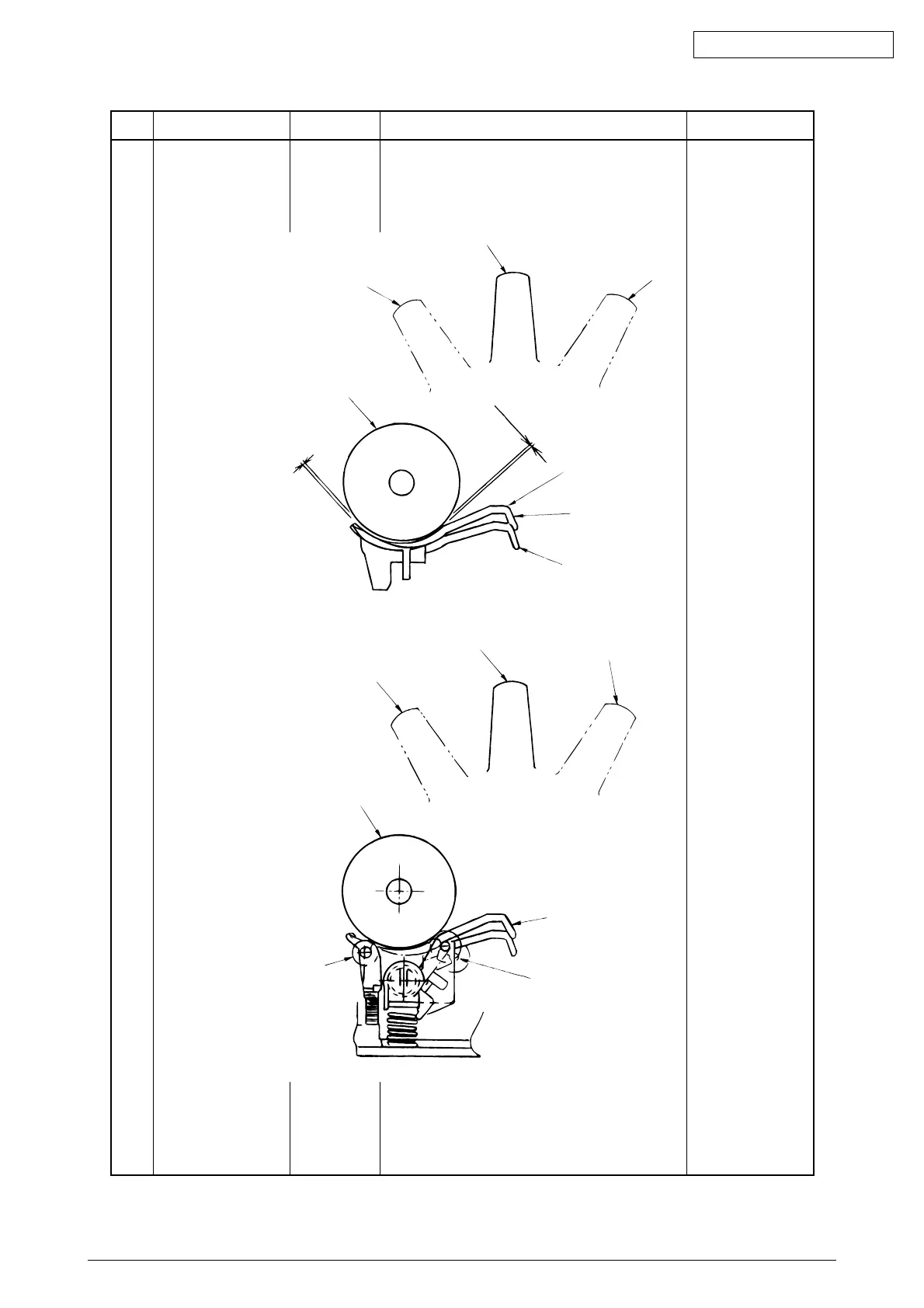

Gap between the
platen and the paper
pan
Gap between the
platen and the pressure
roller
Rear
Bottom
Change lever
Platen
1±0.5
1±0.5
(At friction)
(Rear,
Bottom
position)
Paper pan
Friction
position
Rear, Bottom
position
Bottom
Change lever
(Center friction)
Rear
Paper pan
Pressure roller
Front pressure
roller
Platen

Oki MICROLINE 320 Turbo Specifications

General

Color	No
Built-in barcodes	Code 39
Maximum resolution	288 x 144 DPI
Maximum number of copies	6 copies
Media thickness	0.36 - 0.43 mm
Dimensions (WxDxH)	399 x 355 x 117 mm
Networking features	OkiLAN 6120e 10/100 Base-T
Connectivity technology	Wired
Compatible operating systems	Windows Vista, XP, 2000/ME, 98 & NT 40; UNIX, MS-DOS, Novell
Page description languages	Epson FX
Sound pressure level (printing)	52 dB
Mean time between failures (MTBF)	10000 h
Power consumption (typical)	100 W
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
