42089201TH Rev.4 84 /

Oki Data CONFIDENTIAL

ItemNo. Specification Drawing Adjustment method

4–6

To confirm:

The idle gear of the

LF motor and the

platen gear (L) and

the bias gear of the

platen shall be in

mesh in such way that

the platen gear (L)

and the bias gear

rotate against each

other to pinch the

teeth of idle gear.

The idle gear stays in

mesh with the platen

gear (L) and the bias

gear and not locked.

The bias gear and the

platen gear shall be

staggered by one

teeth as shown in the

drawing.

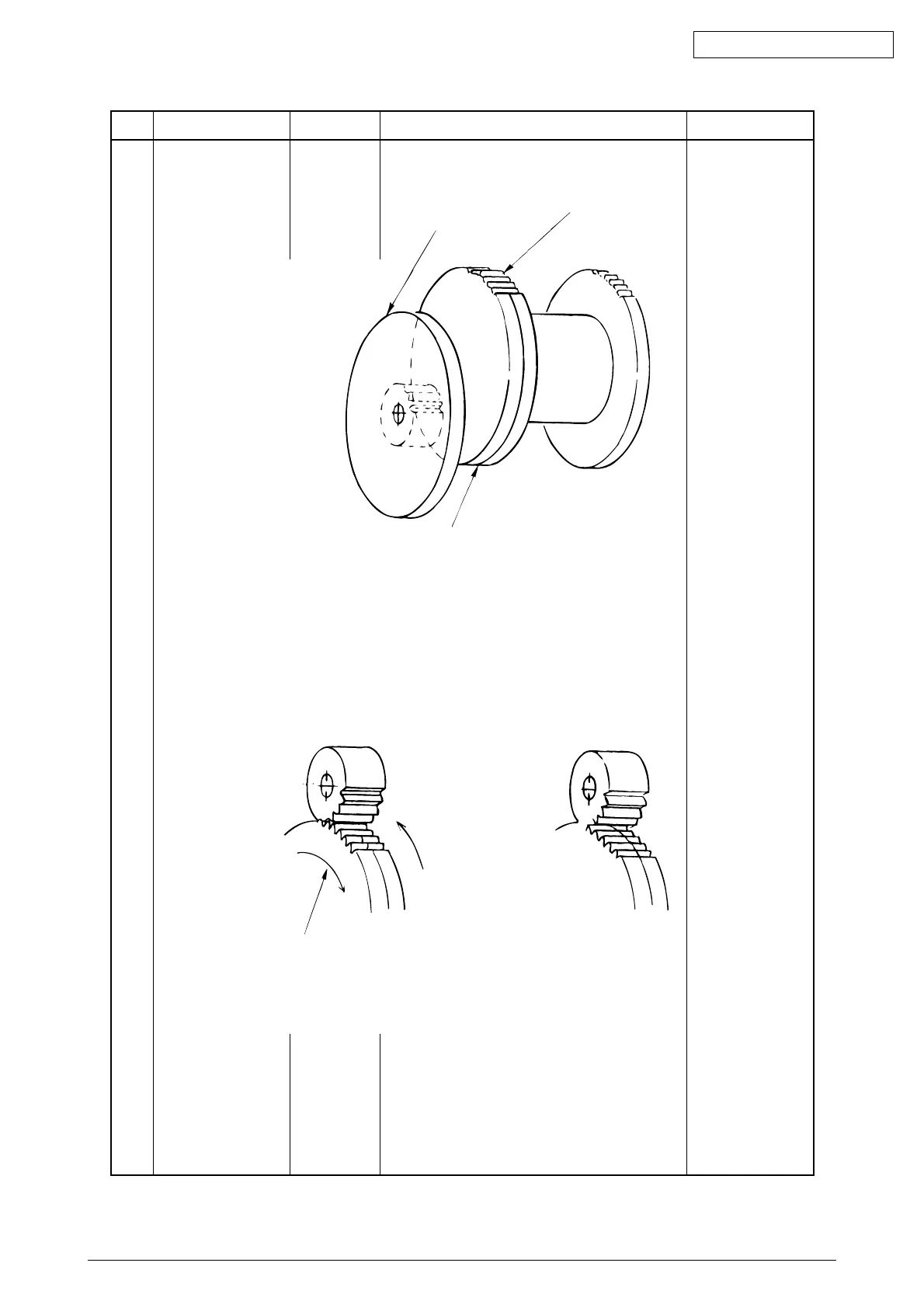

Engagement of the

double gear and the LF

motor idle gear of the

Platen Assy.

LF Motor

idle gear

Platen gear (L)

Bias gear

Tension

Not good

(Locked)

Good
